Datavideo HS-1600T User Manual

16

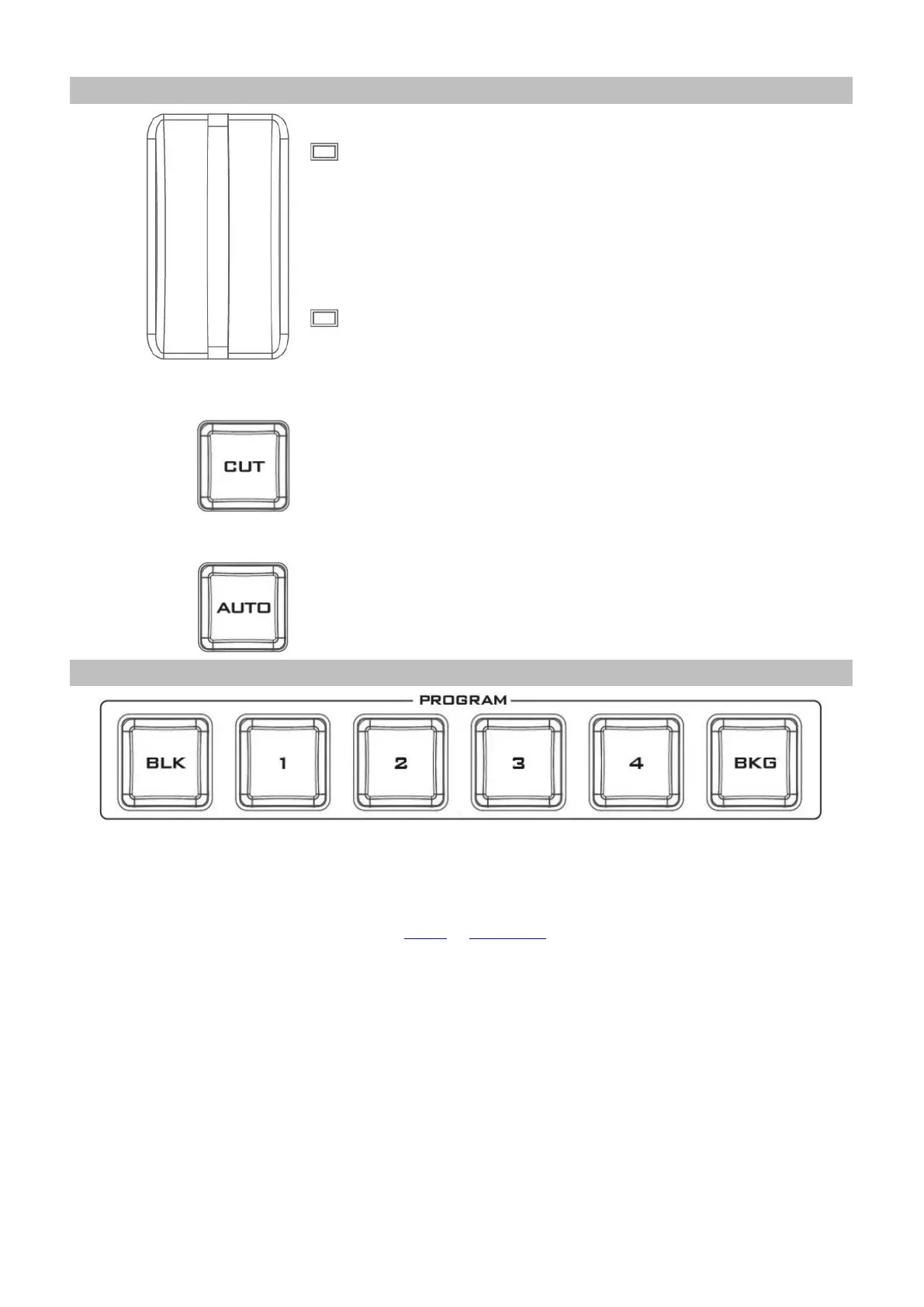

Transition Control
T-Bar (Manual Transition)
T-Bar is used for manual transition. The T-Bar can be
either all the way up, all the way down or anywhere in
between. When the T-Bar is pushed to halfway
between the topmost position and the bottommost
position, the keyboard functions will be disabled.
PVW and PGM views can be transitioned at your
preferred speed. To include the transition effect,
simply press the WIPE or MIX button, after which the
Transition Effect will be triggered as you move the T-
Bar.
CUT Button
Pressing the Cut button performs immediate manual
switch between PVW and PGM views without the
transition effect.
AUTO Button
Pressing the Auto button automatically transitions
PVW and PGM views according to the selected speed
and the configured transition effect.
Program Output
Program Source Row
Pressing the number buttons along the PROGRAM row selects a video source for the PGM view.
BKG button: Pressing the BKG button will switch the background to a Matte background. The BKG
color can be configured on the OSD MENU(Start  BKG Color) and the available color options are
listed as follows:
 White
 Yellow
 Cyan
 Green
 Magenta
 Red
 Blue
 Black
BLK button: Pressing the BLK button places a black screen on the PROGRAM view.
