Datavideo HS-1600T User Manual

18
Audio
Volume (dBV)
-20
-10
-8
-4
0
+4
+8
+10
LED Color
G
G
G
G
G
Y
Y
R
Range (dBV)
-20
-12
-11
-9.5
-8.5
-6.5
-5.5
-3
-2
1
2
5.5
6.5
8
9+
G: Green Y: Yellow R: Red

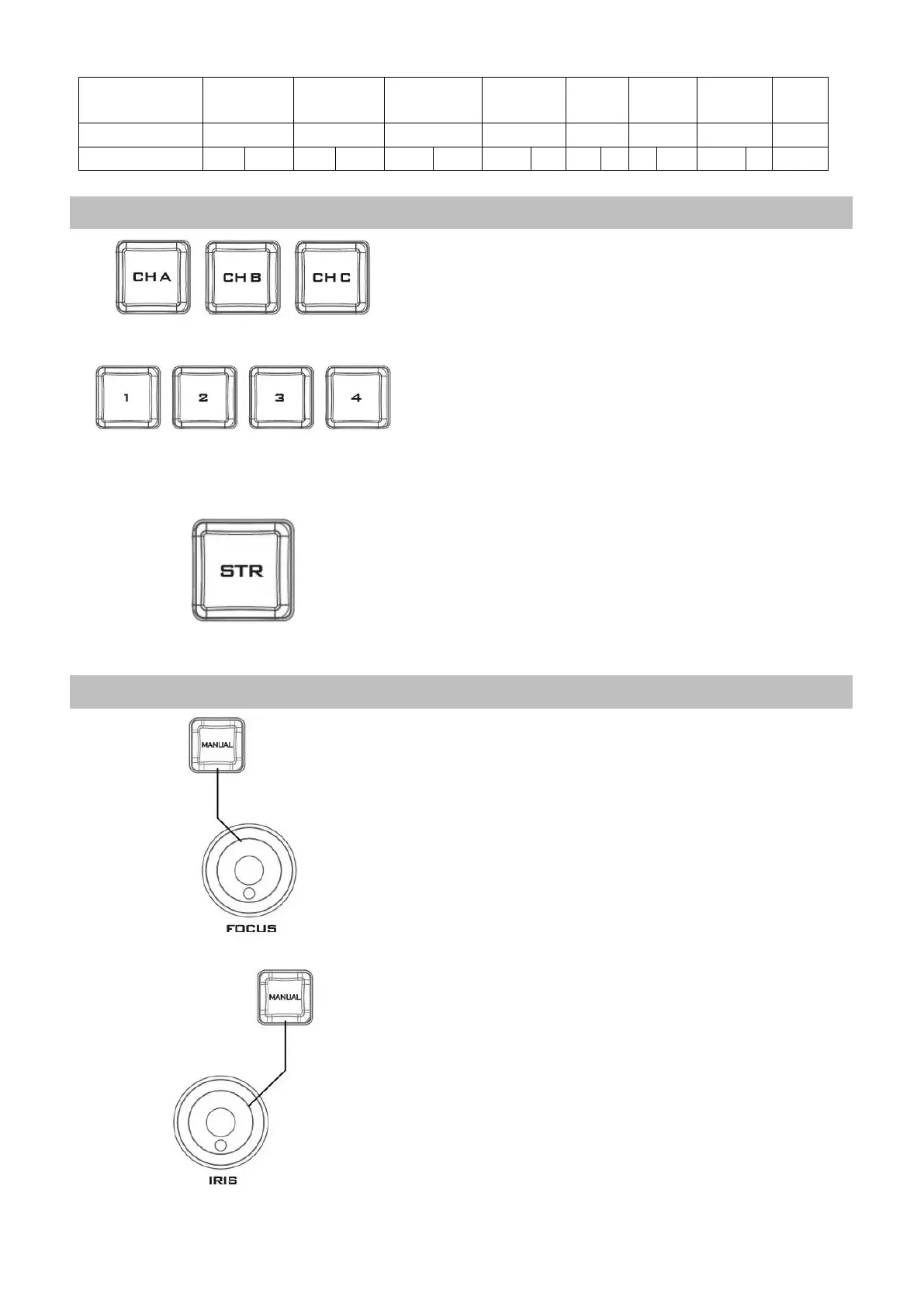

Camera Presets
Channel Selection Buttons
To control or set up a connected camera, first select it
by pressing these buttons. The selected channel
button will be turned ON.
Preset Buttons
These buttons may be used to store up to four camera
positions for each camera. Each button corresponds to
one stored camera position. The button LED will be
turned ON when selected.
STR Button
Pressing this button enters the HS-1600T into STORE
MODE. When activated, this allows the current camera
position to be stored in a chosen Channel Preset
Button by pressing the corresponding preset button.
Press again to exit STORE MODE.
FOCUS / IRIS / White Balance
Focus Adjustment
To manually control the FOCUS setting, first press the
MANUAL button to enter the manual mode. The
button LED will be turned ON to indicate that the
manual mode is enabled.
The FOCUS dial can then be rotated to set the focus.
If the MANUAL button is disabled (OFF), the camera is
in AUTO FOCUS mode.
IRIS Adjustment
To manually control the IRIS setting, first press the
MANUAL button to enter the manual mode. The
button LED will be turned ON to indicate that the
manual mode is enabled.
The IRIS dial can then be rotated to set the exposure.
If the MANUAL button is disabled (OFF), the camera is
in AUTO IRIS mode.
