DV-332 Analog/Digital User Guide
8
1. System Overview
DV-332 is a gateway that can be applied to SOHO and Enterprise market. With the same product, it
supports various analog/digital interfaces such as FXS/FXO/Digital E1/E&M. Since it is built with slot
and module types, it supports flexible port types and numbers.

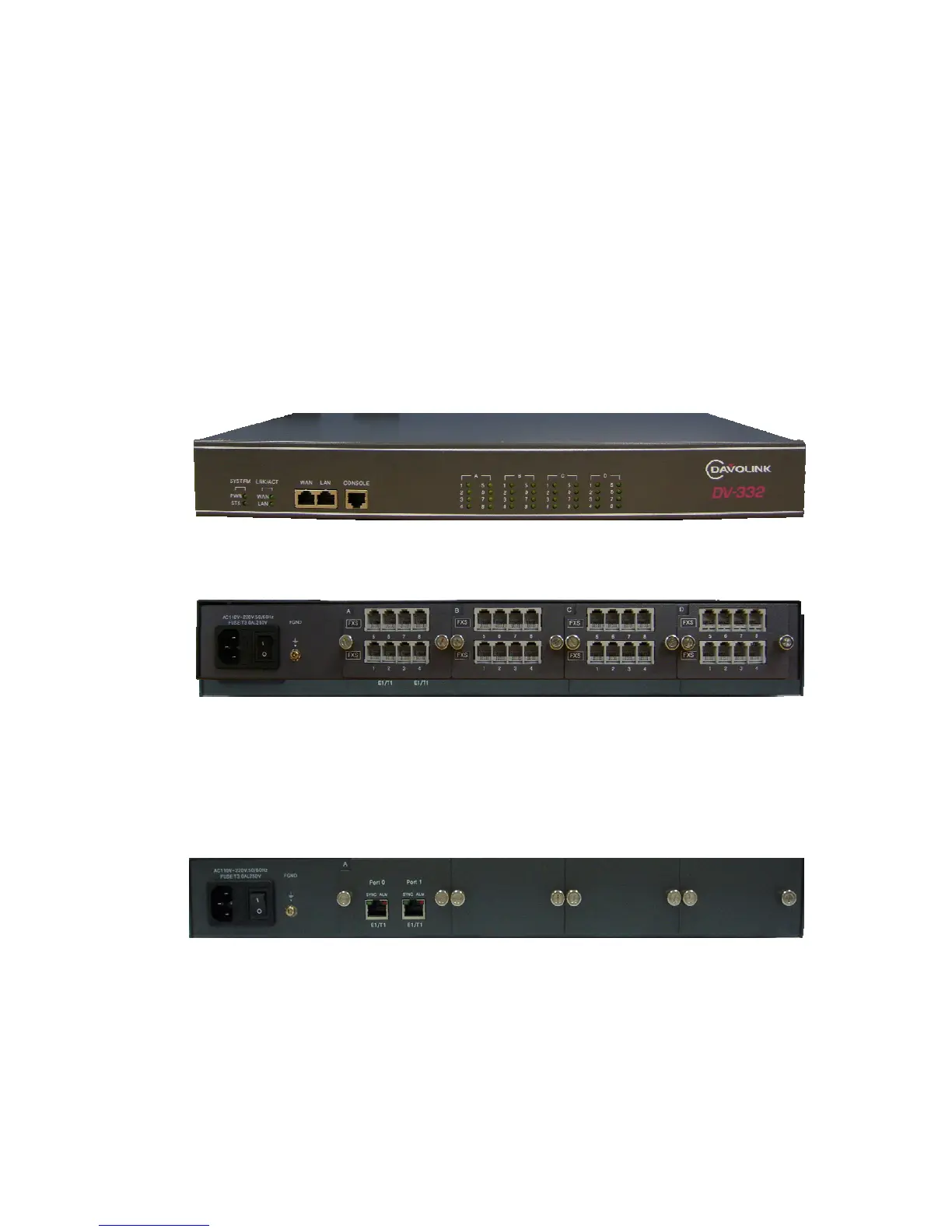

[Figure 1. DV-332 Front design for both Analog/Digital]
[Figure 2. DV-332 Rear design for Analog]
[Figure 3. DV-332 Rear design for Digital]
As you can see above, DV-332 provides Ethernet ports and a console port. Ethernet ports are
inscribed as WAN/LAN respectively. And these ports work as a switch. If you need to use Internet by
connecting a LAN port to PC, you need to configure another IP address in a same network range. At
the rear side, it provides 4 slots to insert various kinds of optional modules. Ports can be added by
