Days Strider MD 4 - Adjusting the seat position - captains seat

25
Issued: 24.02.2005
STRIDER MD
Tools required:
1 x Allen key (size 5 mm)

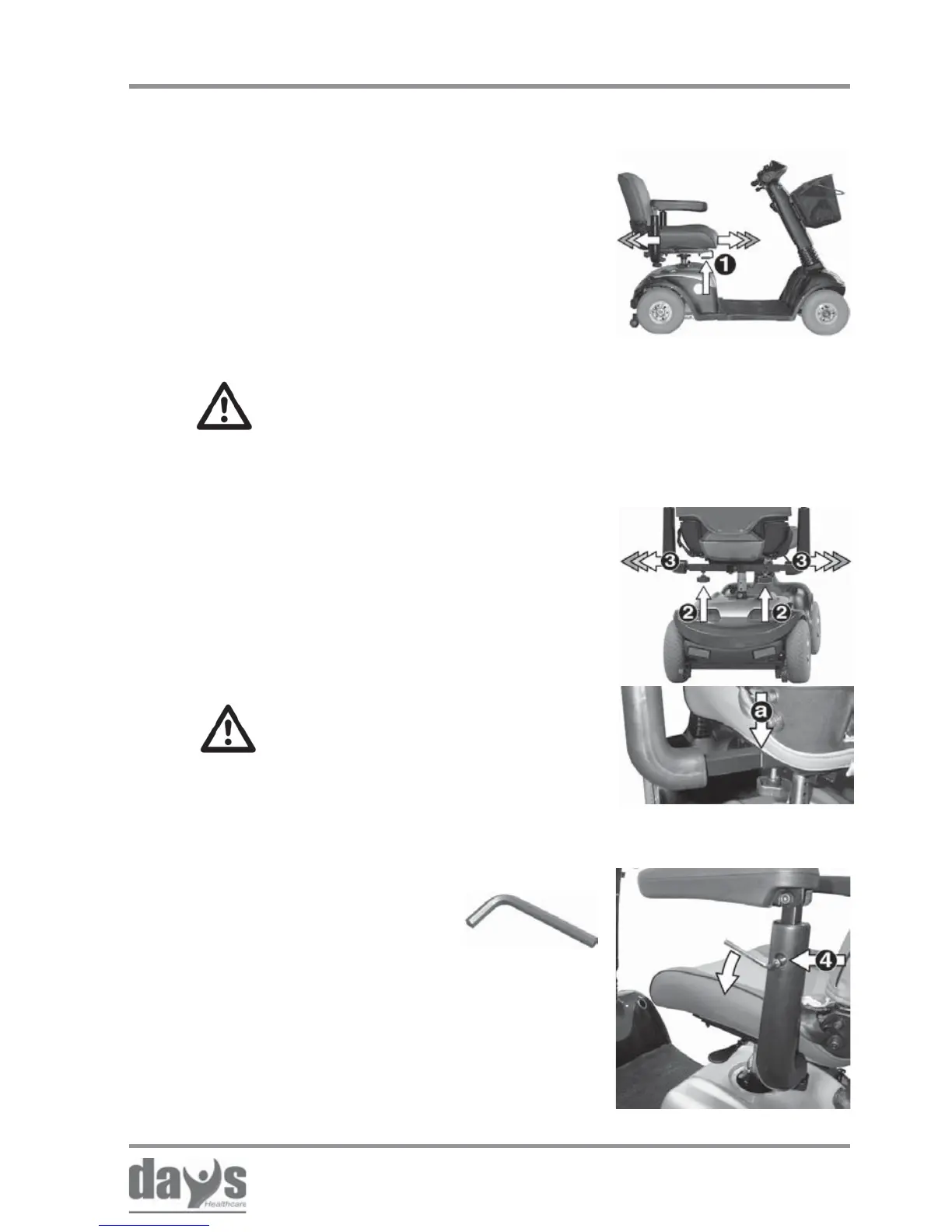

Loosen the Allen screw (4) and remove.➨
6.3.3 Adjusting the armrest height Loosening the fixing
Loosen both clamping screws (2).
Pull both armrests (3) simultaneously to
the required width.
Secure the armrests by tightening the
clamping screws.
➨
➨
➨
CAUTION!
• Do not pull the armrests further
out than the marking (a) for
maximum armrest width.
Accident hazard due to non-engaged seat!
• Ensure that the seat is properly engaged after adjustment
by pushing the seat slightly forwards and then backwards.
Moving the
seat
Pull the locking lever (1) upwards and
move the seat forwards or backwards to
the required distance.
Let go of locking lever and engage the
locking mechanism by pushing the seat
slightly forwards and backwards.
➨
➨
Adjusting the seat position
6.3.2 Adjusting the armrest width
6.3.1 Adjusting the distance between seat and
tiller
6.3 Adjusting the seat position - captain´s seat
