STRIDER MD
18.6 Fuses
Repairs - fuses

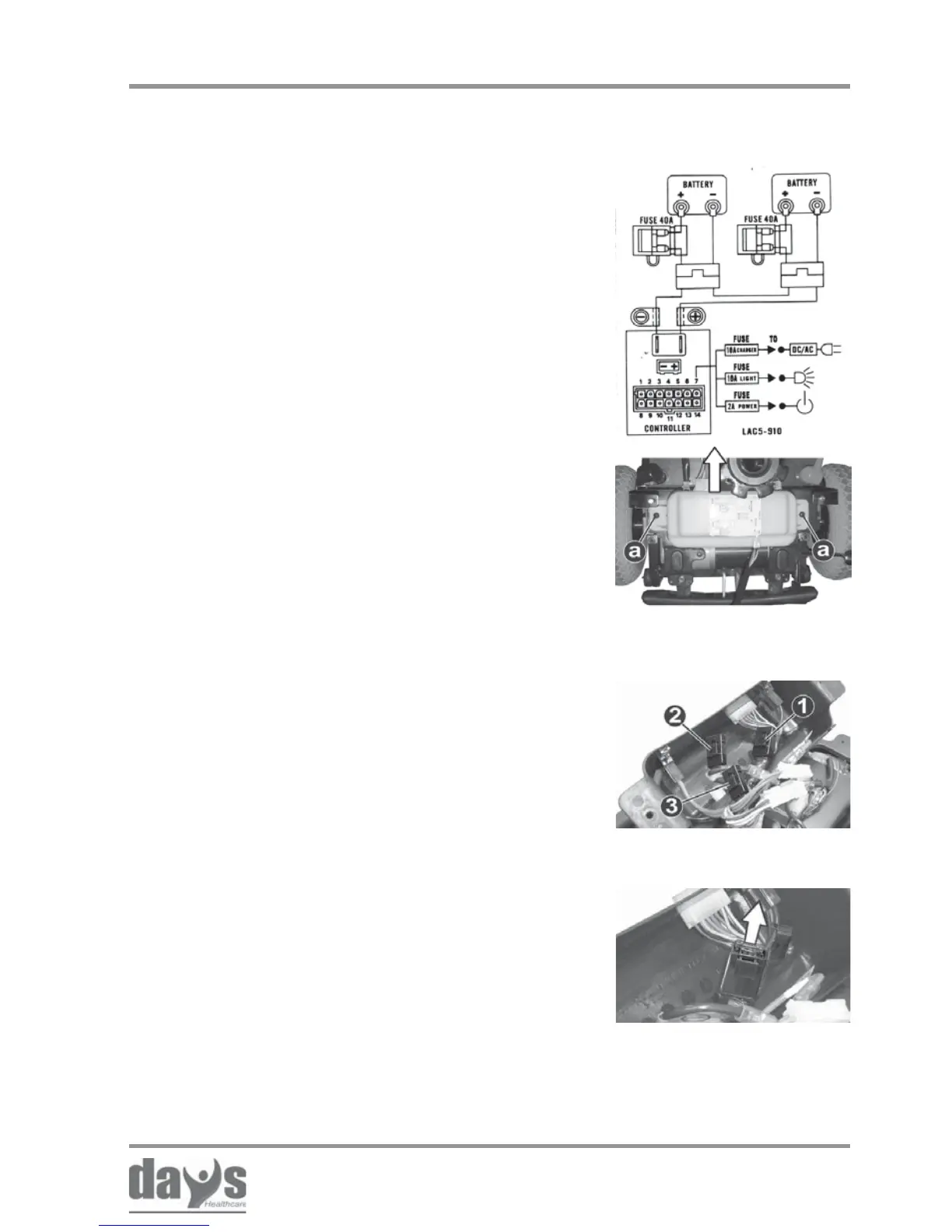

A wiring diagram with fuse sizes is
located on the control unit cover.
The Strider is fitted with the following
fusible fuses. The fuses are located
under the control unit cover.
(a = cover fixing screws)
Wiring diagram
18.6.1 Strider fuses
(1) 2 A fuse = power supply to tiller head.
(2) 10 A fuse = Light
(3) 10 A fuse = charging socket
To replace Fuse:
Open fuse holder.
Pull out fuse and replace it.
Close fuse holder.
➨
➨
➨
