Days Strider MD 4 - Removing the batteries; Folding the tiller down; Disengaging the drive unit from the chassis

53
Issued: 24.02.2005
STRIDER MD

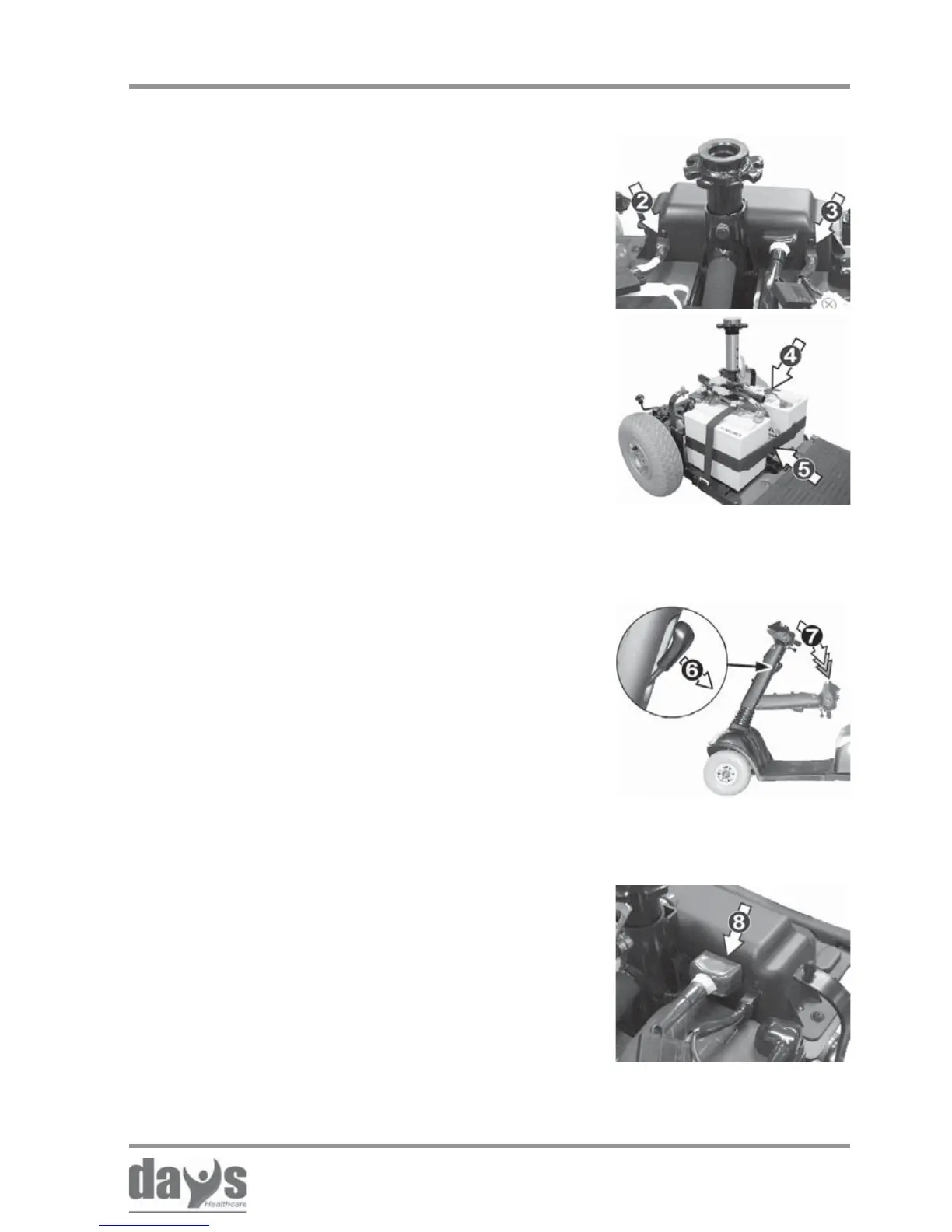

Remove the battery belts (4 + 5).
Remove the batteries.
➨
➨
Removing the batteries
Separate the front unit connecting
plug (8).
➨
Push or pull the locking lever (6) and
fold the tiller to the rear (7) until it is
horizontal.
➨
Folding the tiller down
Separating the front
connector
Transporting the Strider
Press the locking device on the plug and
disconnect the connecting plugs (2 + 3)
on the battery cable.
➨
14.3.4 Removing the batteries
14.3.5 Folding the tiller down
14.3.6 Disengaging the drive unit from
the chassis
