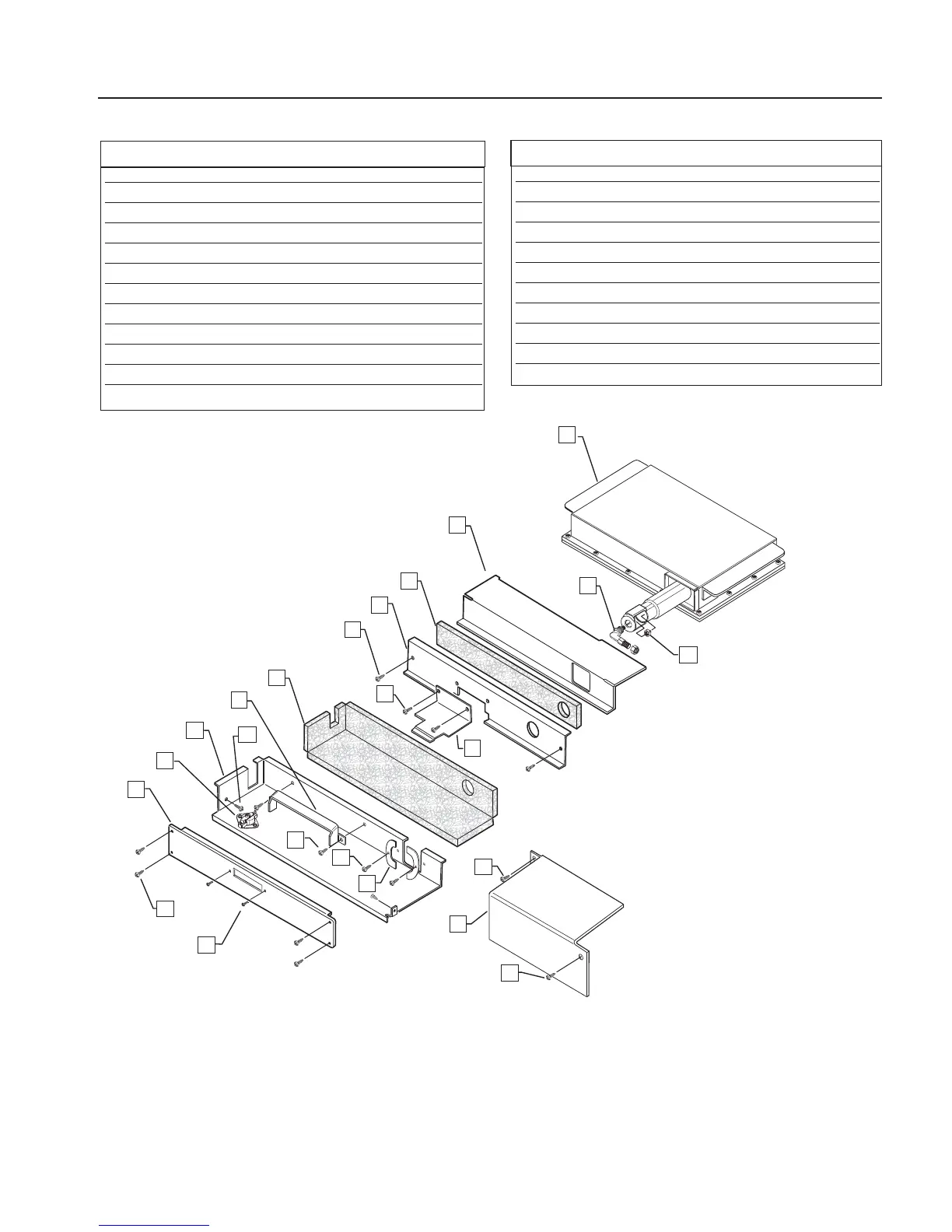

INFRARED BROILER ASSEMBLY
ITEM PART NUMBER DESCRIPTION
ITEM PART NUMBER DESCRIPTION
1 91242 IR BURNER ASSEMBLY
2 91708 SPACER,AIR BROILER
3 91728-01 INSULATION
4 91245 PLATE,FRONT INSULATION BOX
5 15001-03 SCREW
6 15001-03 SCREW
7 91471 BRACKET,BROILER IGNITER
8 91730-02 INSULATION PANEL
9 91701 DEFLECTOR,LOCK MOTOR
10 15001-03 SCREW
11 91706 SHIELD,BROILER FRONT
12 13043 HI-TEMP CUTOUT
13 91195-PC ACCESS PANEL
14 15001-14 SCREW
15 15001-09 SCREW
16 15001-03 SCREW
17 15001-03 SCREW
18 15001-03 SCREW
19 15001-05 SCREW
20 91481 LOCK BOX,INNER WALL
21 15001-03 SCREW
22 18020-1 FITTING ELBOW
23 18077-2 FERRULE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
