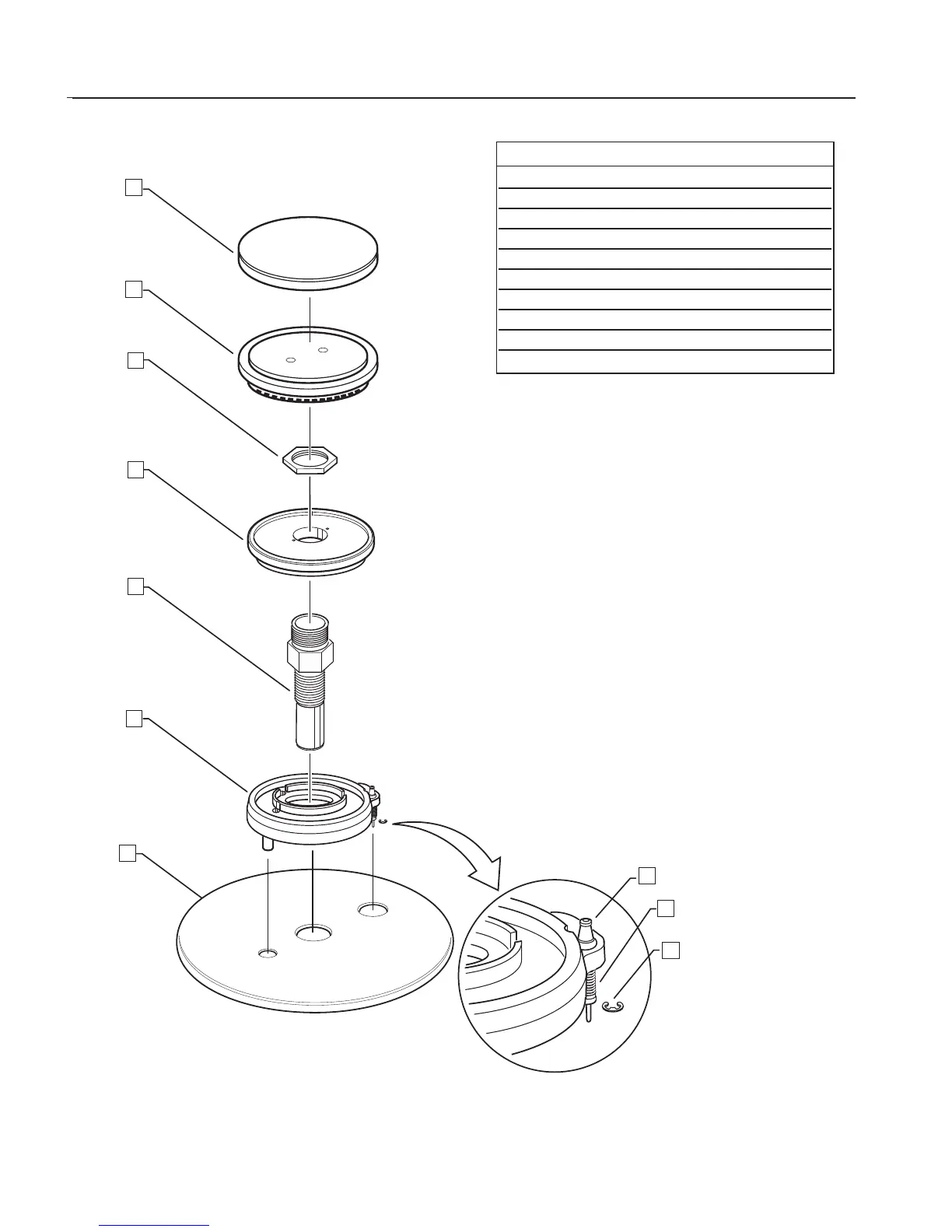

SEALED BURNER ASSEMBLY
ITEM PART NO. DESCRIPTION
1 12272 BURNER CAP
2 12274 RING C PORT
3 15219 VENTURI NUT
4 12270 RING C SIMMER
5 13378 VENTURI
6 12304 C BURNER BASE
7 91545-PC VULCANO
8 12224 IGNITER
9 12211 SPRING
10 12231 “E”RING
1
2
3
4
5
6
7
8
9
10
