DCS RGSC-305 - Page 49

PRELIMINARY
49

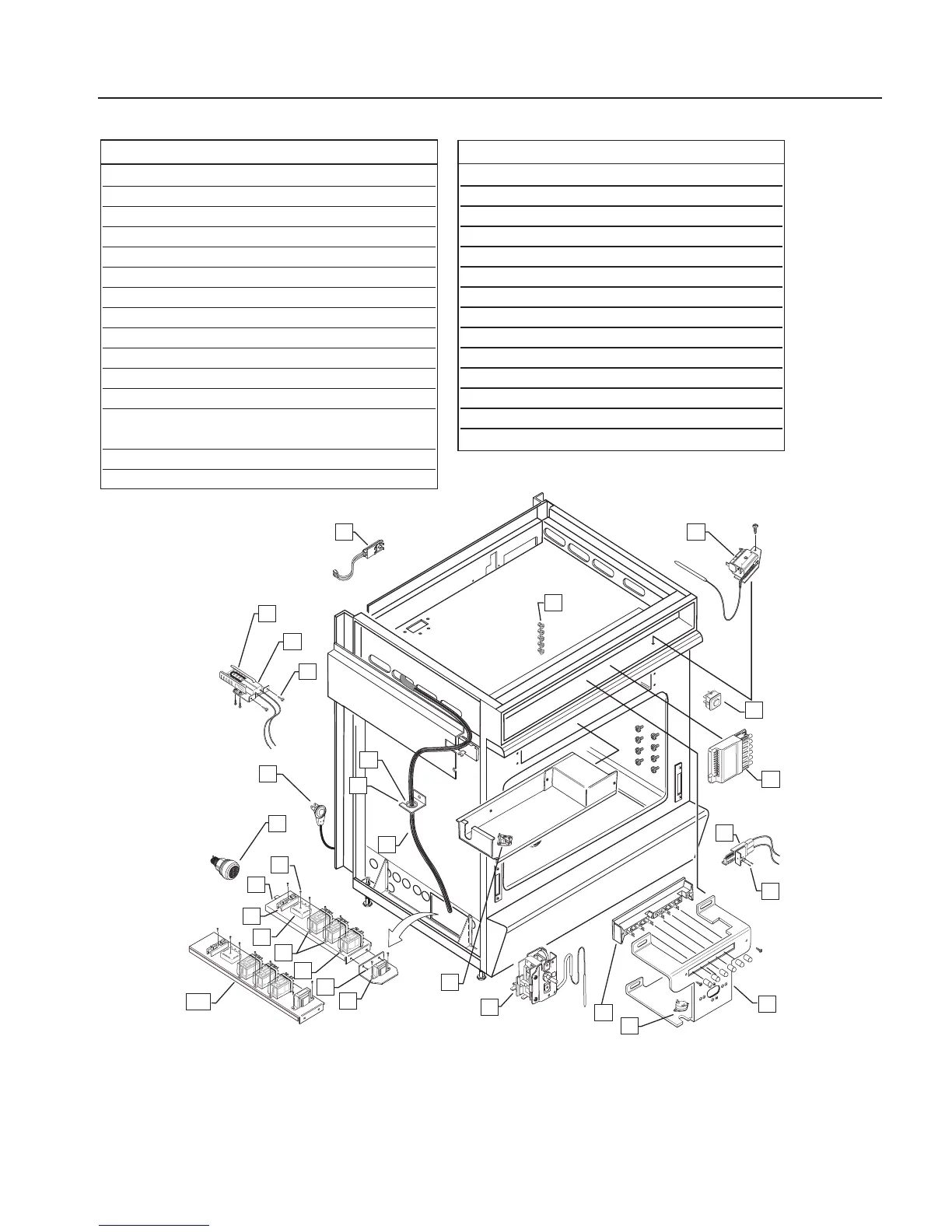

ELECTRICAL ASSEMBLY
EARLY MODELSNEWER MODELS
ITEM PART NO. DESCRIPTION
1 11238 GRMTS,IGN,WIRE (5 PLCS)
2 16046-02 PILOT LIGHT ASSY (5)
3 16009-1 BROIL IGNITER ASSY
4 91244 IGNITER BRACKET
5 15001-03 SCREW (2 PLCS)
6 16430 CORD,POWER RIGHT ANGLE
7 14197 GROMMET
8 50097 BRACKET,HARNESS
9 16242 OVEN LIGHT ASSEMBLY (2)
10 14304-03 WIRE HARNESS
11 15001-31 SCREW
12 91509 ELEC.COMPONENTS BRACKET
12A 91509 (NEW) ELEC.COMPONENTS
BRACKET
13 16352 TERMINAL BLOCK
14 16044-2 CLEAN TIMER
ITEM PART NO. DESCRIPTION
15 16045-3 RELAY (2)
16 16045-2 RELAY
17 15001-19 SCREW (2 PLCS)
18 16464 TRANFORMER
19 13043 HI TEMP CUT OUT
20 13380 THERMOSTAT ASSEMBLY
21 16399 6 PUSH BUTTON SWITCH
22 16041 BLOWER THERMOSTAT
23 91243 BRACKET,SUB PANEL
24 15002-18 SCREW (2 PLCS)
25 16505 OVEN IGNITER ASSY
26 16458 5 BURNER MODULE
27 16127 OVEN IGNITER SWITCH
28 13233 LOCK THERMOSTAT
12A
12
1
2
3
4
5
6
7
8
9
10
11
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
