DCS RGSC-305 - Page 51

PRELIMINARY
51

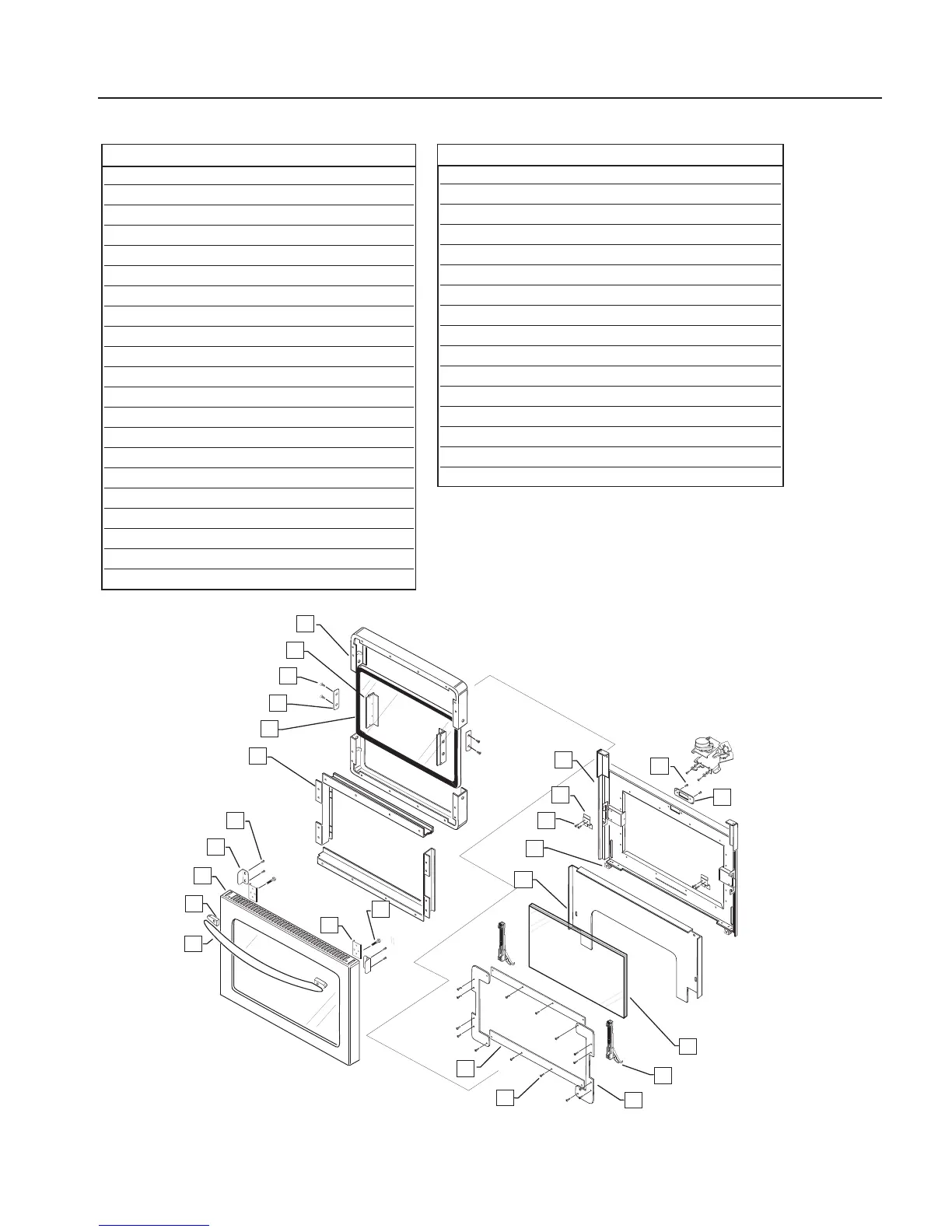

DOOR ASSEMBLY
ITEM PART NUMBER DESCRIPTION
* DOOR ASSEMBLIES:
91687 • STAINLESS STEEL
91687-01 • WHITE
91687-02 • BLACK
1 91532 SEAL DOOR UPPER
2 96168 SPACER,SEAL CHANNEL
3 15002-43 SCREW (4 PLCS)
4 96166 COVER,DOOR SEAL
5 14296-01 INSIDE DOOR GLASS
6 91533 DOOR INSULATION COVER
7 15001-13 SCREW
8 91694 SHIELD, DOOR,TOP
9 91528-01/-03 DOOR SKIN
* (PRO/PSH) DOOR SKIN NO LOGO:
91529-01-PA • STAINLESS STEEL
91529-03-PA • WHITE
91529-04-PA • BLACK
* DOOR SKIN,EURO
92032-01 • STAINLESS STEEL
92032-02 • WHITE
92032-03 • BLACK
10 12167 SPACER (2 PLCS)(BRT CHROME)
11 12239 DOOR HANDLE
12 96012 HANDLE STIFFENER (2 PLCS)
13 15002-47 BOLT,1/4-28 UNF-2AX1.25GDS(4)
14 91530 COVER GLASS TOP/BOTTOM
15 15001-14 SCREW (16 PLCS)
16 91531 COVER GLASS SIDES (2 PLCS)
17 150034-1 DOOR HINGE
18 14297-01 INNER DOOR GLASS
19 91536 DOOR HEAT SHIELD
20 96021 HINGE BOTTOM PLATE
21 15001-09 SCREW (4 PLCS)
22 91524 HINGE TOP BRACKET
23 91655-PC LINER,DOOR WLDMT
24 15001-09 SCREW (2 PLCS)
25 50046-1 LATCH PLATE-30
ITEM PART NUMBER DESCRIPTION
* Items not shown
1
2
3
4
5
6
7
8
9
10
12
11
13
23
22
21
20
19
24
25
14
15
18
17
16
