Genesis II Select
™
User’s & Installation Manual
16/September/2015
32

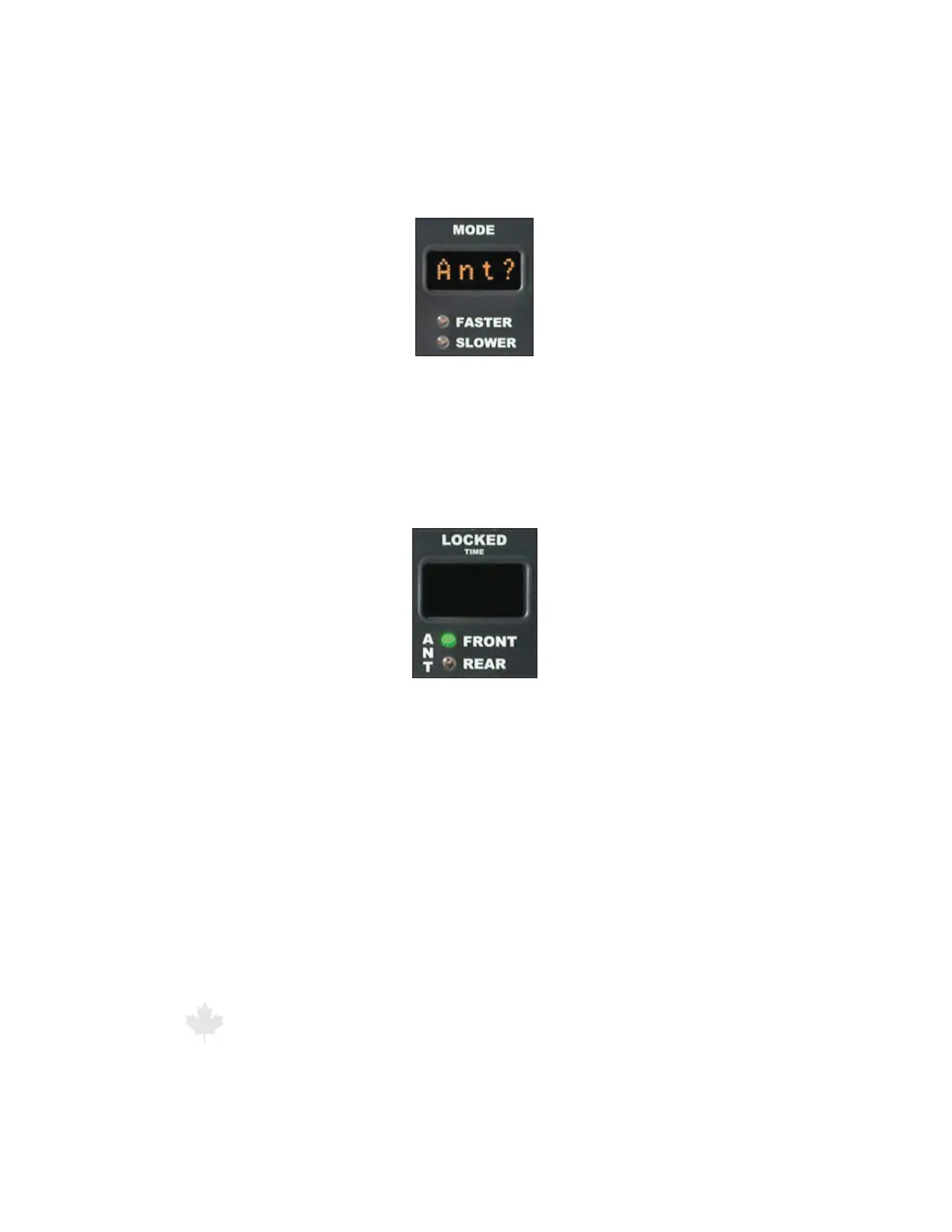

Figure 6.2a
*GOPBOUFOOBJTDPOOFDUFE"OU EJTQMBZT
The radar unit will not begin transmitting until you press an antenna
button. The antenna (ANT) buttons, up arrow (FRONT) and down
arrow (REAR), on the hand-held remote activate and deactivate the
antennas. The FRONT or REAR light will illuminate when the antenna
is transmitting.
Figure 6.2b
When the FRONT light illuminates, the FRONT antenna is transmitting.
To discontinue transmitting (to place the radar back into standby
mode), press the same (ANT) button.
The Genesis II Select™ has three main operating modes: Stationary,
Moving Mode Opposite Direction, and Moving Mode Same Direction.
