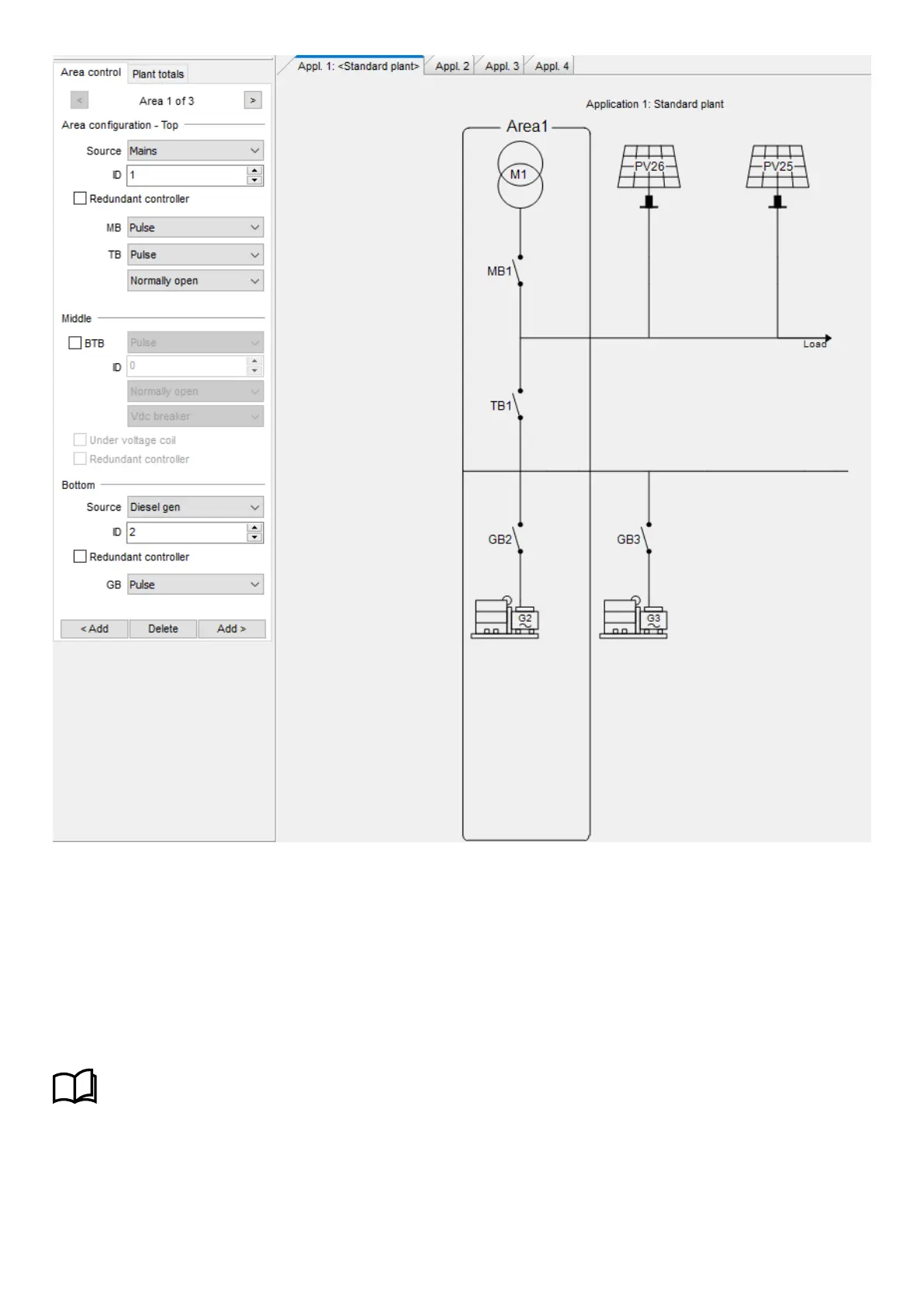

To connect the photovoltaic and battery sources to the Mains load point:
1. The photovoltaic or battery source must be in Area configuration – Top.
2. Select the Area with the photovoltaic or battery source.
3. Select Mains load point under Area configuration – Top > Connection.
4. Write your changes to the controller.
The power management configuration is described in Option G4 G5 and G8 Power management AGC-4.
More information
See Breaker connections for more information about the wiring and configuration for PV and ESS breakers.
