The generators are configured in the “Input settings” or in “M-Logic”, they are not included in the application configuration. A
maximum of 16 generators can be configured.
Example of stand-alone configuration

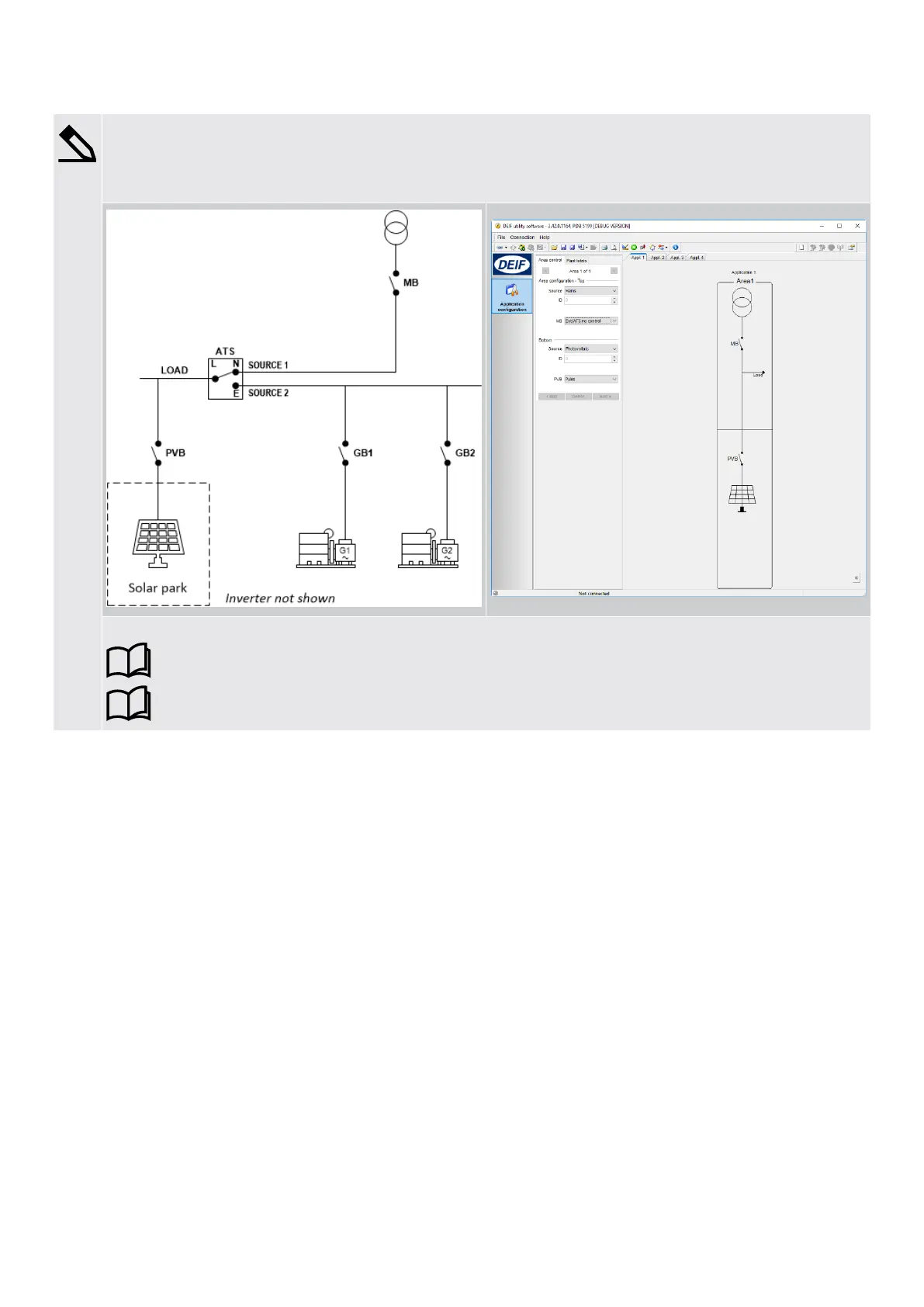

This is an example of a stand-alone application where a solar park supplies the load in combination with a mains
connection. Two generators are included on an emergency busbar.
The generators are not visible in the “application configuration”, but they are present in the plant.
More information
See Generator configuration in this document for more information about configuring generators.
More information
See PV configuration in this document for more information about configuring PV breakers.
4.2 Power management application configuration
The power management provides a lot of combinations. The below screenshot shows only an example.
Special for the power management application is that there is one controller per power source. In the example below, there are five
DEIF Multi-line 2 controllers (AGCs and ASCs).
