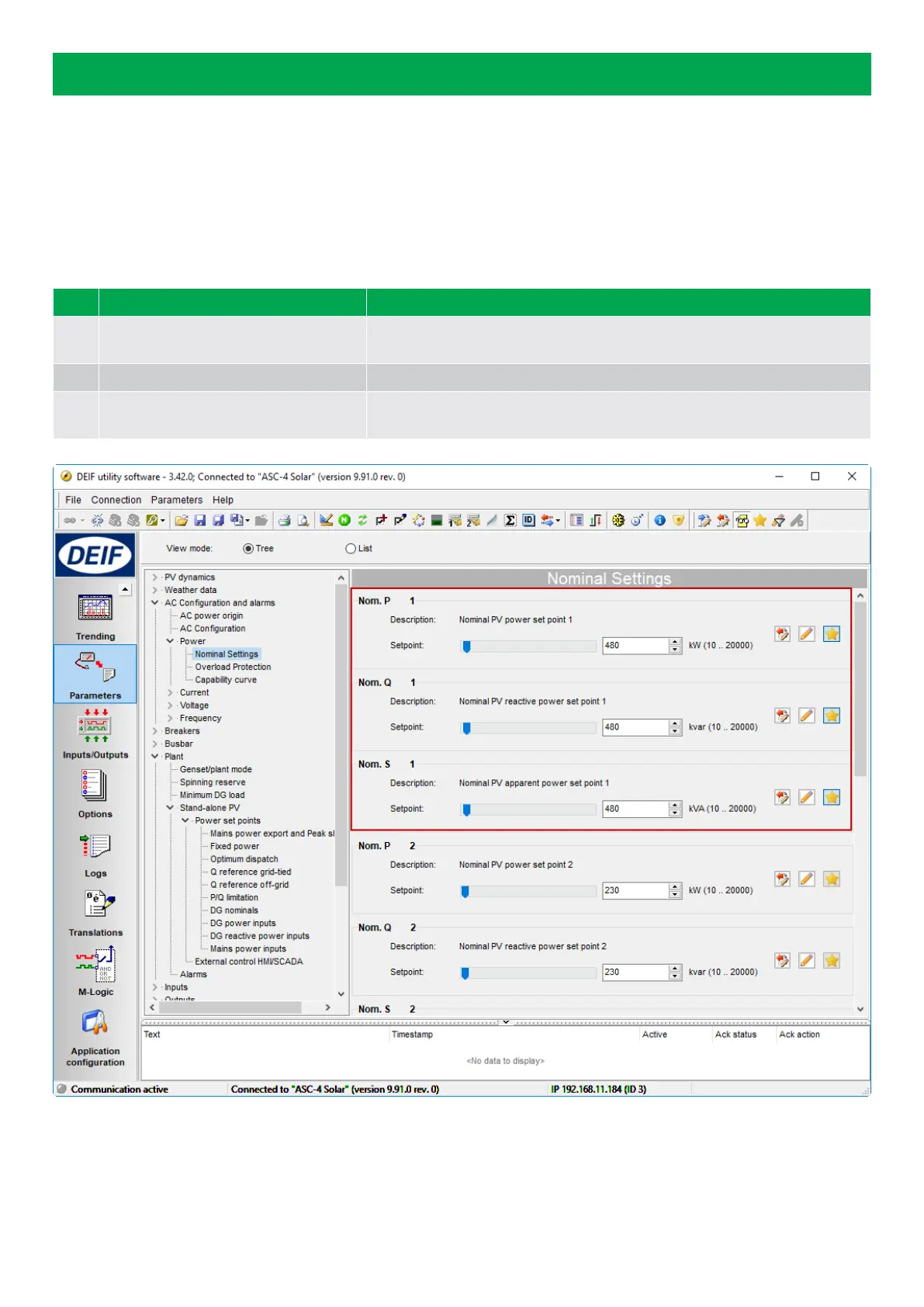

11. PV configuratiion
11.1 PV nominal values
In the section “Power source data”, all AC values were collected. Now they can be entered into the ASC.
11.1.1 Nominal ratings
Use the values collected in the Power source data chapter to adjust the nominal rating parameter values.
Menu Function Comments
6002
Adjust the rating of the installed PV
panels.
For example, 200 modules with a 250 Wp rating are installed. Set the value in
this menu to 200 × 250 × 0.001 = 50 kW.
6005 Adjust the Q rating of the inverter If given. Otherwise, set to the same value as 6006.
6006 Adjust the S rating of the inverters.
For example, three 20 kVA inverters are installed. Set this menu to 3 × 20 = 60
kVA.
11.1.2 Nominal current
The voltage and current measurements need to be connected and set up in the menus.
COMMISSIONING GUIDELINES 4189341077D EN Page 28 of 58
