8.3 Mains breaker is present
The ASC cannot control the mains breaker, but it is necessary to wire in position feedbacks so that the ASC knows the status of the
mains breaker. This is the case for non-power management systems (ASC is the only DEIF controller in the system).
Terminal
Function Associated menus
24 Feedback for the MB open position 2210 MB pos failure
25 Feedback for the MB closed position 2210 MB pos failure
28 Common for 24 and 25

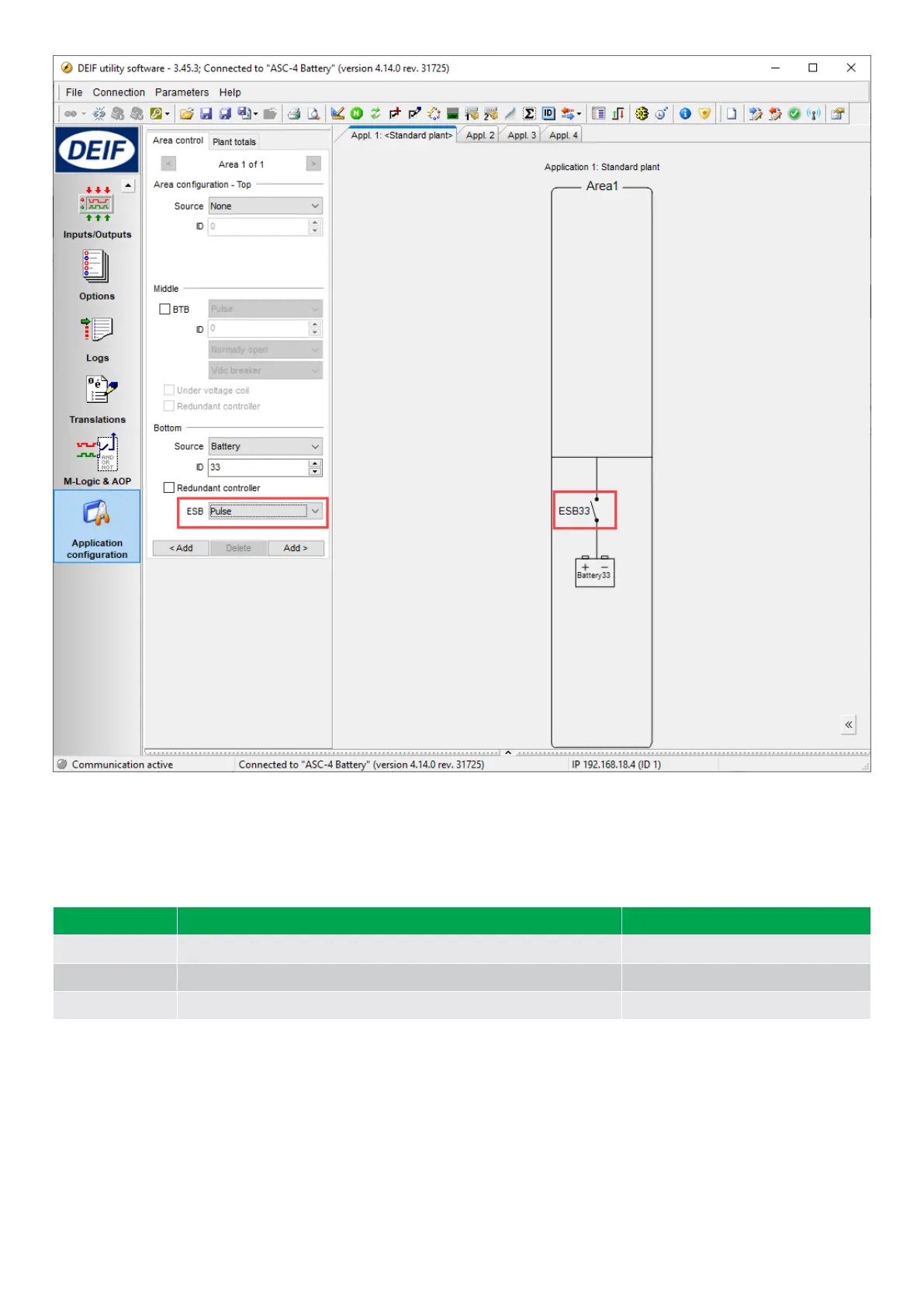

The check of the input functionality is done in the inputs/outputs page similar to the PVB. The application will contain a breaker
which is not controlled by the ASC.
COMMISSIONING GUIDELINES 4189341077D EN Page 21 of 58
