It is noted that the breaker configuration is set up in the “Application configuration”. There are no parameter menus for this. Compact
breaker (MCCB) is not supported by the ASC.
These menus and inputs associate with each other.
Terminal Function Comments
26 Feedback for the ESB open position
2160 ESB open failure
2180 ESB pos failure
27 Feedback for the ESB closed position
2170 ESB close failure
2180 ESB pos failure
28 Common for 26 and 27

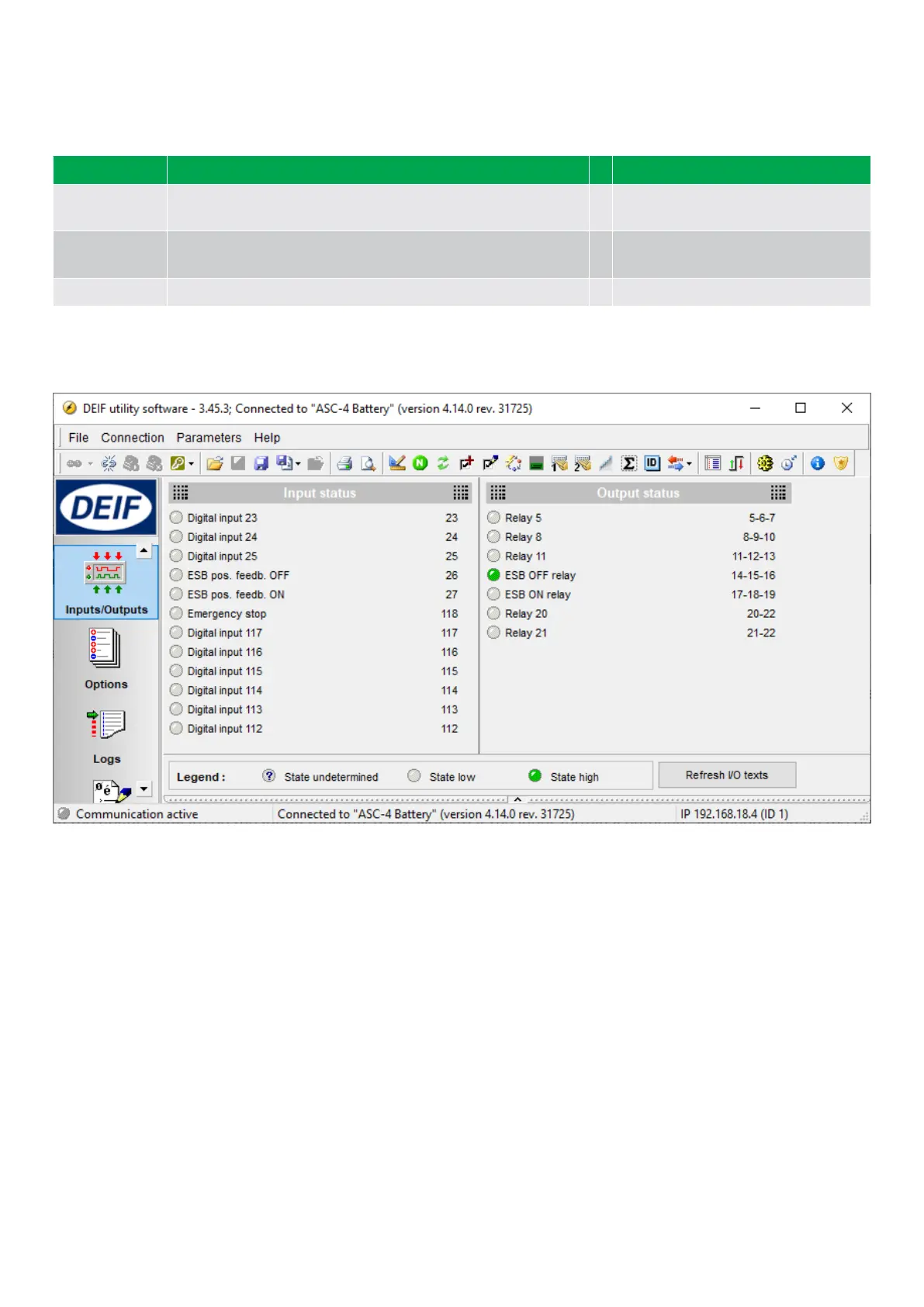

Breaker feedback can be checked in the utility software on the inputs/outputs page. Note that the input terminal numbers are
mentioned on the right hand side of the terminal description.
When there is an ESS Breaker in the application and the ASC controls it, the application always contains one:
