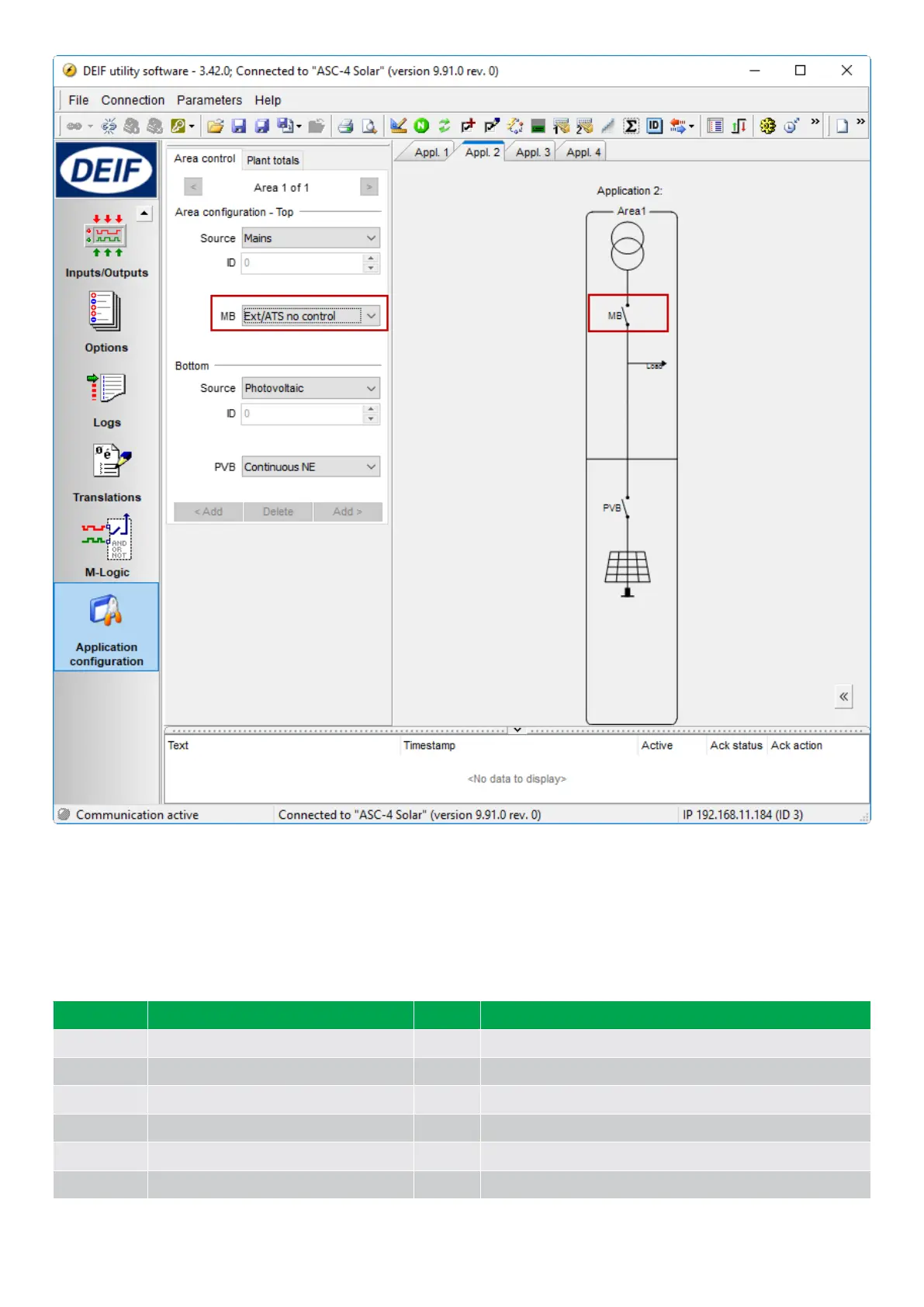

8.4 Generator breaker feedback inputs
The mentioned parameters, wiring and settings must be configured when it is not a power management system. Notice that the
DPM DEIF MIC 4000 series also gives the possibility to configure this in the “M-Logic” programming tool.
Note the available number of inputs is option-dependent. The below shown 43-48 (56:common) belong to option M12.
Terminal
Function Associated menus
43 Genset #1 breaker is closed 7481 DG1 nominal power
44 Genset #2 breaker is closed 7482 DG2 nominal power
45 Genset #3 breaker is closed 7483 DG3 nominal power
46 Genset #4 breaker is closed 7484 DG4 nominal power
47 Genset #5 breaker is closed 7485 DG5 nominal power
48 Genset #6 breaker is closed 7486 DG6 nominal power
COMMISSIONING GUIDELINES 4189341077D EN Page 22 of 58
