8. Breaker connections
8.1 PV breaker is present
If the application configuration includes a PV breaker, the following terminals must be wired:
Terminal Function Comments
14 Open PV Breaker NO Open relay is used depending on breaker type: pulse
15 Common for 14/16 Comm
16 NC
17 Close PV Breaker NO Closed relay is used depending on breaker type: pulse and continuous (contactor)
18 Common for 17/19 Comm
19 NC
It is noted that the breaker configuration is set up in the “Application configuration”. There are no parameter menus for this. Compact
breaker (MCCB) is not supported by the ASC.
These menus and inputs associate with each other.
Terminal
Function Comments
26 Feedback for the PVB open position
2160 PVB open failure
2180 PVB pos failure
27 Feedback for the PVB closed position
2170 PVB close failure
2180 PVB pos failure
28 Common for 26 and 27

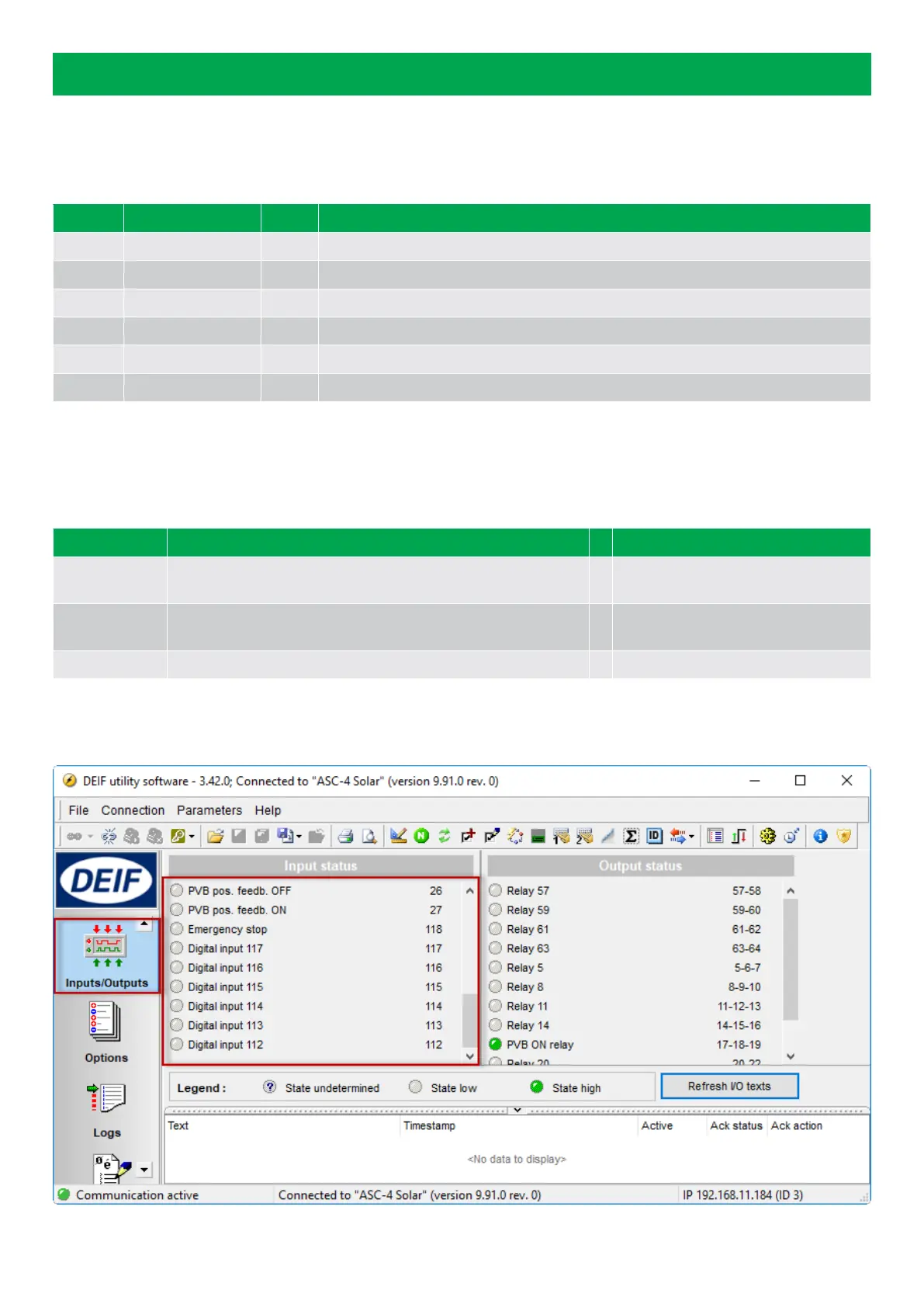

Breaker feedback can be checked in the utility software on the inputs/outputs page. Note that the input terminal numbers are
mentioned on the right hand side of the terminal description.
