DEKA DURATION DD5300
21

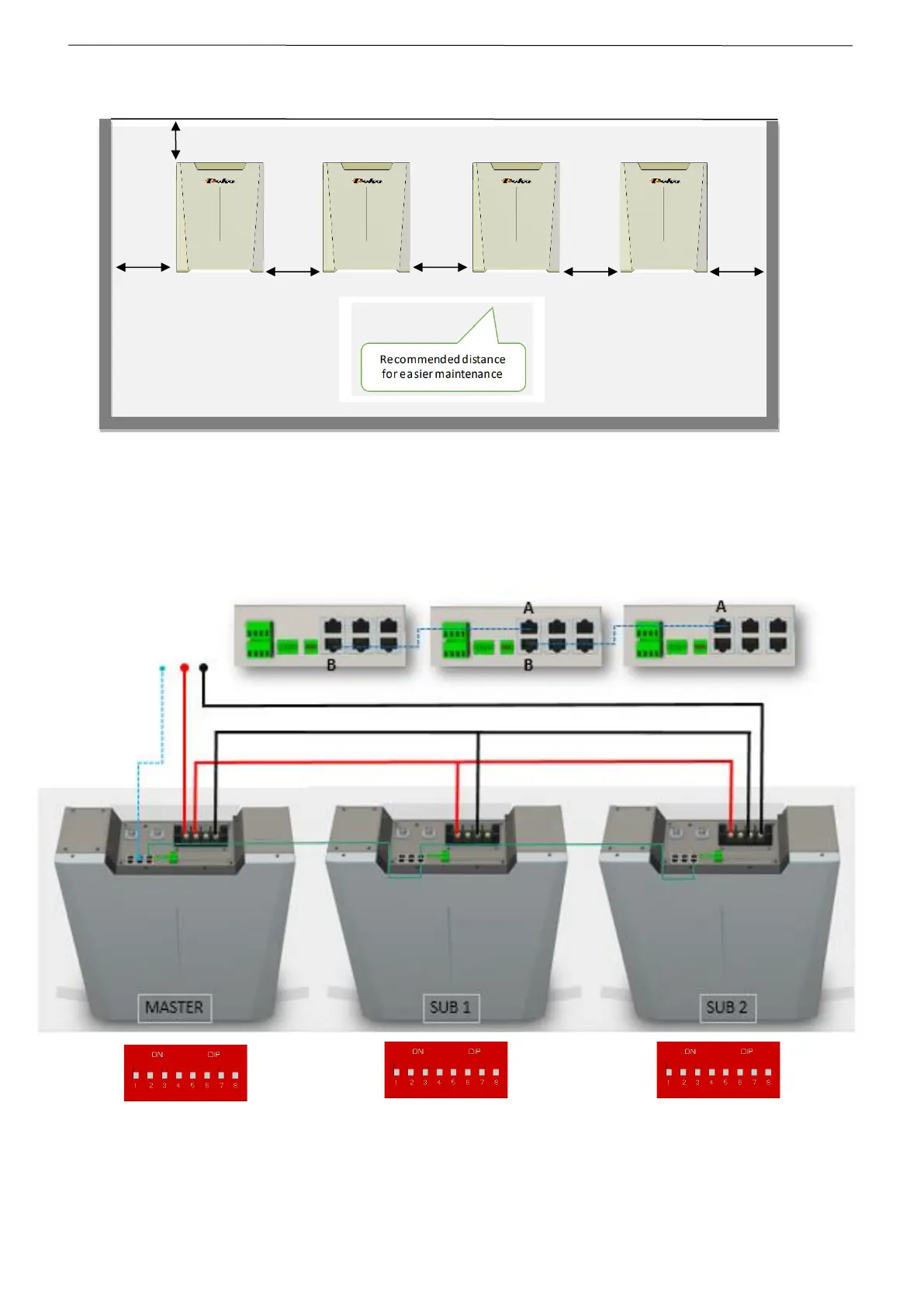

Step 2A: In case of multiple module installation, make sure to respect the distance between the modules and the ceiling.
Example of a Floor or Wall Mounted battery cluster connected with power cables and data cables.
Note: In a single cluster configuration, there is no need to set the DIP switch on the master battery. All DIP
switches should be set to OFF. The single cluster will self-configure.
