DEKA DURATION DD5300
50
The DD21001 HUB can manage a maximum of 7 clusters composed of a maximum of 15
modules each.
A MULTI CLUSTER SYSTEM SHALL BE CONNECTED WITH BUS BAR BETWEEN MODULES.

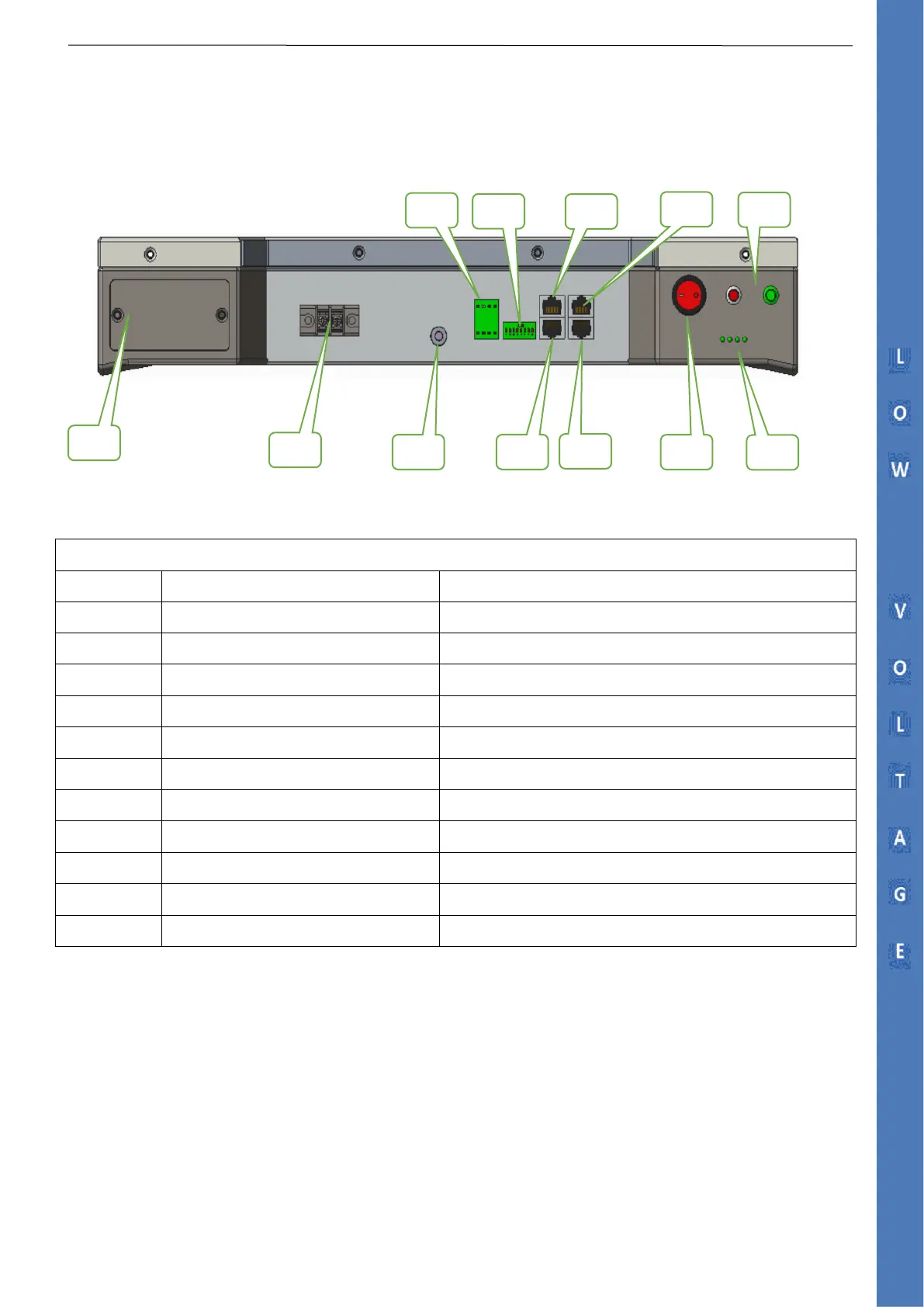

Interface Description and Connector
A
I/O CONTACT 2X
Programmable closure/contact
B
DIP SWITCH
Baud Rate Selection
C
CAN BUS PORT
CAN / BMS Bus PORT for external solar – grid charger
D
WIFI PORT
Wi-Fi External PORT
E
CLUSTER CAN PORT
Master Cluster CAN from last master of the system
F
ON OFF SWITCH
Internal Power Supply Switch
G
INLET 48 Vdc
Connector for power input to connect to the bus bar (1A fuse inside)
H
SOC LED LIGHTS
SOC STATUS
I
STATUS LED
RED > POWER ON GREEN>COMM READY GREEN BLINK>NO COMM
L
OPERATOR PORT
OPERATOR PORT FOR RS232/USB converter
M
FUSE HOLDER
LV circuit Fuse
N
GND screw Connection
5mm Screw Terminal
A
B
C
D
E
L
G
H
I
F
M
N
