3.2. Power supply / Analog output
3.3. Analog I/O
See schematic 8062-101 for connection details.
Specifications for Analog I/O:

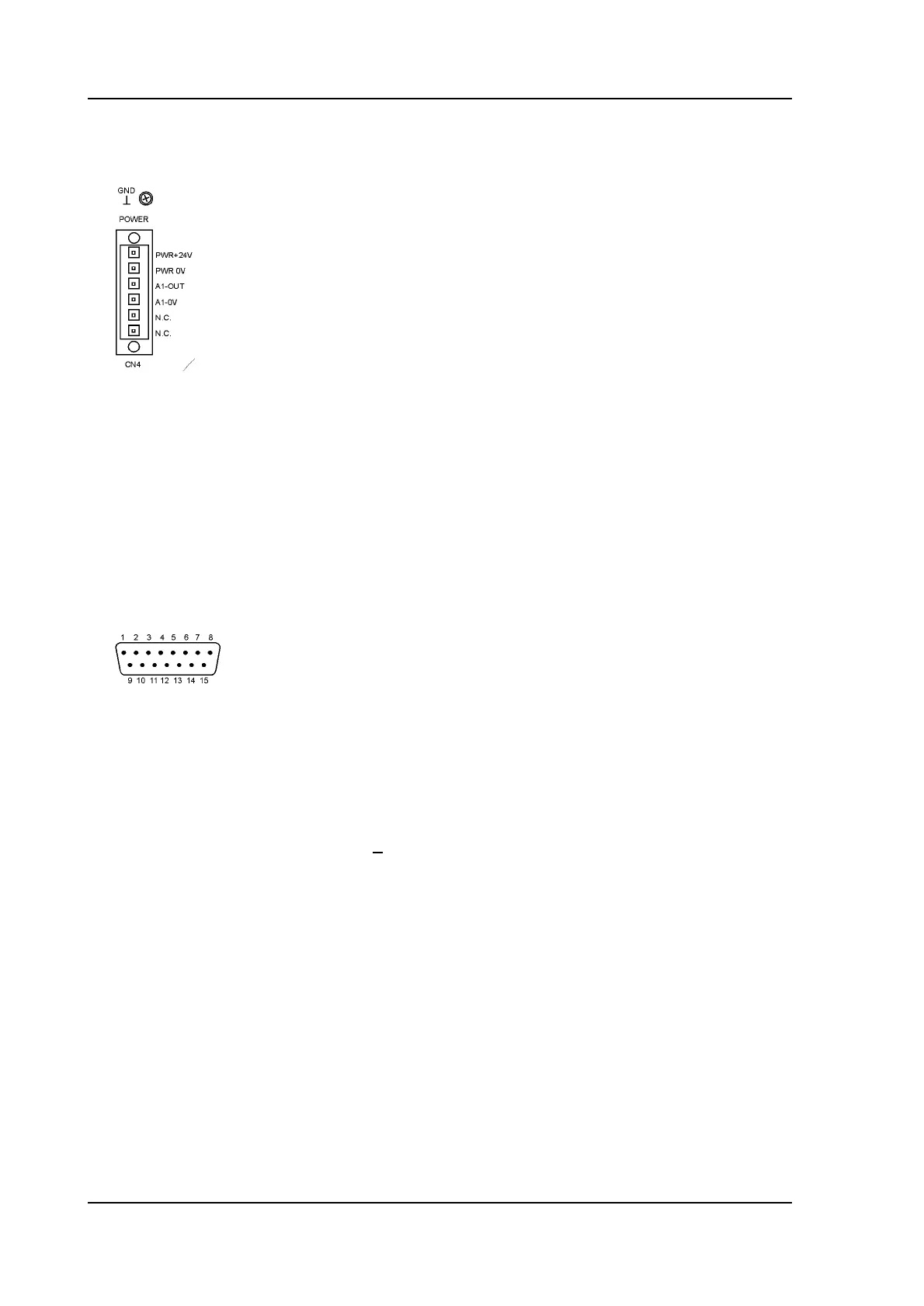

Connector CN4 contains the connection for the power
supply and the analog output for axis movement.
Power supply 18 - 28 VDC
5W (I/O excluded)
Analog output 0 +/- 10V
10mA max.
The Analog connector CN19 provides several analog
signals, two analog outputs and three analog inputs.
analog inputs (3x) 0-10V, input impedance 44 kΩ
reference voltage (3x) 10V +
2%, minimal resistance 1 kΩ
analog outputs (2x) 0 - 10V
10mA max.
minimal resistance 1 kΩ
