V0208, 2.28
Unit : -
Default : -
Function

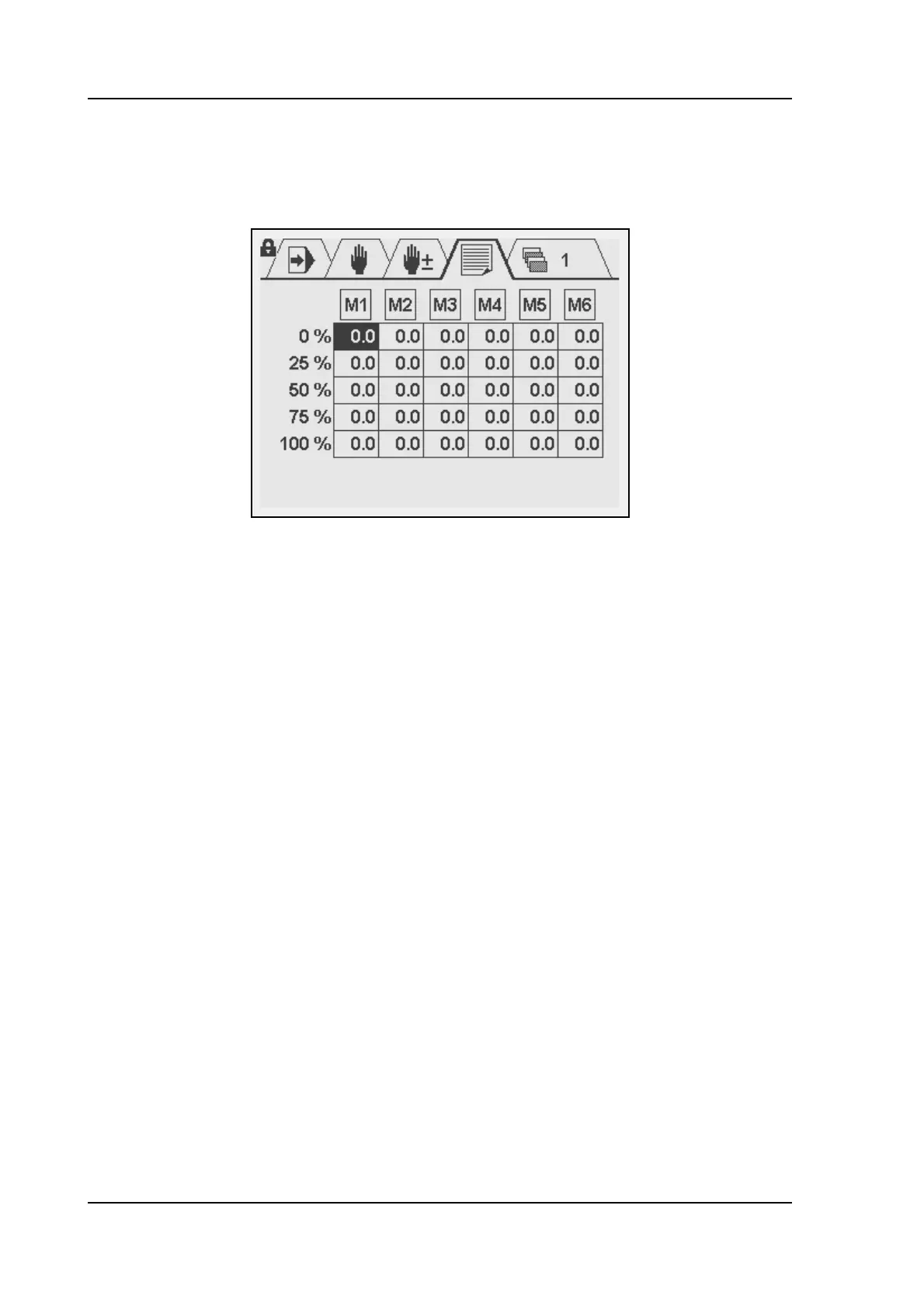

Press ENTER to open the screen with the angle material table.
In this table the cutting angle can be programmed as a function of sheet thickness and sheet
material. If this table is programmed, the angle is precomputed for each cutting step in a
program.
The plate thickness is indicated in the vertical column, as a percentage of the maximum
thickness (parameter 13, ‘Maximum thickness’). For various plate thickness values, the
required angle value can be programmed.
These setpoints can be programmed for each material (column M1-M6).
2.4. Gap control parameters
Parameter 76
Control enable
Range : 0 - 1
Unit : -
Default : 0
Function
Program Gap control on or off.
0 = No gap control
1 = Gap control
In case of 1, the following I/O is used:
• digital outputs G1+ and G1-
• analog input GFB.
Parameter 77
Prestop positive
Range : 0 - 99
