3.4. Digital I/O
8 inputs, 16 outputs.

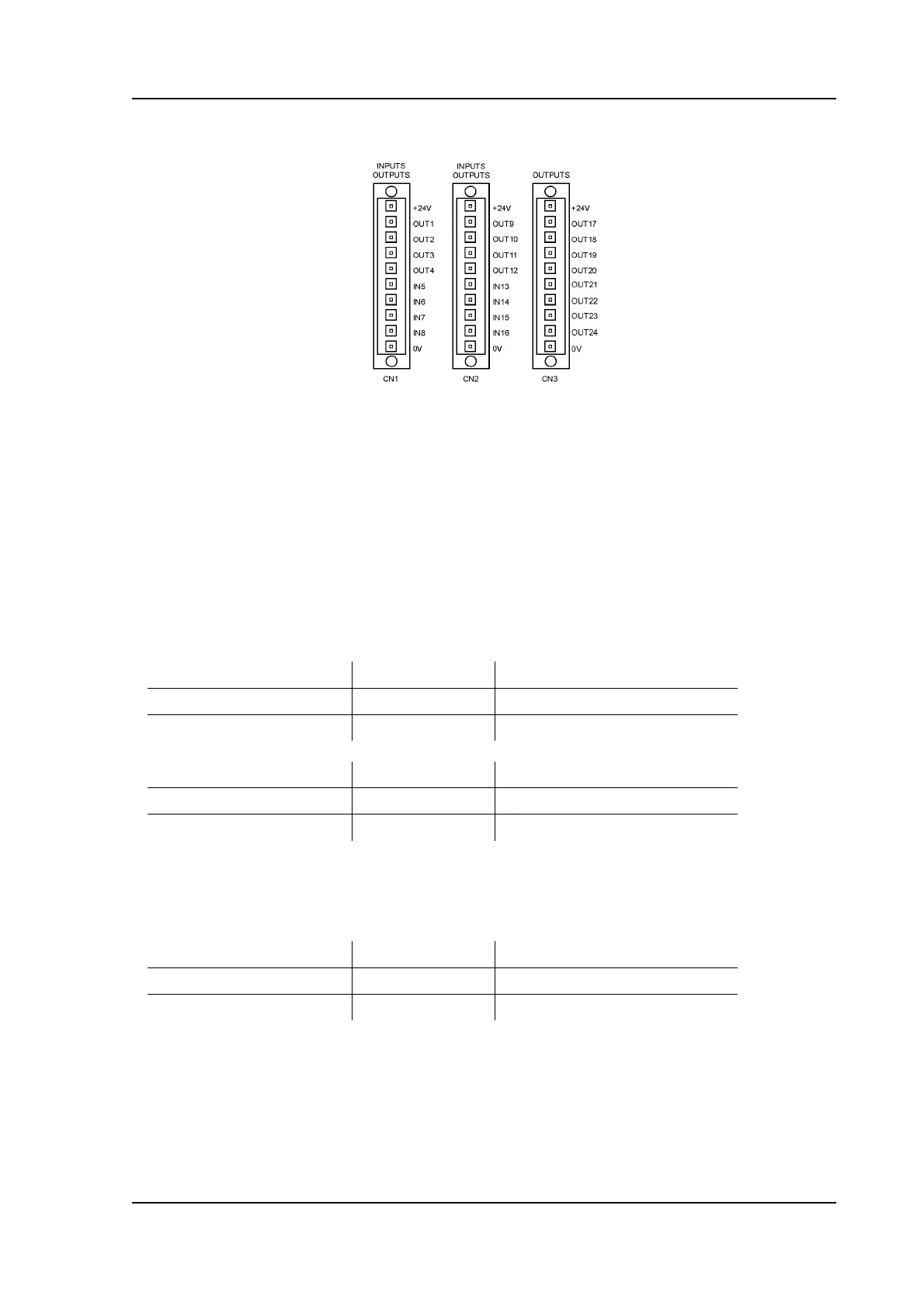

See schematic 8062-101 for connection details.
The use of I/O pins depends on the application and machine settings. For the purpose of all
assigned I/O signals please consult part 2 of this manual.
CN1 & CN2: Pins 1 - 16
Programmable Digital In-/Outputs:
CN3: Pins 17 - 24
Programmable Digital Outputs (8x):
Notes:
· The sum of all output currents should not exceed 8A.
· All digital outputs are short-circuit proof.
I/O power supply: 24 V DC + 20%
8A max.
Digital Outputs (8x) Voltage Current
ON state 20-28 V DC 0.5 A max.
OFF state 0-4 V DC 0.1 mA max. (leakage current)
Digital Input (8x) Voltage Current
ON state 9-28 V DC 20 mA max.
OFF state 0-4 V DC 1 mA max.
Digital Outputs (4x) Voltage Current
ON state 20-28 V DC 0.5 A max.
OFF state 0-4 V DC 0.1 mA max. (leakage current)
