3.5. Encoder
See schematic 8062-101 for connection details.
Notes:
• In case of 12VSE encoder, connect pins 6, 7, 8 and 9 with eachother.

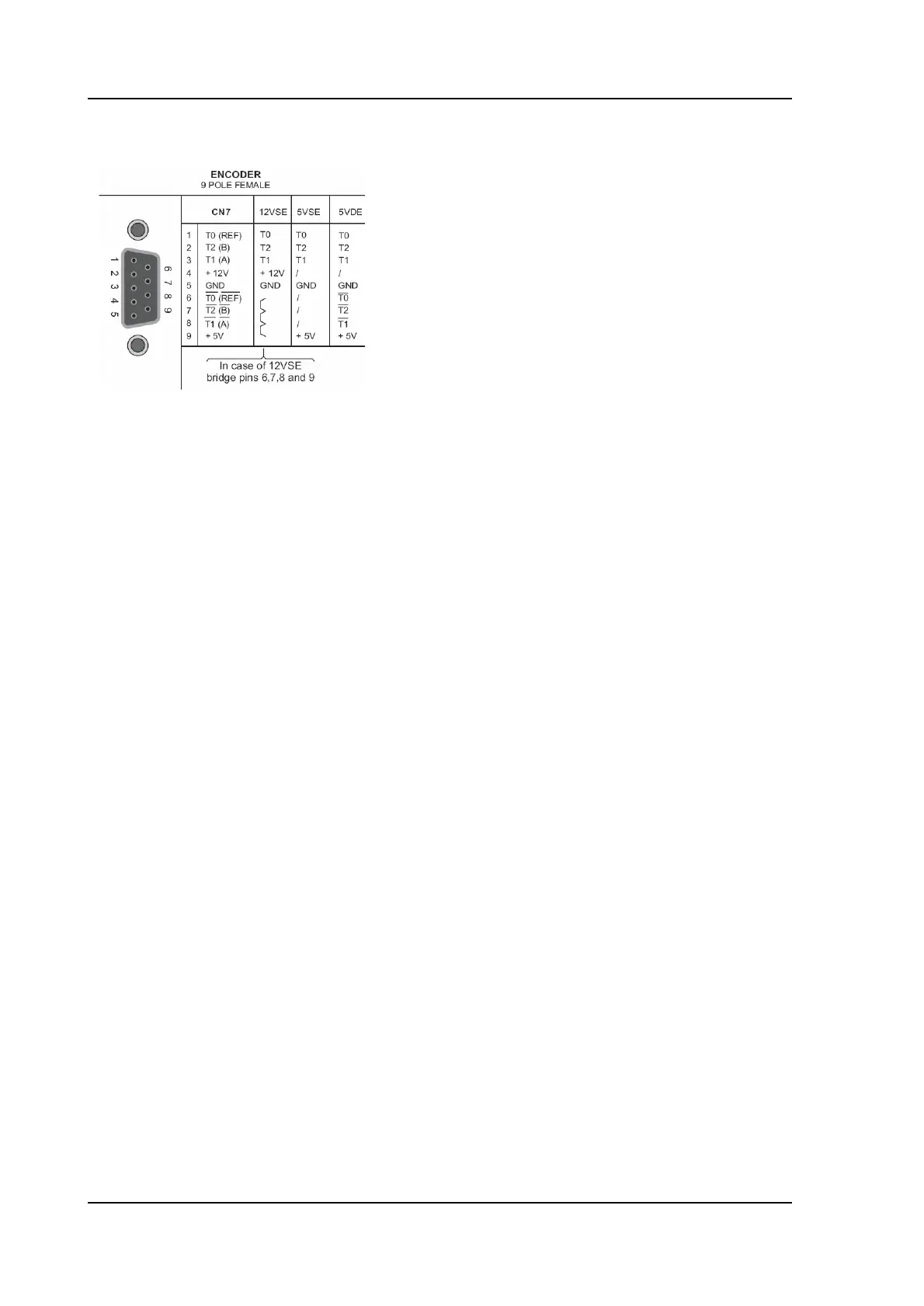

9-pole SUBD female encoder interface
power supply:
5V DC/250 mA or 12V DC/200 mA
possibilities:
12 V single ended
5 V single ended
5 V differential
Max. count frequency 1 MHz
