V0208, 2.34

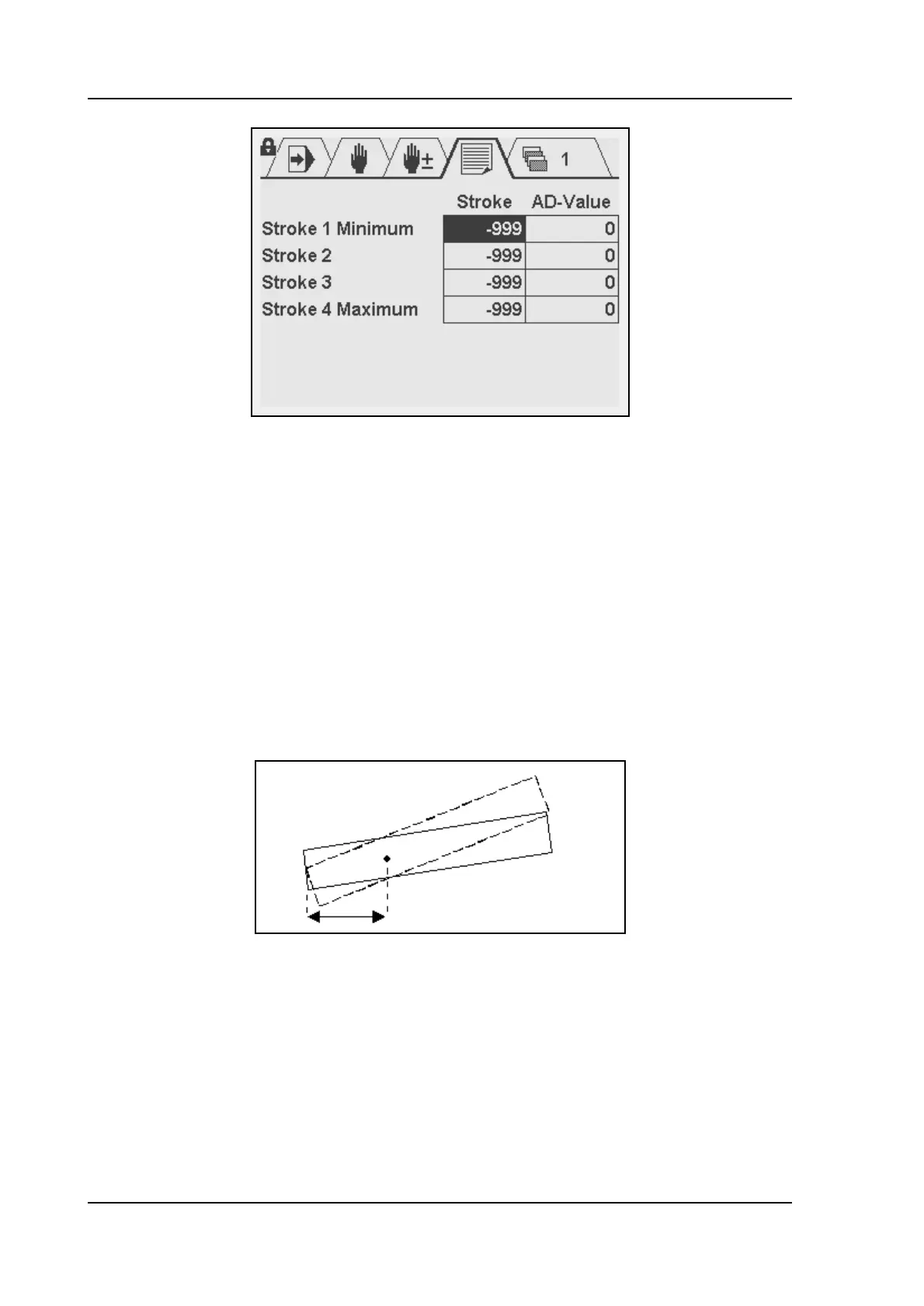

Stroke: program a known stroke value for the blade.
AD-value: program the required feedback voltage for this stroke. The input voltage must be
programmed in the range 0-4095, representing an input voltage in the range 0-10V.
The adjustment procedure to find the correct AD-values is similar to the procedure for angle
values as described in section 2.5.
Parameter 91
Rotation offset
Range : 0 - 9999
Unit : mm
Default : 0
Function
To program the offset of the rotation point of the blade with respect to the left side.
2.h
Parameter 92
Prestop
Range : 0 - 255
Unit : AD-points
Default : 0
Function
To stop the shear before the computed stroke length is reached.
