Delfin Bisky 600 - Introduction of the Rotary, Fixed or Wire Cut Plates

page 73
06_Uso_en.fm
Use
Bisky
6.13 Introduction of the rotary, fixed or wire cut plates
To make the plates receive the motion from the machine and avoid damage during the
processing, they must be correctly inserted into their working seat (1) so as to activate the
safety limit switch (2); when the plate is in place, fix it by fastening the screws (3).

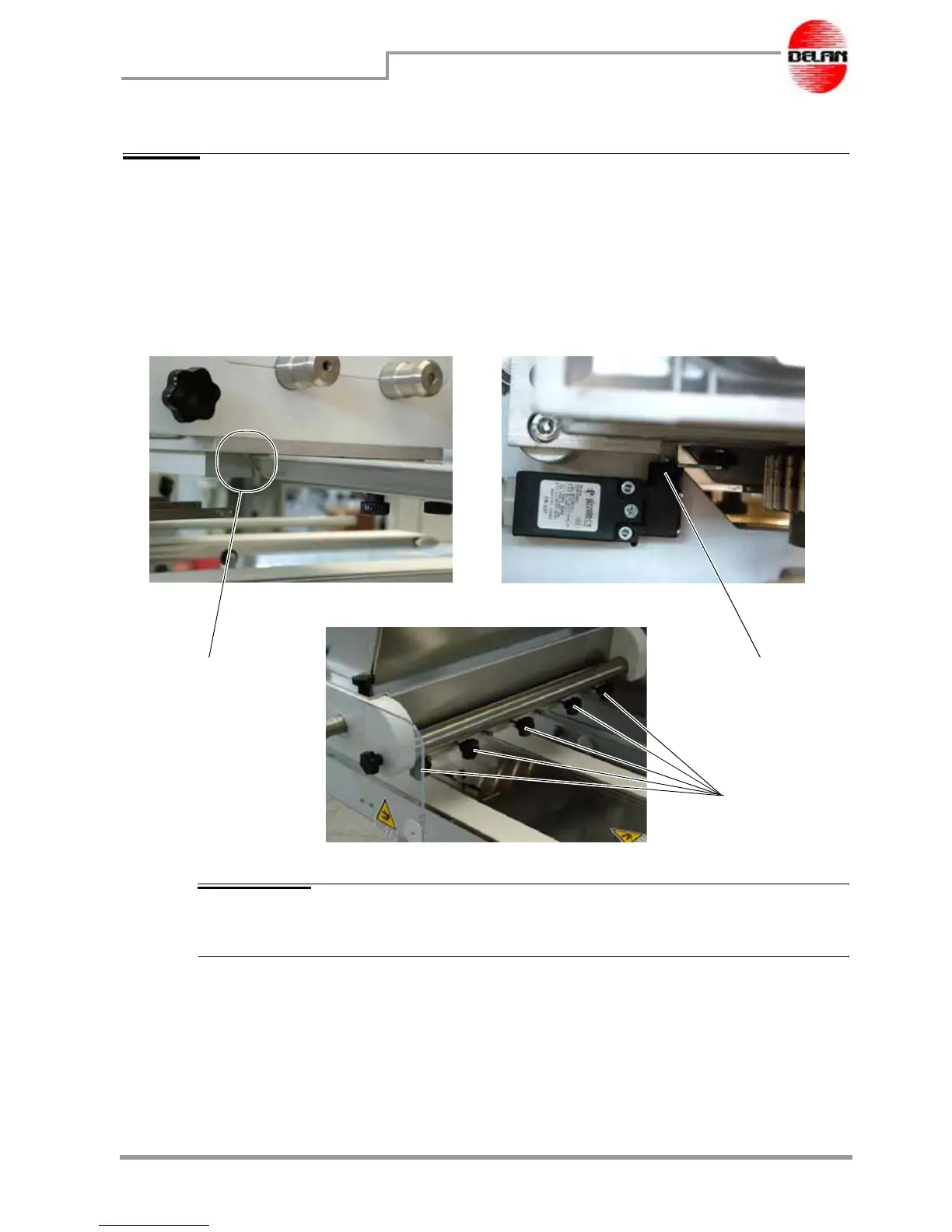

Fig. 6.3 Plate block
BEWARE it is very important that the stop bolt (1) touches the aluminum plate (dove
tail shape) fixed to the main head.
12
3
