Adjusting the height of the dough extrusion
Bisky
Chapter 8 Adjusting the height of the dough
extrusion table
ATTENTION TCarry out all the adjustments inside the machine only after having
disconnected the machine from both electric and pneumatic supply.
8.1 Height adjustment

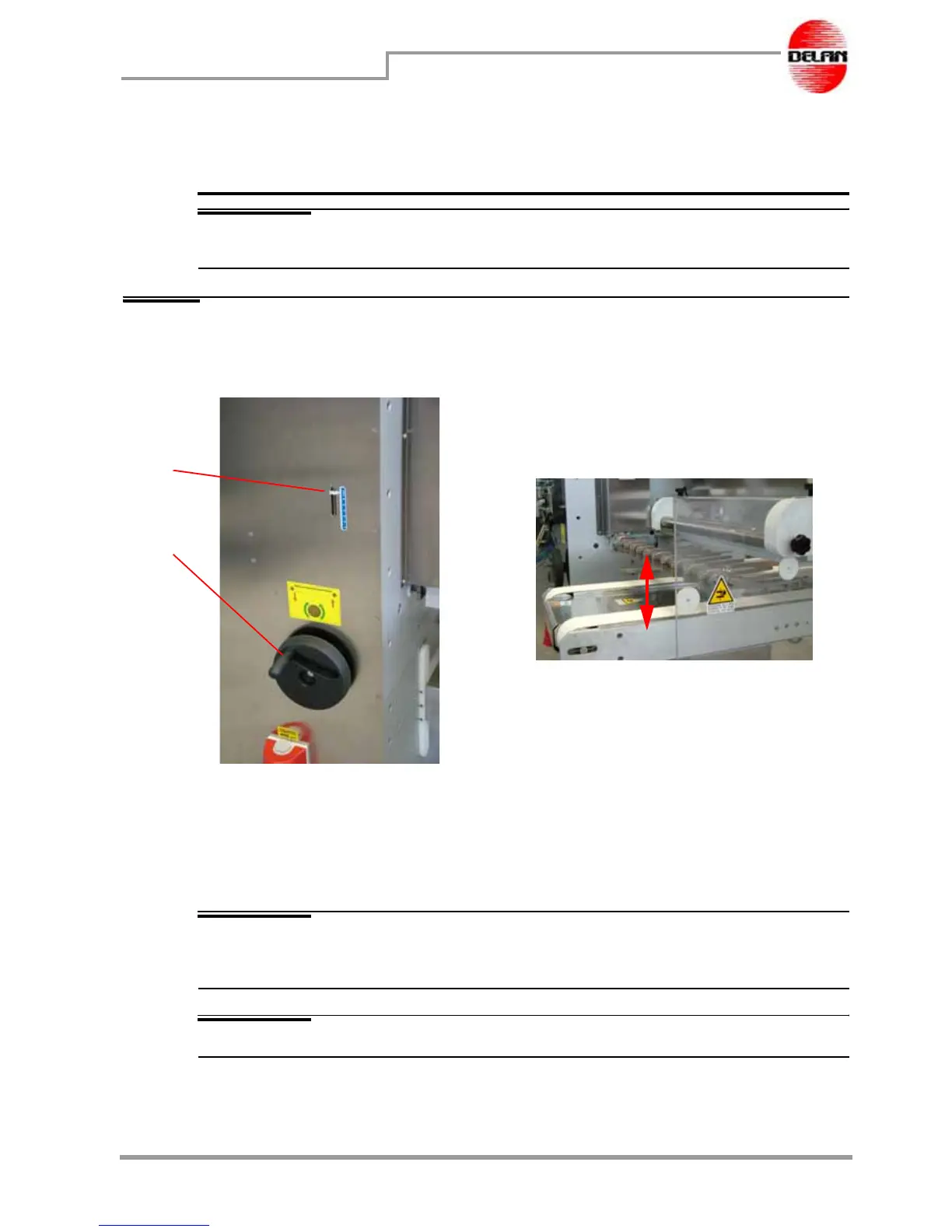

Fig. 8.1 Adjustment handwheel
Use the handwheel (1) to adjust the height between the extrusion table and the product
outfeed point.
1. Turn the handwheel clockwise or anticlockwise to raise or lower the height
accordingly.
Use the reference indicator (2) to check the height of the table.
NOTE Determining the correct height of the extrusion table is fundamental be it for
the wire cut processing -to avoid any displacements of the biscuits on the
tray- or for the nozzle processing -to grant regular shape to the biscuits-.
NOTE For cut wire processing, it is recommended to set the table to its top height.
1
2
