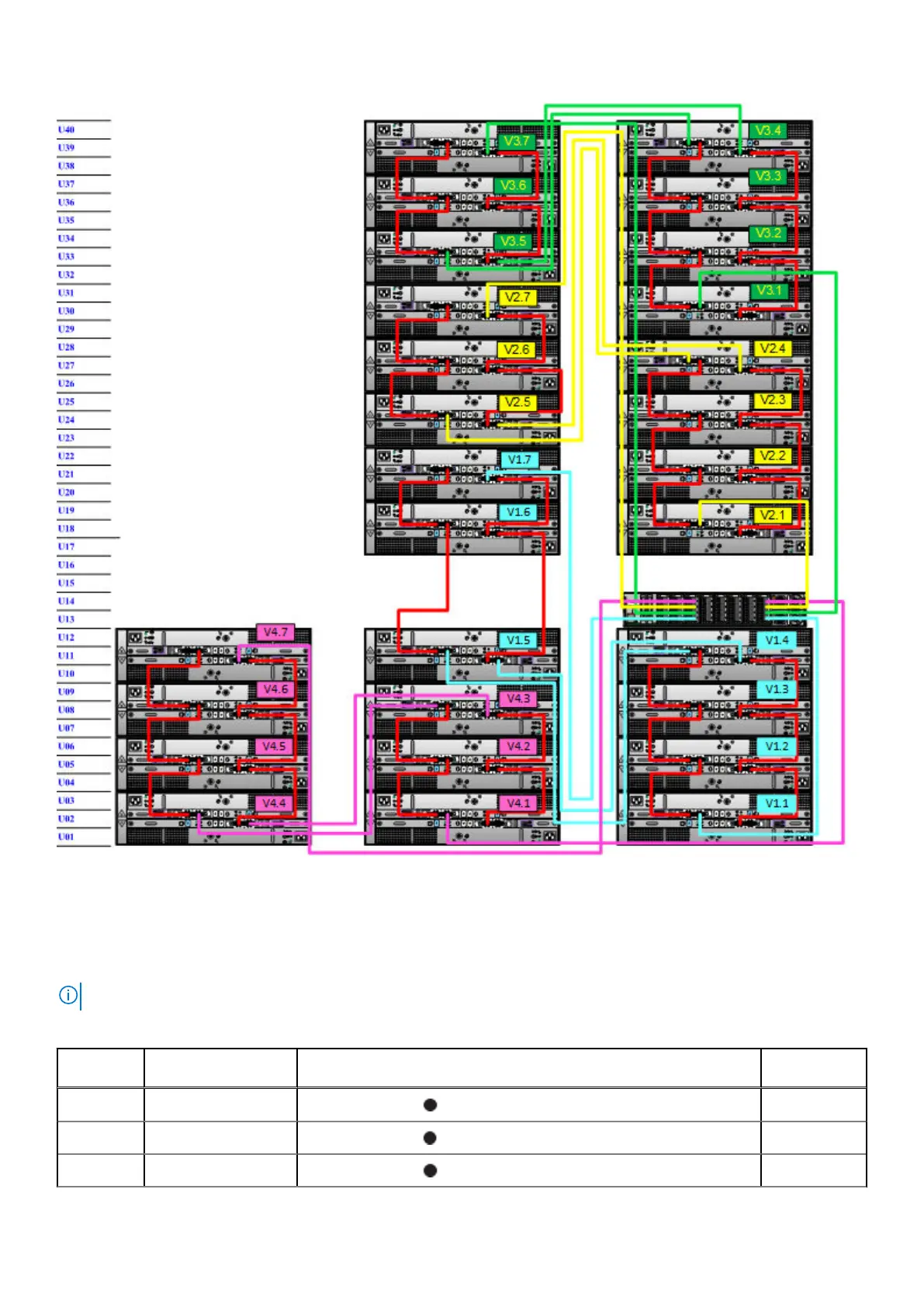

Figure 49. DD6800 with ES30 shelves, single node, DD Cloud Tier, or ER
D
D6800 (HA or HA with DD Cloud Tier)
DD6800 systems supports a maximum of 28 shelves, divided into four sets of seven shelves.
NOTE: For configurations of 16 SAS shelves or less, do not exceed four shelves per set.
Table 9. DD6800 with ES30 primary node cabling instructions
String
(Loop)
I/O - Port Shelf Port Length
a
1 I/O 7 - Port 0
B controller HOST port of shelf V1.1
2M
1 I/O 2 - Port 0
A controller HOST
port of the highest number shelf in V1
2M
2 I/O 7 - Port 2
B controller HOST port of shelf V2.1
2M
Connect Cables and Power On 51
