Table 17. DD6800 with DS60 ERSO (continued)
String
(
Loop)
I/O - Port Shelf Port Length
a
3 I/O 7 - Port 2 A controller port 0 of shelf V3.1 2M
3 I/O 2 - Port 2 B controller port 0 of the highest number shelf in V3 5M
4 I/O 7 - Port 3 A controller port 0 of shelf V4.1 5M
4 I/O 2 - Port 3 B controller port 0 of the highest number shelf in V4 5M
a.
C
able lengths shown are designed for Data Domain racks. Longer cables (up to 5M) can be used.

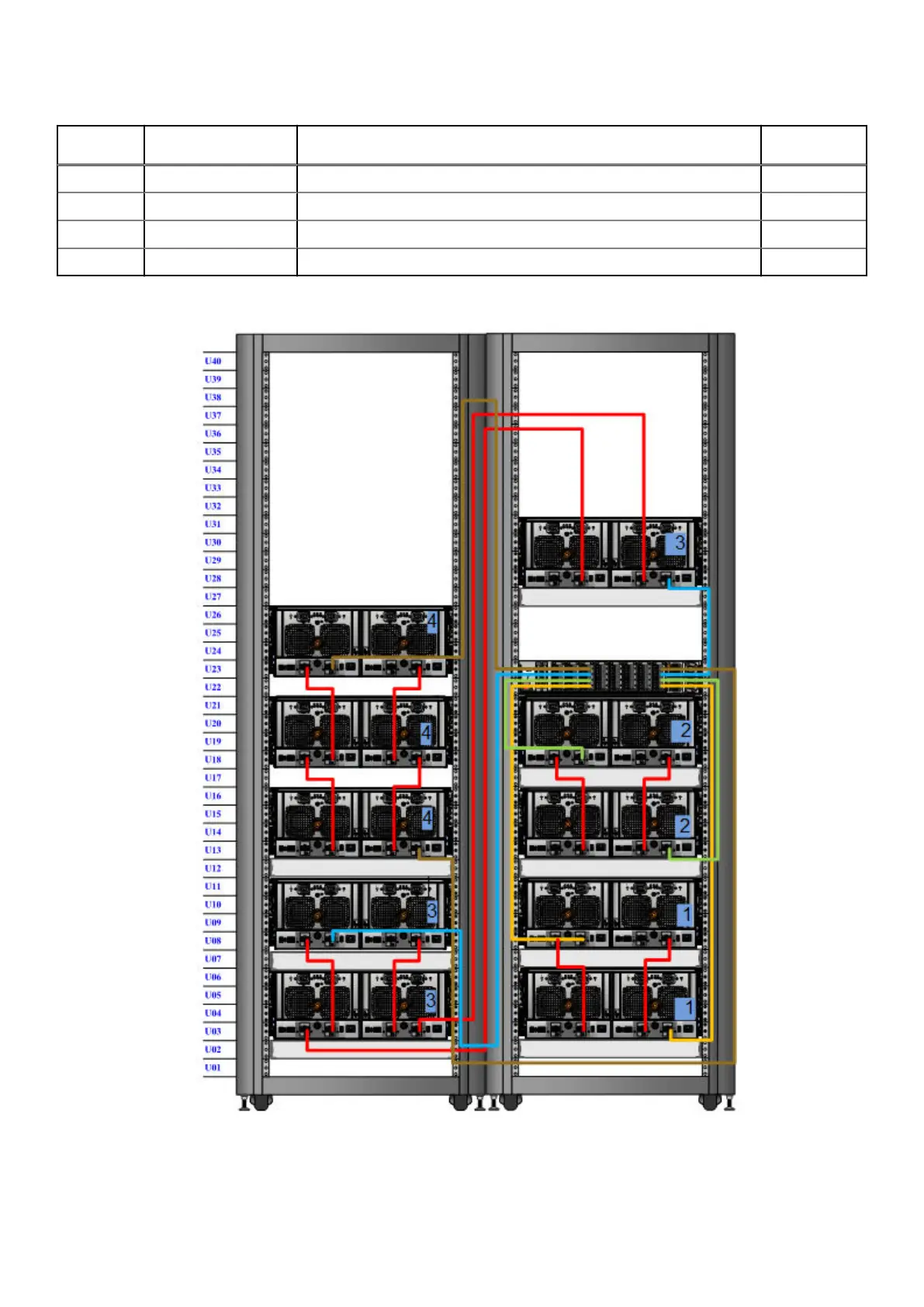

Figure 55. DD6800 with DS60 shelves, ERSO
Connect Cables and Power On 61
