Dell EMC Data Domain DD6800 - DD6800 with DD Cloud Tier; DD6800 with DS60 Shelves, HA; DD6800 with DS60 DD Cloud Tier Cabling Instructions

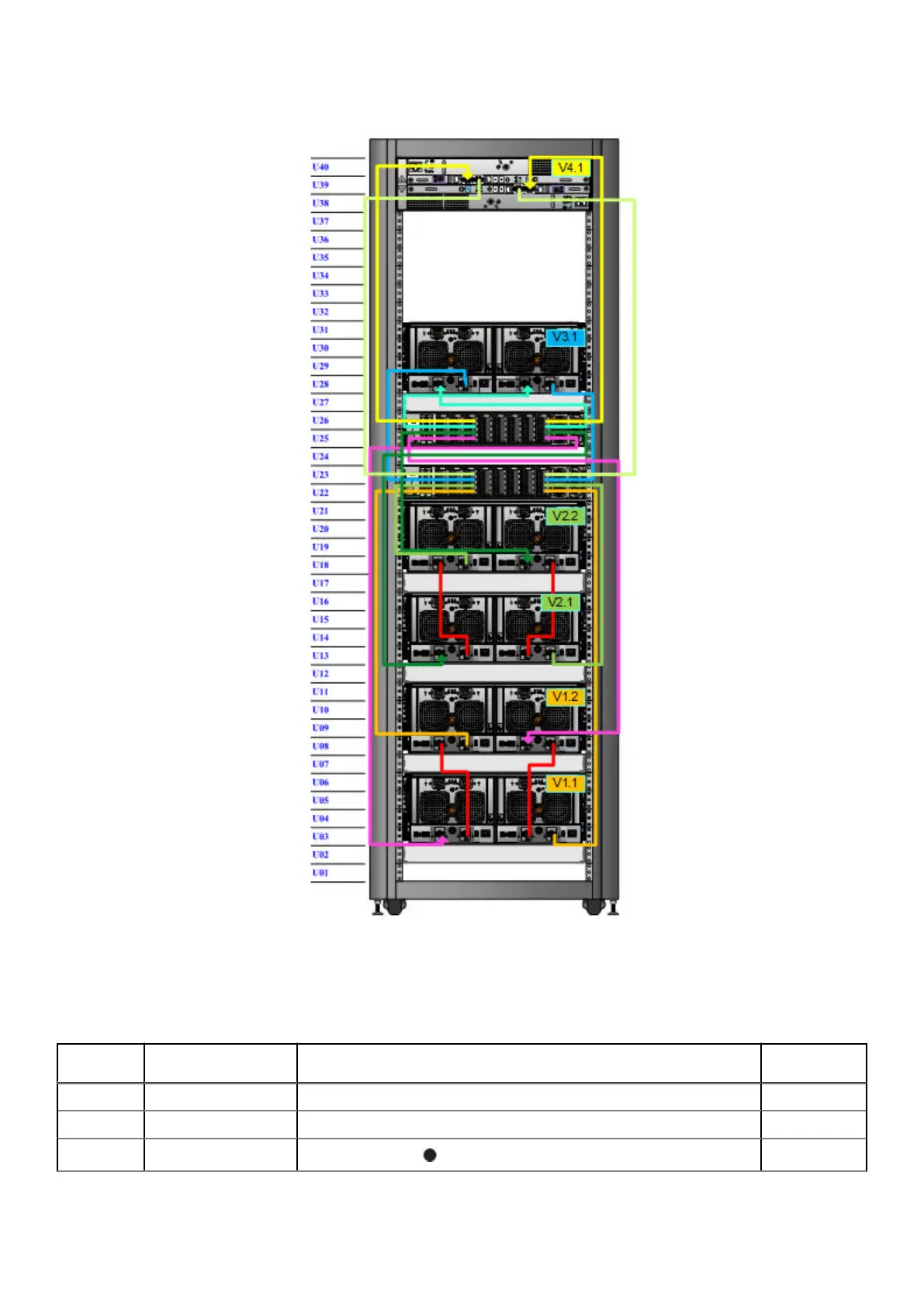

Figure 52. DD6800 with DS60 shelves, HA
D
D6800 with DD Cloud Tier
Table 14. DD6800 with DS60 DD Cloud Tier cabling instructions
String
(
Loop)
I/O - Port Shelf Port Length
a
1 I/O 7 - Port 0 A controller port 0 of shelf V1.1 2M
1 I/O 2 - Port 0 B controller port 0 of the highest number shelf in V1 2M
2 I/O 7 - Port 1
A controller HOST
port of the second metadata shelf
2M
Connect Cables and Power On 57
