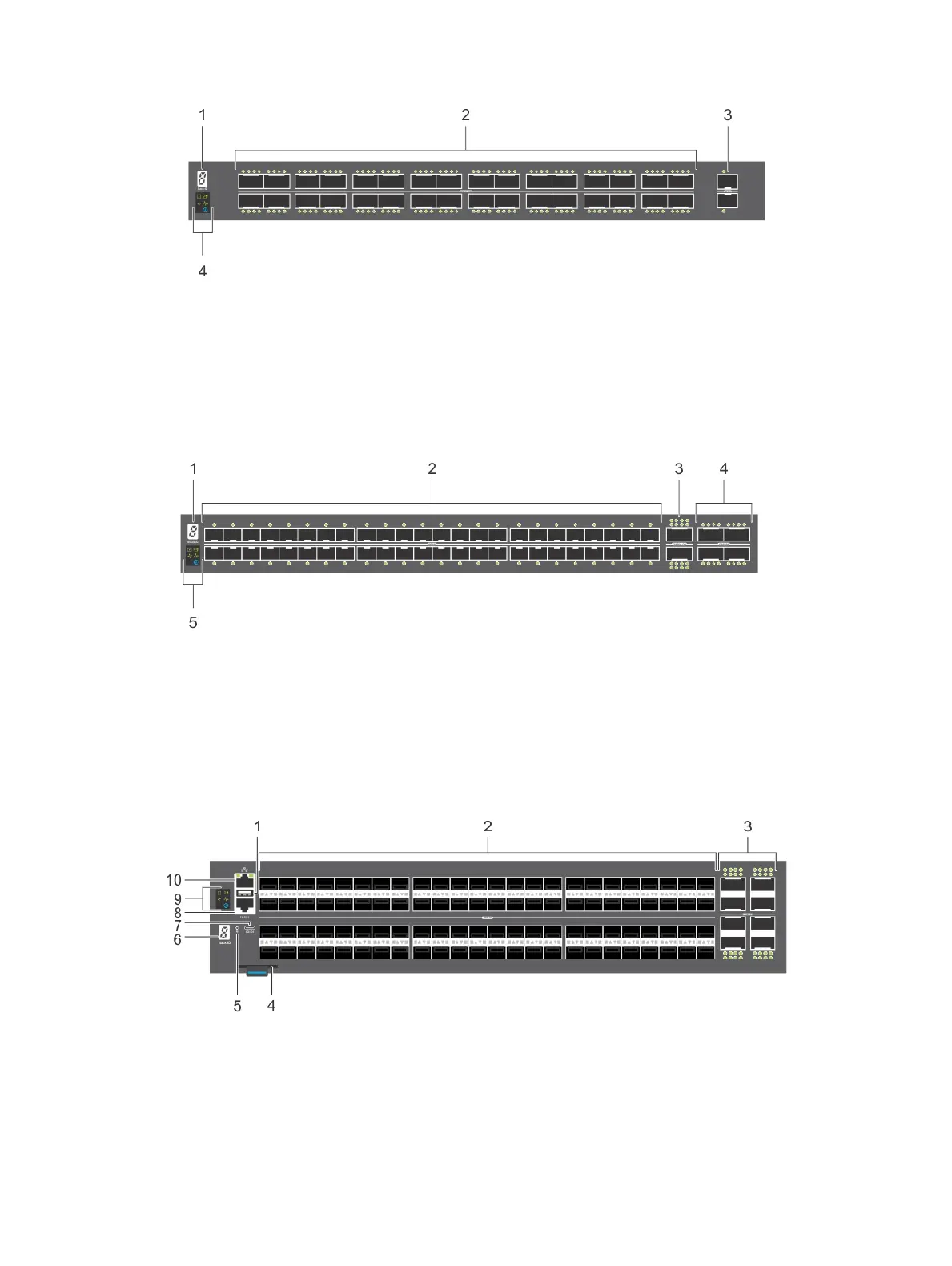

Figure 2. S5232F-ON switch I/O-side view
1 Stack ID 2 Thirty-two QSFP28 ports
3 Two SFP+ ports 4 LED Status Icons
Figure 3. S5248F-ON switch I/O-side view
1
Stack ID 2 Forty-eight 25GbE SFP28 ports
3 Two QSFP-DD ports 4 Four 100GbE QSFP28 ports
5 LED status icons
Figure 4. S5296F-ON switch I/O-side view
1
USB Type A 2 Ninety-six SFP28 ports
3 Eight 100GbE QSFP28 ports 4 Luggage tag
