5 Reset button 6 Stack ID
7 MicroUSB-B port 8 RS-232 console port
9 LED status icons 10 RJ-45 console port
The S5200F-ON Series switch has one RJ-45 serial console port, one Micro-USB type-B console port, one 10/100/1000 Base-T Ethernet
management port, one USB type-A port for the external storage, and for the S5296F-ON switch only, one USB extension cable, packaged
separately. Management ports are located on the PSU-side of the switch.

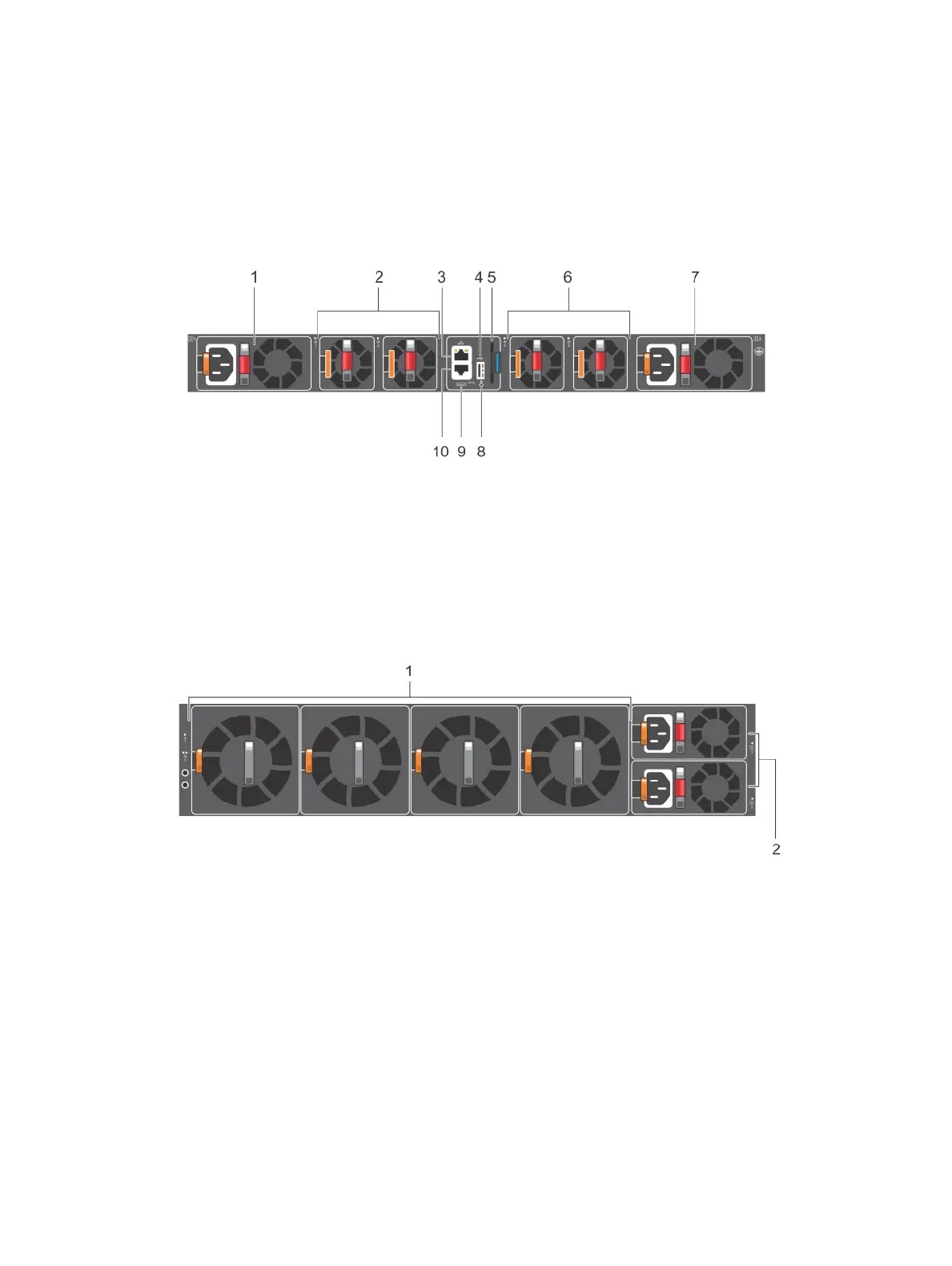

Figure 5. S5232F-ON or S5248F-ON switch PSU-side view
1
PSU1 2 Fan modules
3 RJ-45 console port 4 USB Type A
5 Luggage tag 6 Fan modules
7 PSU2 8 Reset button
9 MicroUSB-B port 10 RJ-45 management port
Figure 6. S5296F-ON switch PSU-side view
1
Fan units 2 PSU units
Features
The S5200F-ON Series switch oers the following features:
• Ports:
– S5232F-ON—thirty-two 100GbE QSFP28 ports and two 10GbE SFP+ ports
– S5248F-ON—forty-eight 25GbE SFP28 ports, four 100GbE QSFP28 ports, and two 200GbE QSFP-DD ports
– S5296F-ON—ninety-six 25GbE SFP28 ports and eight 100GbE QSFP28 ports
• One MicroUSB-B console port
S5200F-ON Series switch
9
