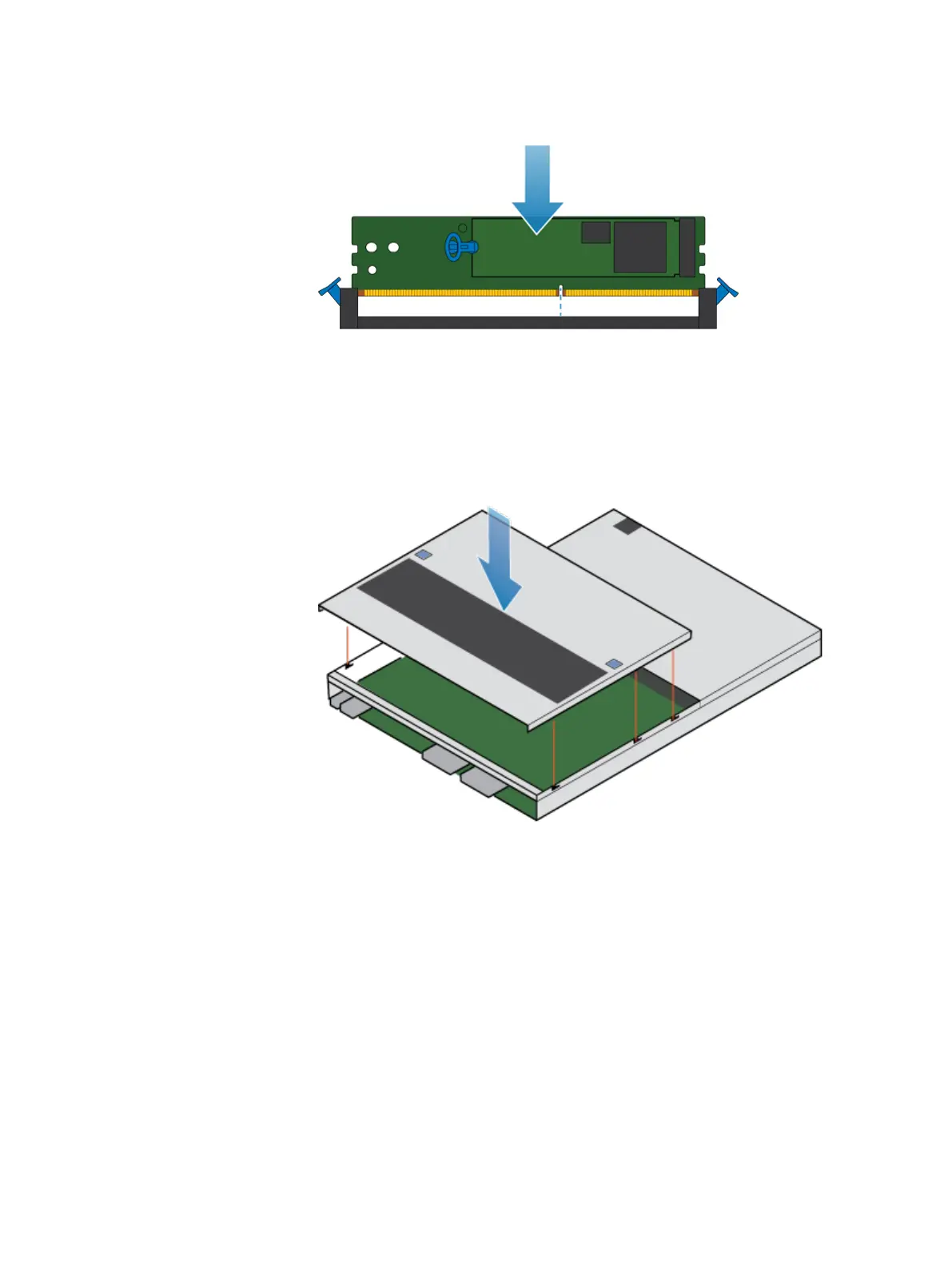

Figure 104 Installing the M.2 SSD adaptor
Install the top cover on the SP assembly
Procedure
1. Position the top cover over the SP assembly and align it with the slots in the
sides at the rear of the SP assembly.
Figure 105 Aligning the top cover
2. Pull the top cover forward to secure it in place.
Service Procedures
Install the top cover on the SP assembly 103
