Install an embedded module
Procedure
1. Align the embedded module with the empty slot and carefully push it into the
slot.
As the embedded module is installed, the release lever rotates inward.

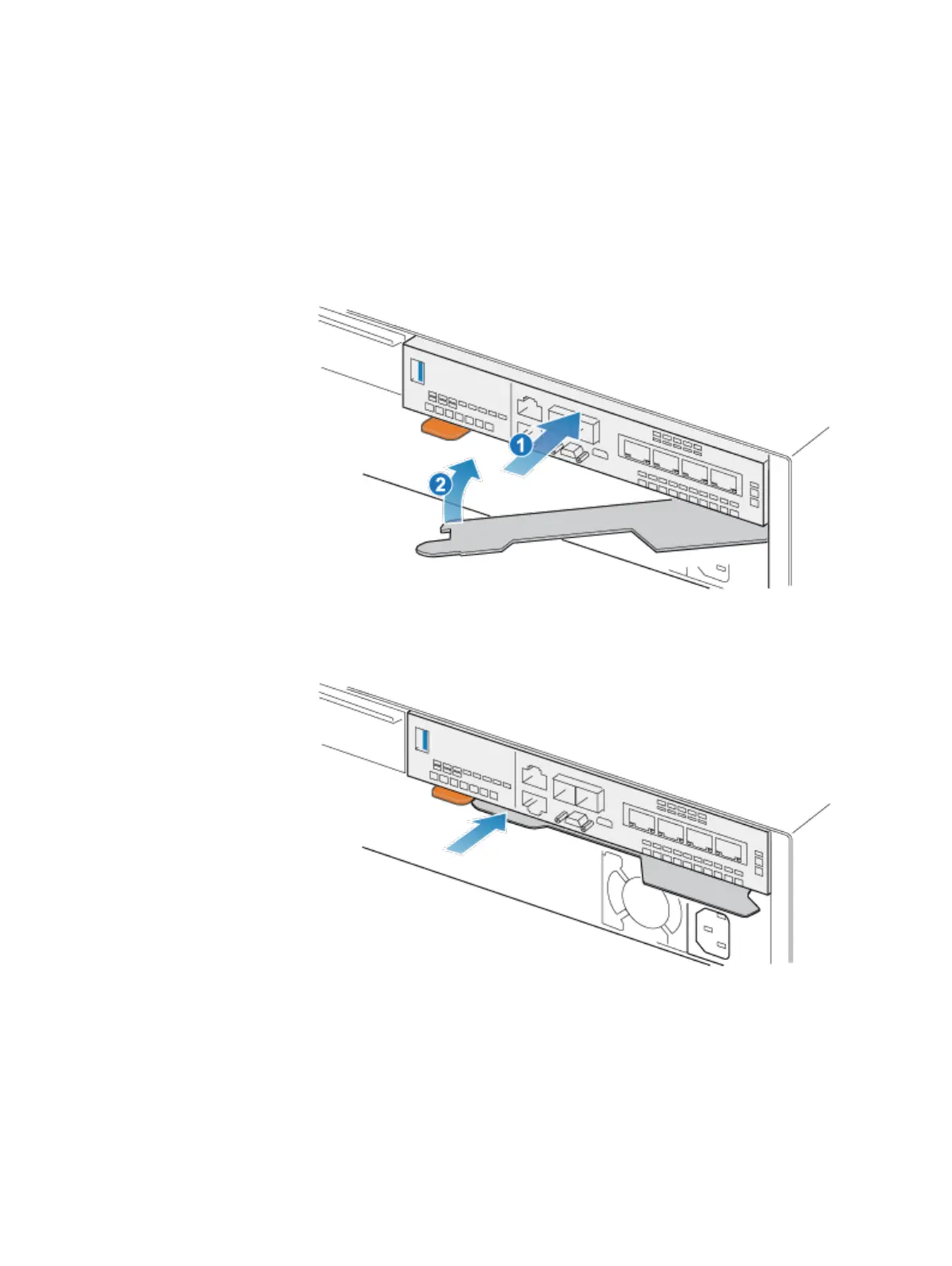

Figure 43 Installing the embedded module
2. When the embedded module is fully seated, push the release lever back into the
system until the orange tab locks the lever in place.
Figure 44
Locking the release lever
3. Connect each cable into the same port from which it was removed.
Rebooting a SP assembly into Normal Mode
Before you begin
Ensure that the replacement I/O module, embedded module, or 4-port card has been
correctly installed using Unisphere. The replaced part's status indicates that the
module is powered off and will power on during the next system reboot.
Reboot the recently serviced SP assembly into Normal Mode using the procedure that
follows:
Service Procedures
Install an embedded module 55
