4. Use the release handle to pull the SP assembly outward enough to grasp the
sides with both hands. Then, with both hands supporting the SP assembly, pull
the SP assembly fully out of the enclosure.

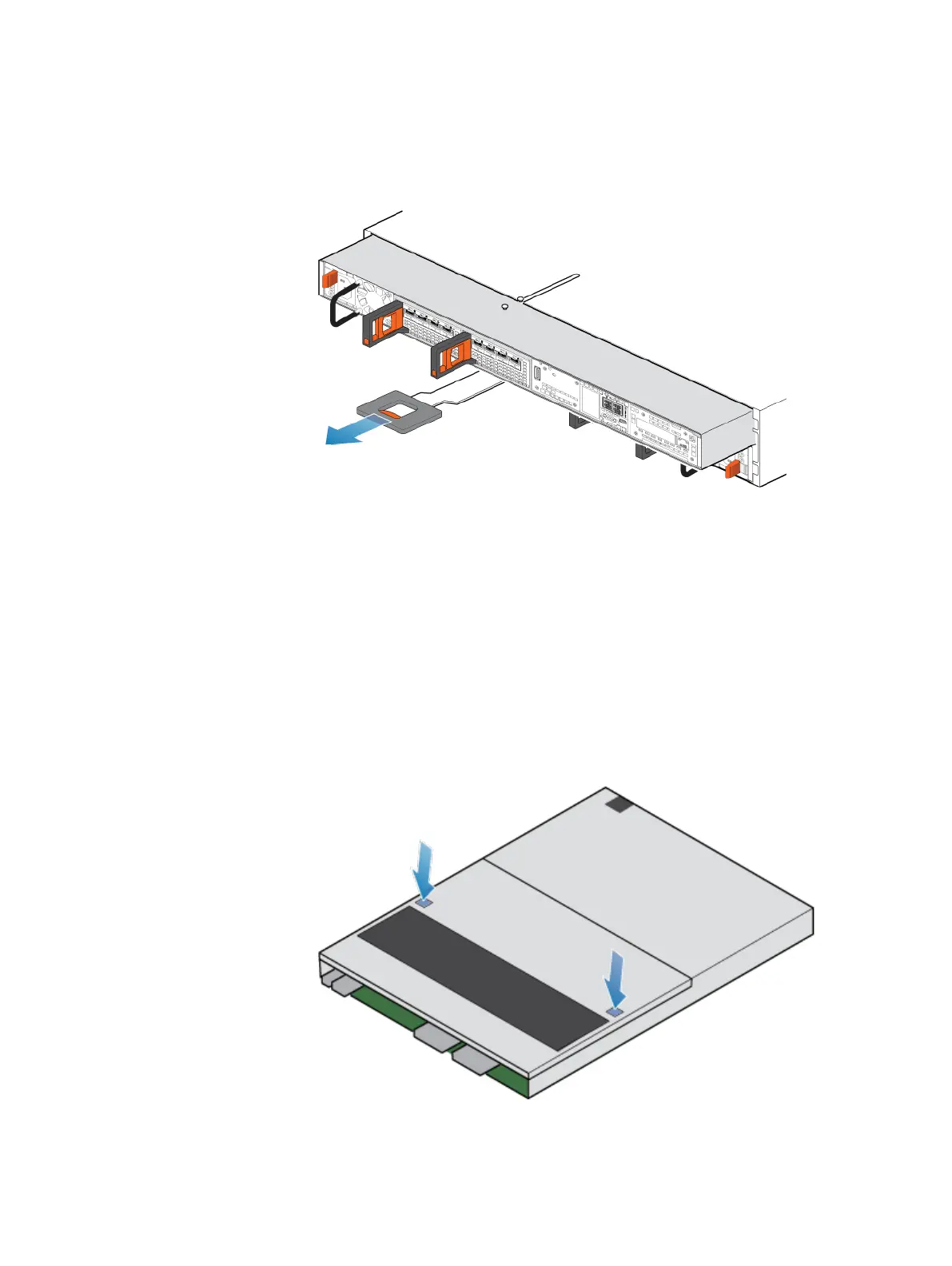

Figure 86 Removing the SP assembly
5. Place the SP assembly on a clean, flat, static-free work surface.
Remove the top cover from the SP assembly
Before you begin
Ensure that the internal battery has powered off before removing the top cover. After
removing the SP assembly from the rack, wait at least 30 seconds, or until you hear
the internal battery power off.
Procedure
1. While pushing down the two blue release buttons, slide the top cover towards
the rear of the system, until it stops.
Figure 87
Releasing the top cover
2. Lift the top cover upward and remove it from the SP assembly.
Service Procedures
Remove the top cover from the SP assembly 91
