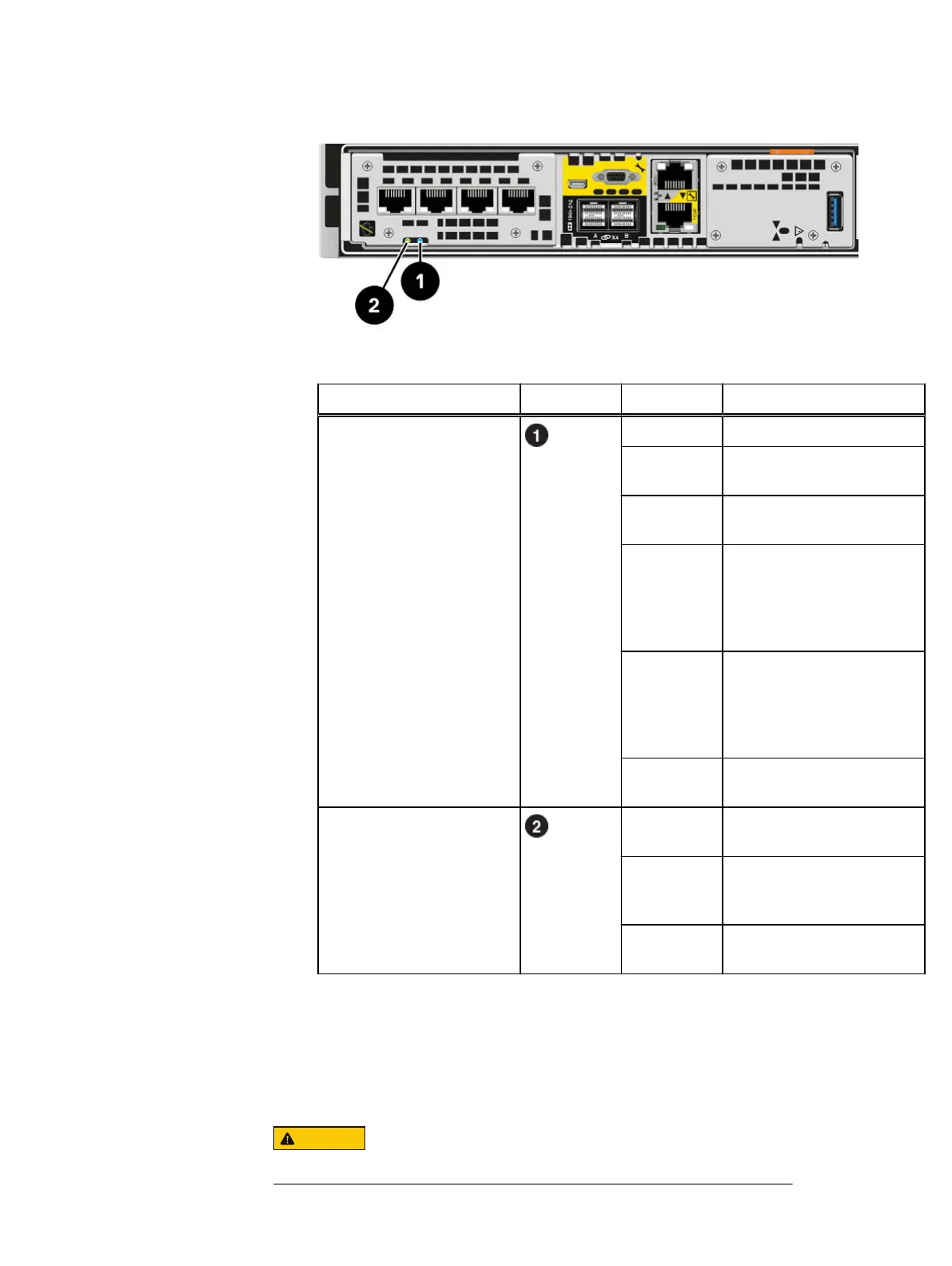

Figure 83 Storage processor assembly LEDs
Table 8 Storage processor assembly LEDs
LED Location State Description
Storage processor assembly
fault
Amber Fault has occurred.
Blue A management IP address has
been assigned.
Amber or blue
blinking
System is booting.
Blue and
amber
alternating
(blue for 3
seconds)
System not initialized. A
management IP address has
not been assigned.
Blue and
amber
alternating at
one second
intervals
Storage processor assembly
in Service Mode.
Off No fault has occurred, normal
operation.
Storage processor assembly
power
Green Storage processor assembly
is on (main power).
Green blinking Storage processor assembly
is initializing a serial over LAN
session (Standby Mode).
Off Storage processor assembly
is off.
Remove the SP assembly
This procedure describes how to remove a SP assembly from the chassis. There are
two SP assembliess. The top SP assembly is considered to be upside-down and
mirrors the bottom SP assembly. The illustration shows the removal of the bottom SP
assembly. The procedure for removing the top SP assembly is the same.
CAUTION
Do not remove a SP assembly while the "Unsafe to remove" LED is lit.
Service Procedures
Remove the SP assembly 89
