Figure 57 Locking the 4-port card into position
5. Replace the air dam and tighten the four captive screws.
6. Install the SFPs into the embedded module.
Install an embedded module
Procedure
1. Align the embedded module with the empty slot and carefully push it into the
slot.
As the embedded module is installed, the release lever rotates inward.

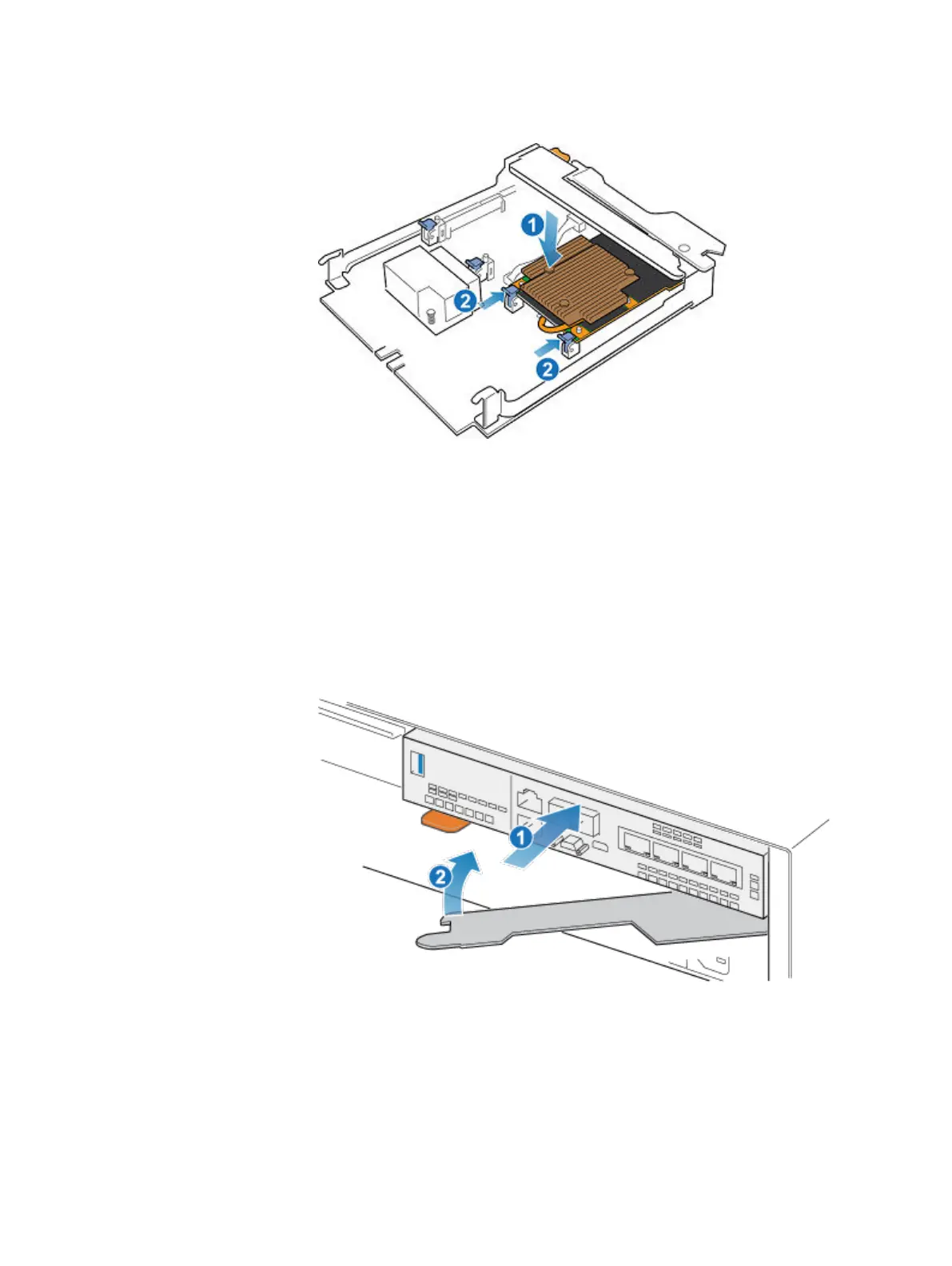

Figure 58
Installing the embedded module
2. When the embedded module is fully seated, push the release lever back into the
system until the orange tab locks the lever in place.
Service Procedures
Install an embedded module 67
