The SP A and SP B network management ports must be connected on the same
subnet. In general, both SPs should have mirrored configurations in order to
provide failover.

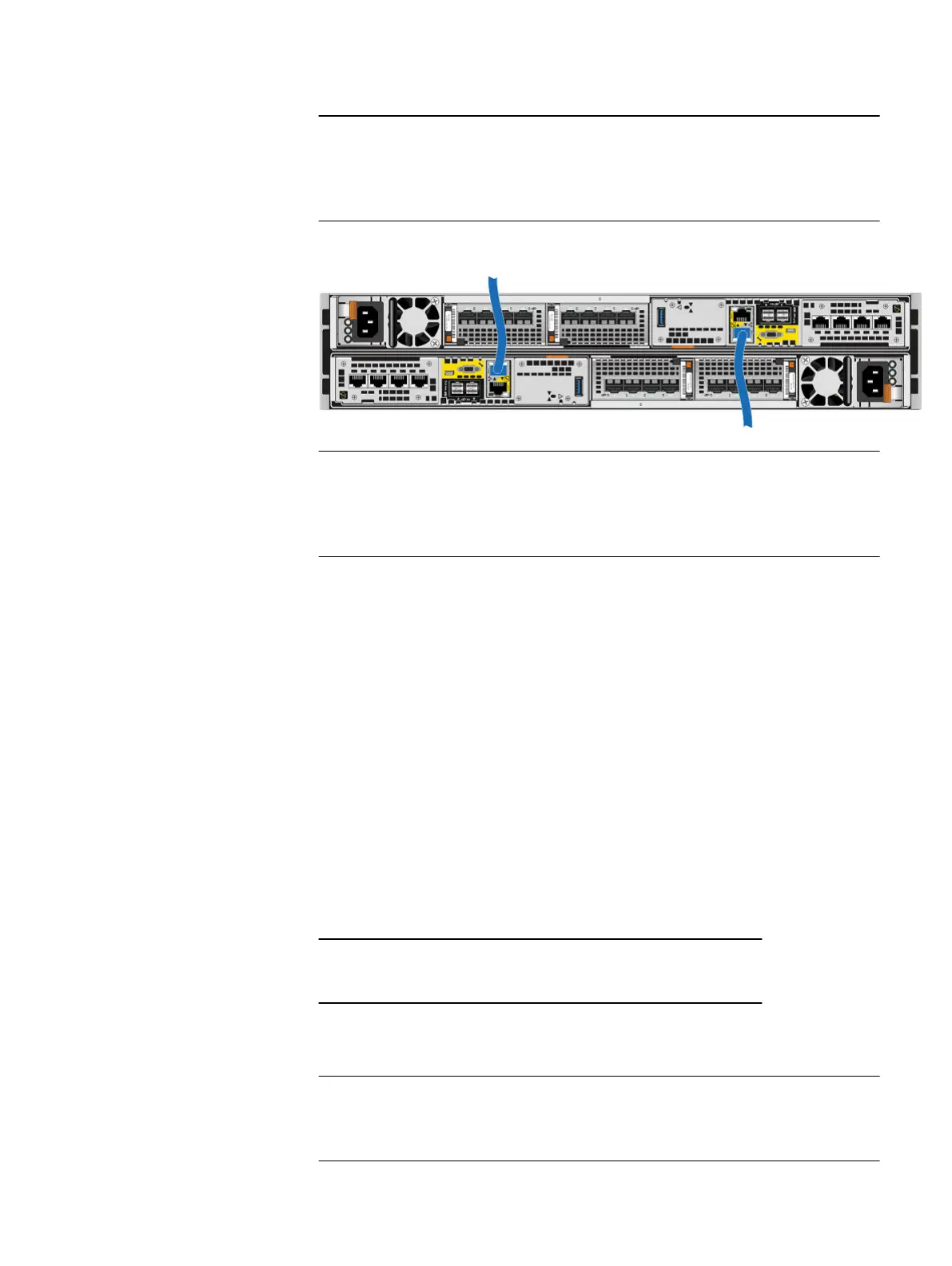

Figure 5 Cabling the storage processors to the network
Additional information about the ports and cabling is in the
Hardware Information
Guide
, available on the Unity Info Hub at http://bit.ly/unityinfohub or on Online
Support (https://support.emc.com/products/39949).
Install optional DAEs
If you are installing one or more optional DAEs, see Unpack the (optional) disk-array
enclosures on page 25 for installation instructions.
If you are not installing an optional DAE, continue to the next section.
Connect power to the DPE
Before you begin
All components must be racked and the network cabling completed before connecting
the storage system to power and booting the system.
Procedure
1. Verify that the cabinet circuit breakers are in the On position and that power is
connected to the cabinet.
No power cables should be connected to the PDUs at this time.
2. Attach a double-sided Shut Down Procedure cable label to each power cable
using the tie wraps included in the Accessory Kit.
Attach each label close to the end of the power cable where it plugs into the
DPE.
Installation Procedures
Install optional DAEs 17
