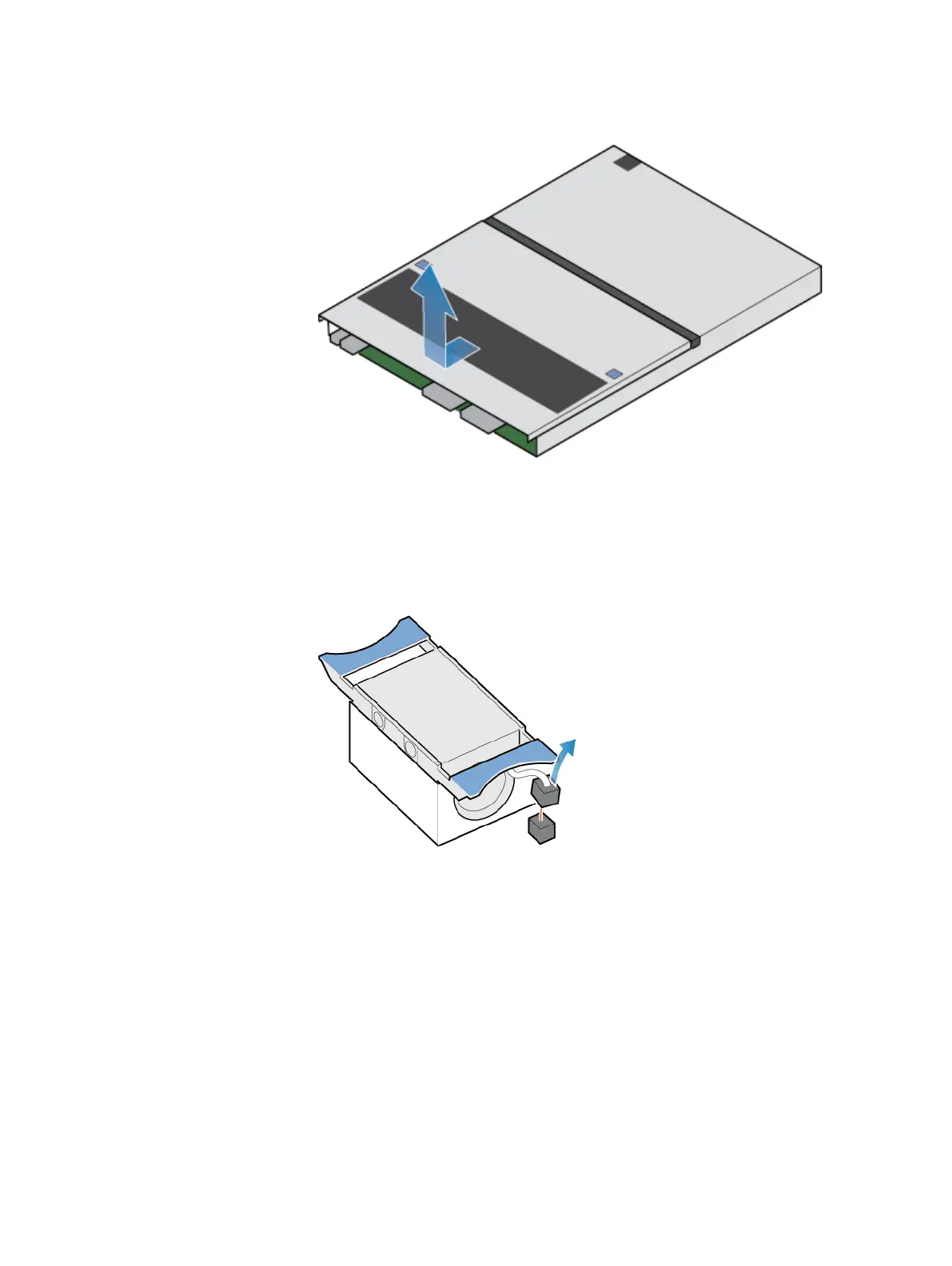

Figure 75 Removing the top cover
Remove the faulted fan module
Procedure
1. Disconnect the fan module power cable from the motherboard.
Figure 76
Disconnecting fan power cable
2. Unhook the fan module power cable from the cable holder.
3. Squeeze the blue release tabs.
4. Lift the fan module away from the motherboard.
Service Procedures
Remove the faulted fan module 83
