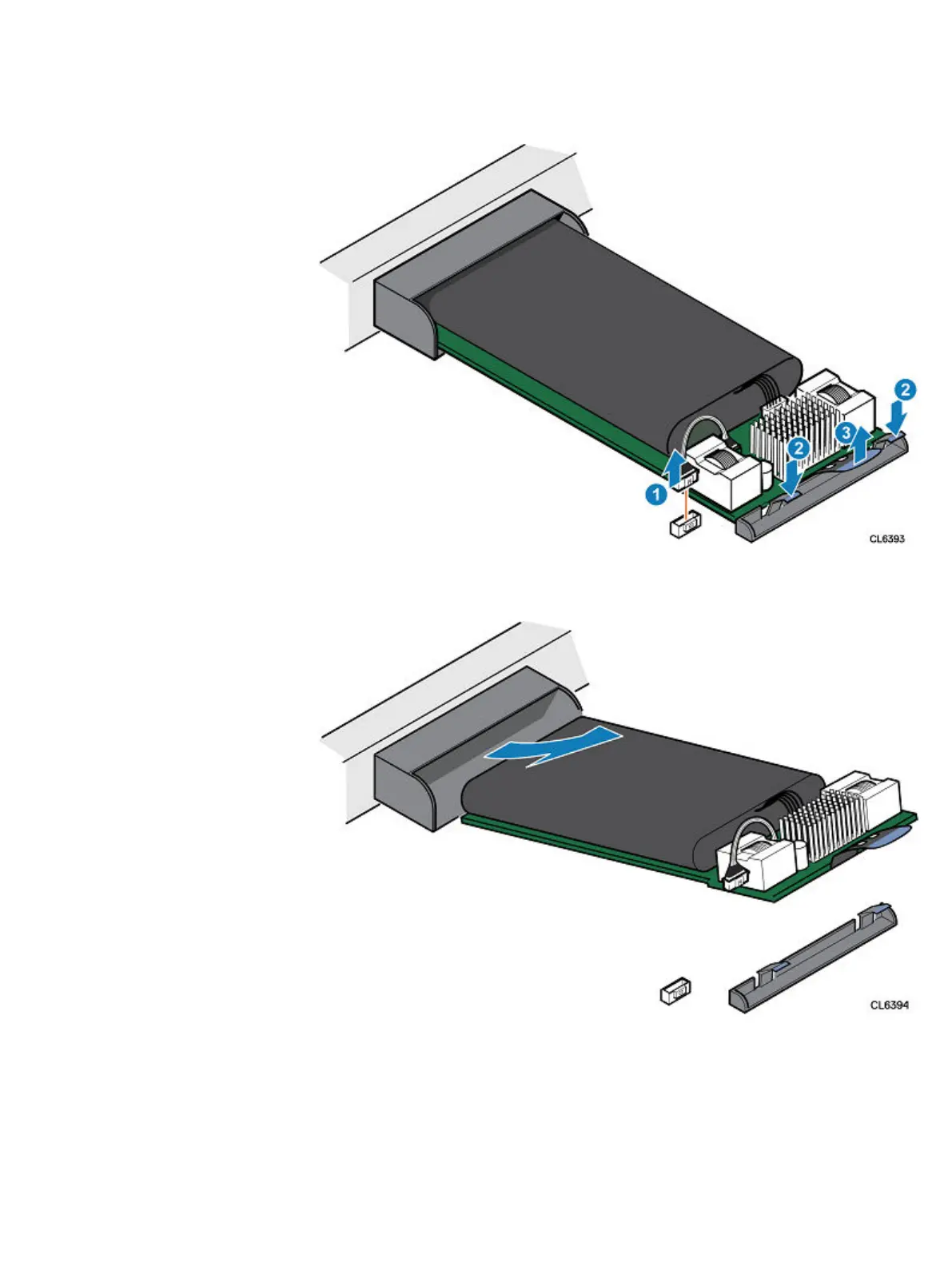

Figure 115 Releasing the internal battery backup module
4. Lift the internal battery backup module away from the motherboard.
Figure 116
Removing the internal battery backup module
5. Remove the cable from the internal battery backup module by squeezing the
white tab and lifting upward.
Install the internal battery backup module
Procedure
1. Connect the internal battery backup module cable to the internal battery
backup module.
Service Procedures
112 Unity 480/F, Unity 680/F, Unity 880/F Installation and Service Guide
