Dell 32 Plus - Back Cover; Removing the Back Cover

16
Disassembly and reassembly

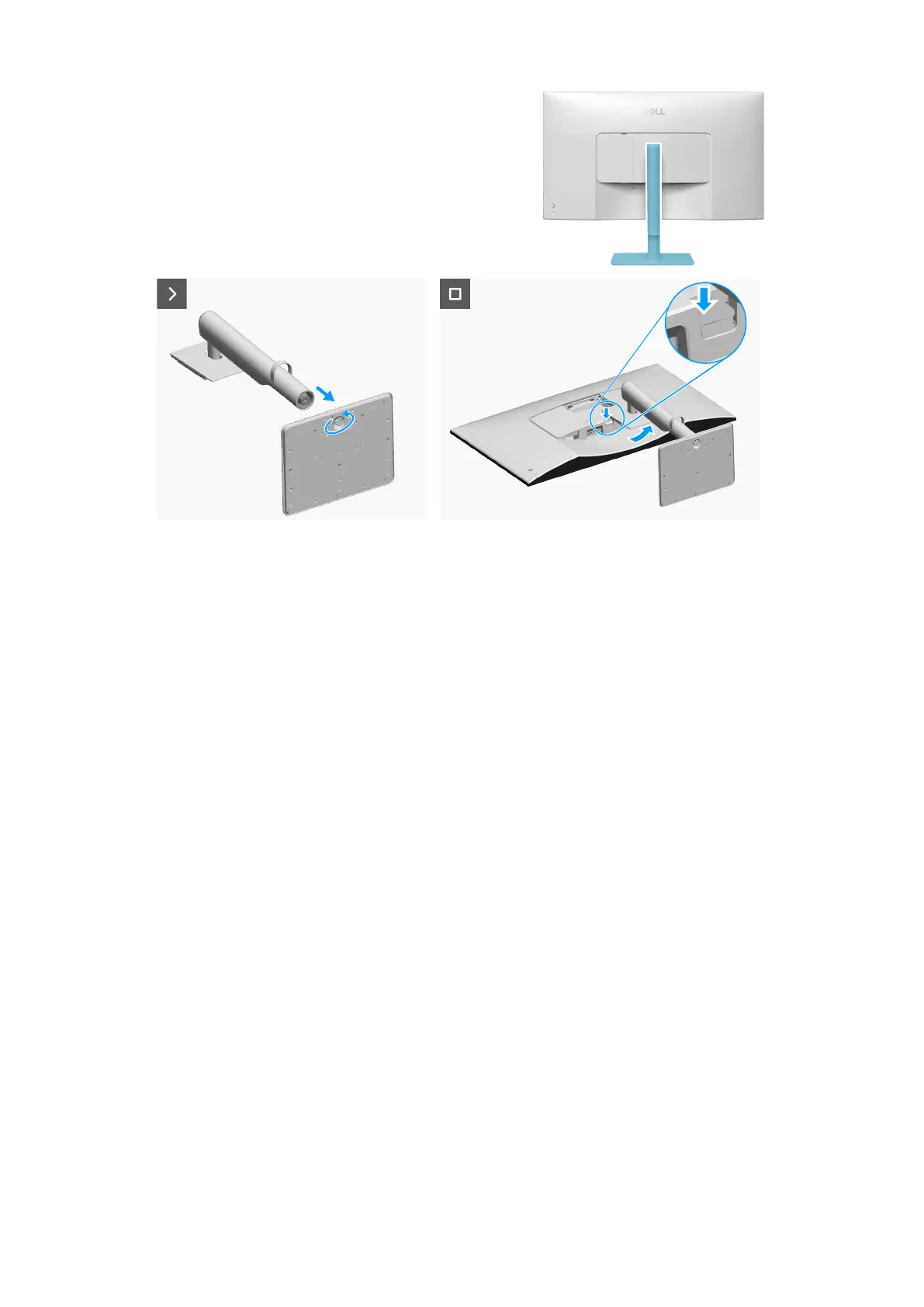

Figure 14. Installing the stand
Steps
1. Align and insert the stand riser into the stand base until it snaps into place.
2. Open the screw handle at the bottom of the stand base and turn it clockwise to secure the stand assembly.
3. Close the screw handle.
4. Align the stand-riser bracket with the grooves at the back of the monitor.
5. Slide and gently press the stand assembly until it snaps into place.
Next steps
1. Follow the procedure in After working inside your monitor.
Back cover
Removing the back cover
Prerequisites
1. Follow the procedure in Before working inside your monitor.
2. Remove the stand.
About this task
The following image indicates the location of the back cover and provides a visual representation of the removal procedure.
