Disassembly and reassembly

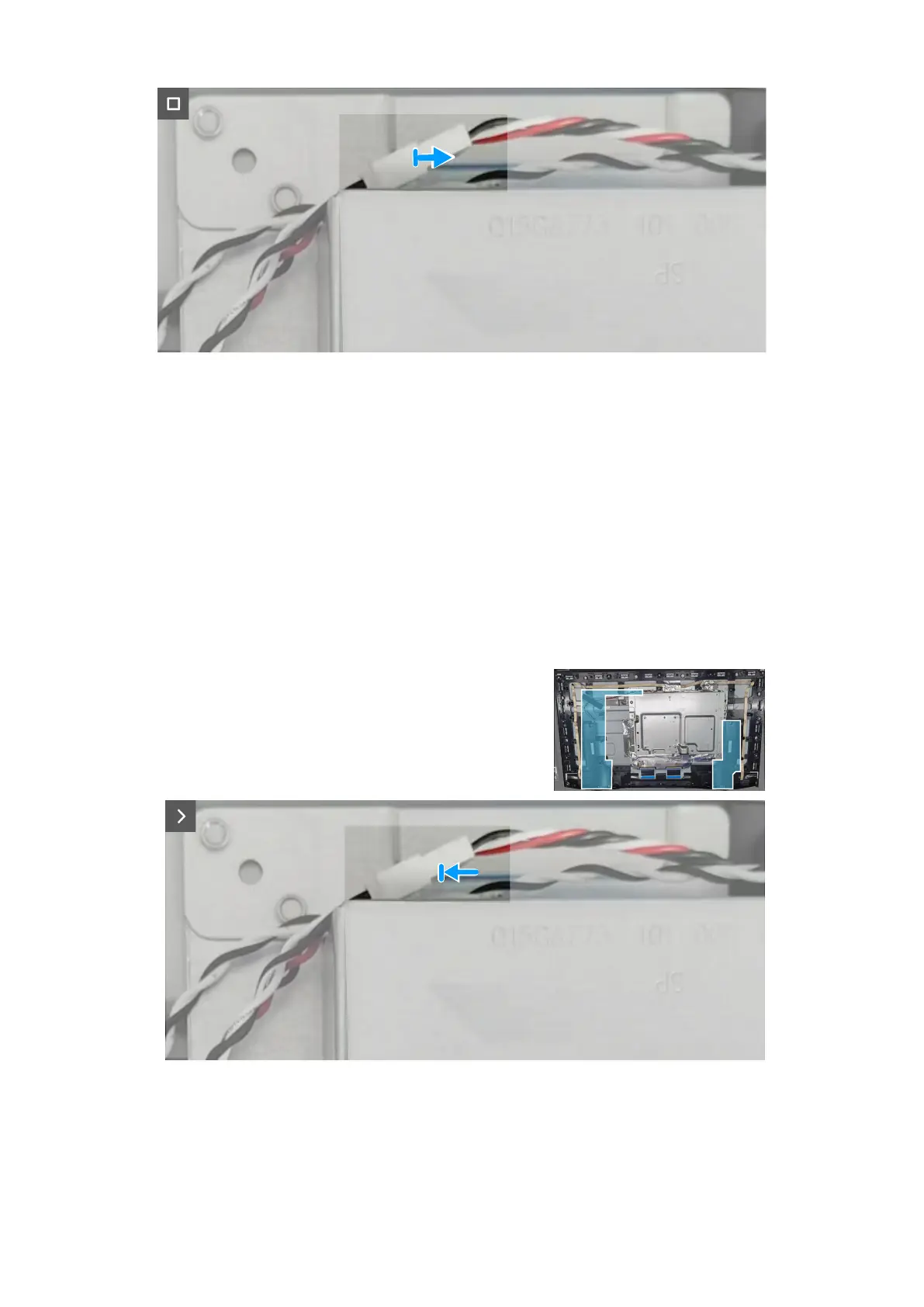

Figure 20. Disconnecting the speaker cable
Steps
1. Peel back the tape that secures the speaker cable to the display panel.
2. Remove the six screws (M3x6) that secure the speakers to the middle frame.
3. Disconnect the speaker cable from the connector on the system board.
4. Lift the speakers away from the chassis.
Installing the speaker
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About the task
The following image indicates the location of the speaker and provides a visual representation of the installation procedure.
Figure 21. Connecting the speaker cable
