Disassembly and reassembly
System board and power board
Removing the system board and power board
Prerequisites
1. Follow the procedure in Before working inside your monitor.
2. Remove the stand.
3. Remove the back cover.
4. Remove the speaker.
5. Remove the metal shield.
About this task
The following image indicates the location of the system board and power board, and provides a visual representation of the removal
procedure.

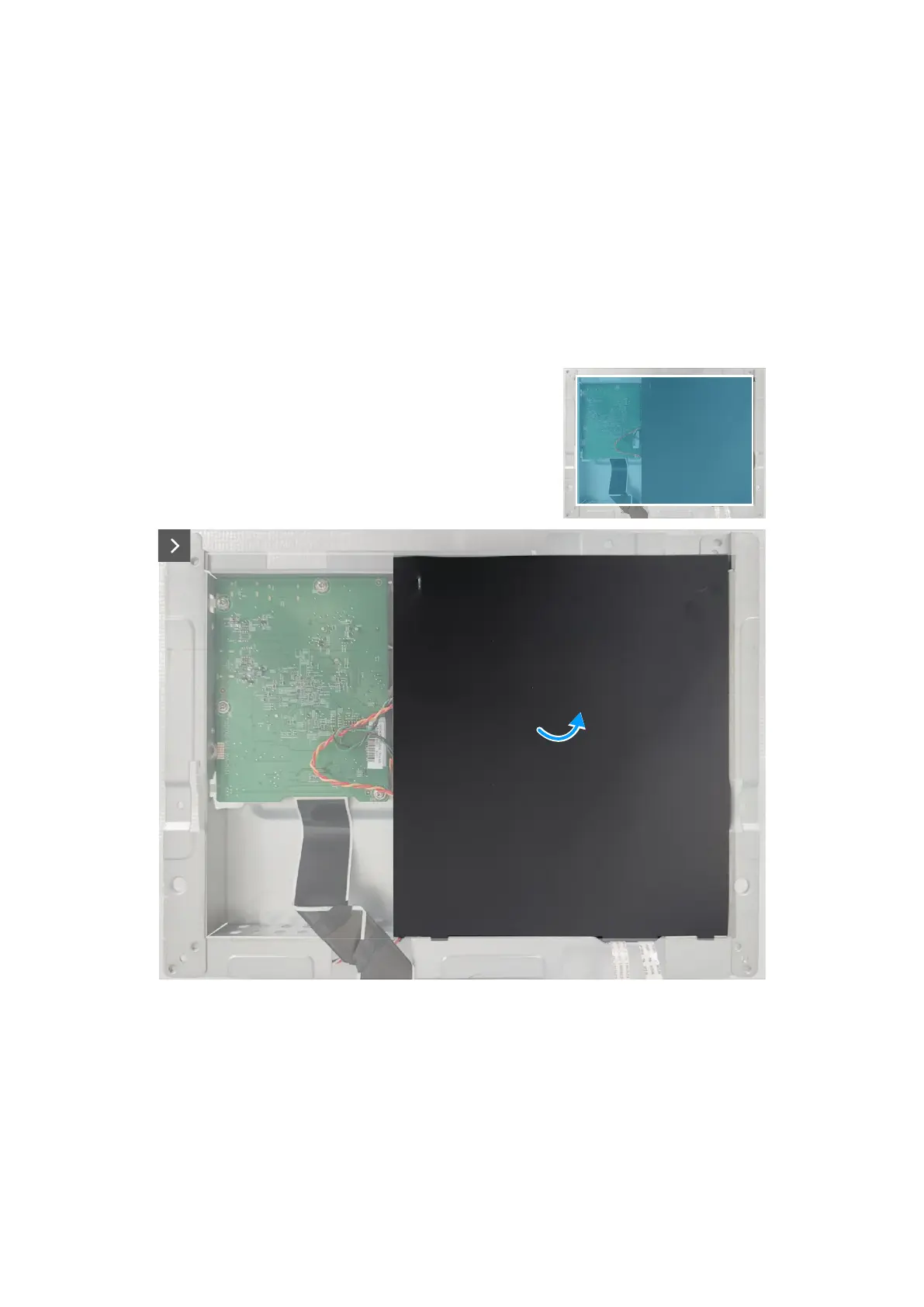

Figure 29. Removing the Mylar sheet
