Dell 32 Plus - Speaker; Removing the Speaker; Removing the Screws

21
Disassembly and reassembly
Speaker
Removing the speaker
Prerequisites
1. Follow the procedure in Before working inside your monitor.
2. Remove the stand.
3. Remove the back cover.
About this task

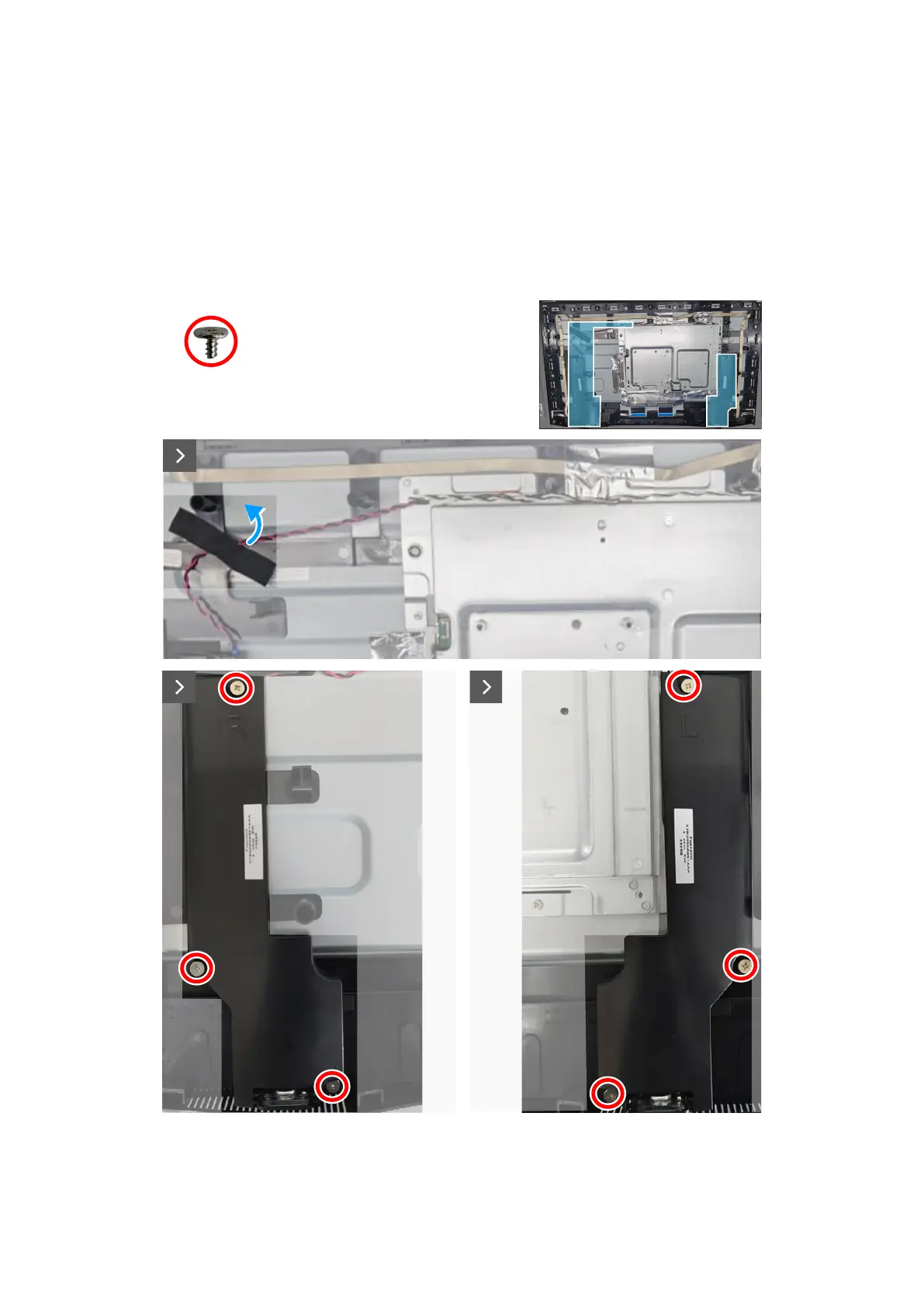

The following image indicates the location of the speaker and provides a visual representation of the removal procedure.
6x
M3x6
Figure 19. Removing the screws
