Disassembly and reassembly

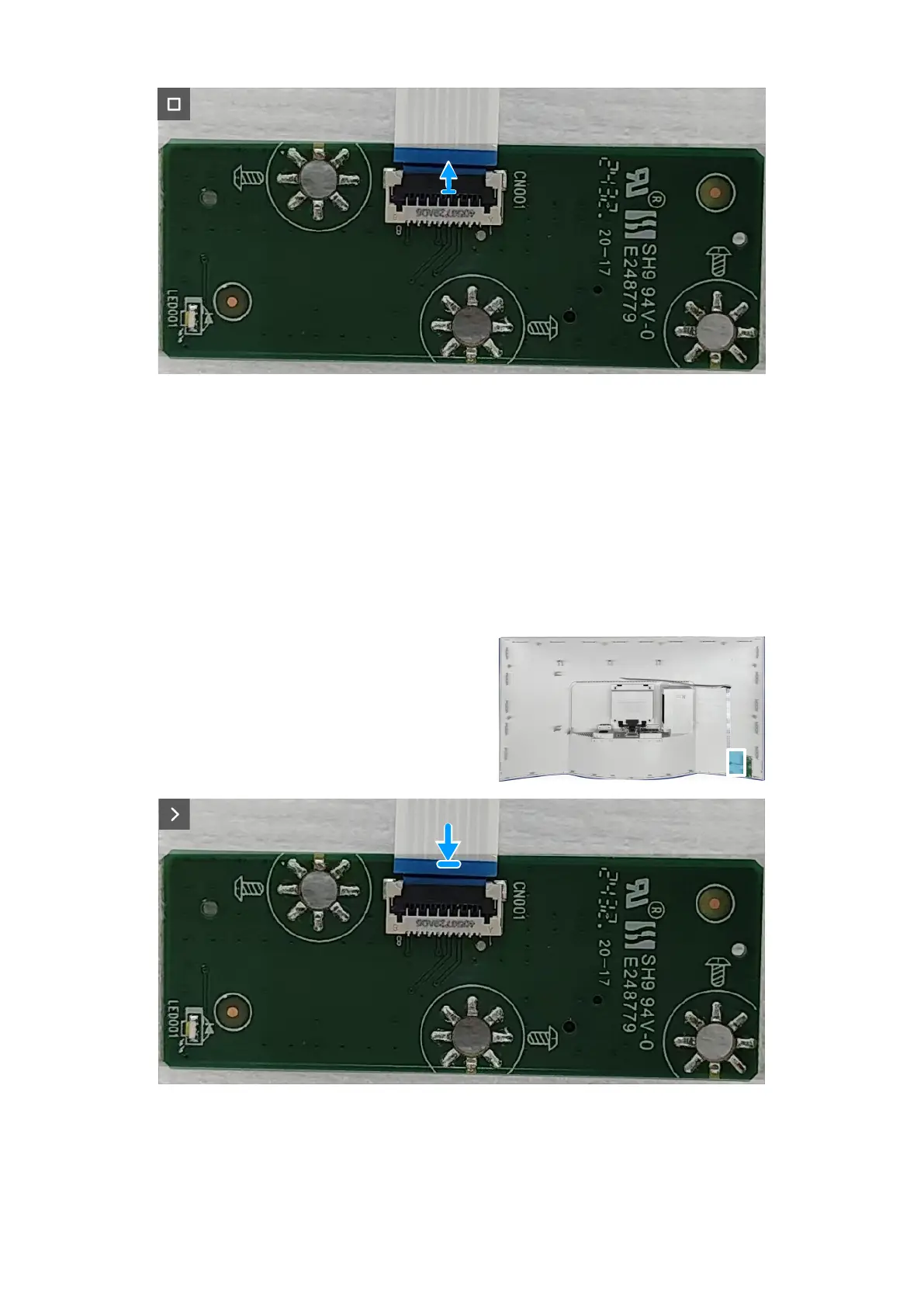

Figure 40. Disconnecting the keypad board cable
Steps
1. Remove the three screws (Q2X2.5) that secure the keypad board to the back cover.
2. Disconnect the keypad board cable from the connector on the keypad board.
Installing the keypad board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About the task
The following image indicates the location of the keypad board and provides a visual representation of the installation procedure.
Figure 41. Connecting the keypad board cable
