Disassembly and reassembly
Middle frame
Removing the middle frame
Prerequisites
1. Follow the procedure in Before working inside your monitor.
2. Remove the stand.
3. Remove the back cover.
4. Remove the speaker.
5. Remove the metal shield.
About this task

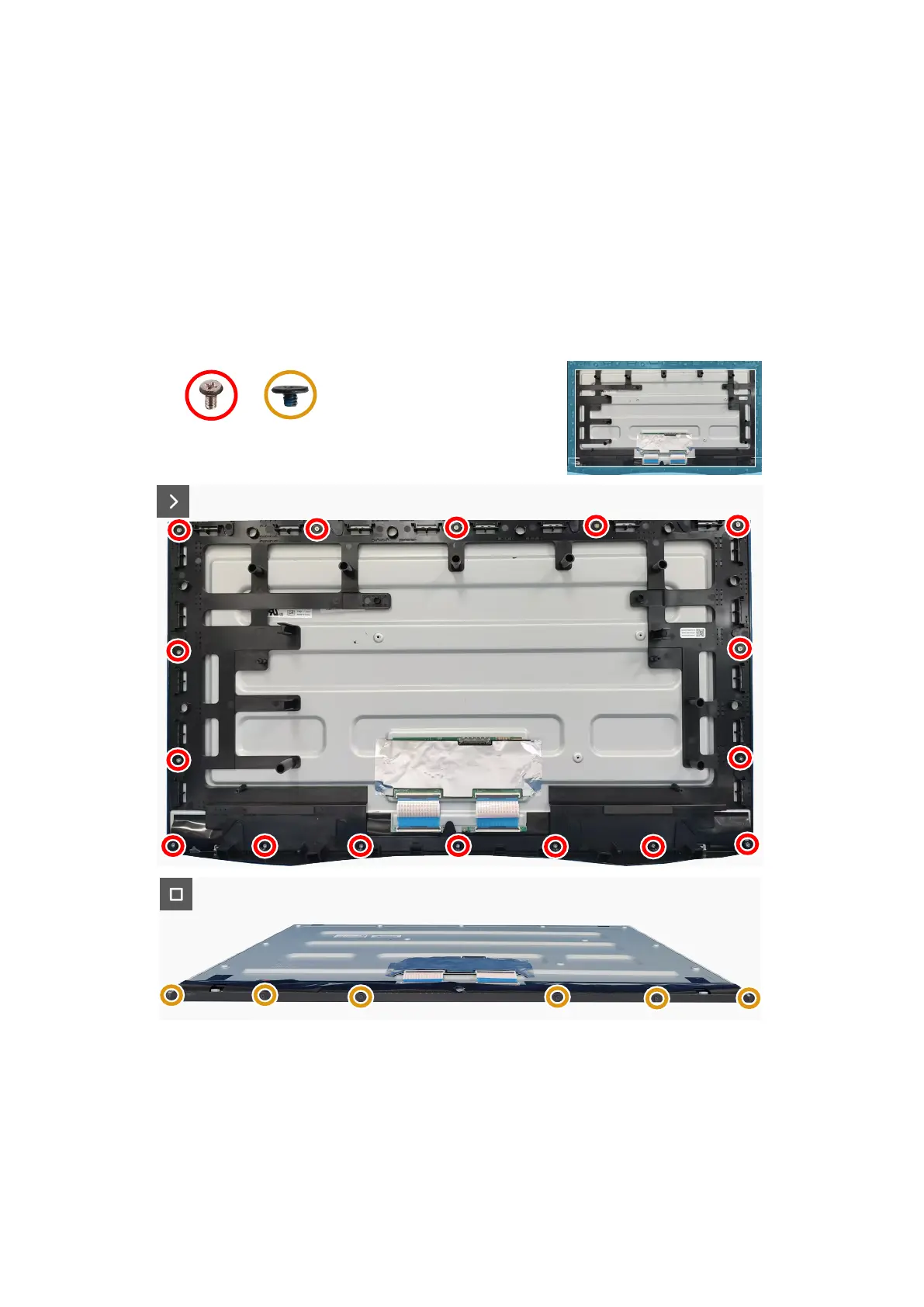

The following image indicates the location of the middle frame and provides a visual representation of the removal procedure.
16x
M3x4
6x
M2x2.0
Figure 37. Removing the screws
