Disassembly and reassembly
Steps
1. Peel back the tapes that secure the lightbar cables and metal shield to the display panel.
2. Disconnect the lightbar cables from the connectors on the display panel.
3. Remove the three screws (M3x4) that secure the metal shield to the display panel.
4. Lift the metal shield partially and disconnect the display cable from the connector on the display panel.
Installing the metal shield
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About the task
The following image indicates the location of the metal shield and provides a visual representation of the installation procedure.

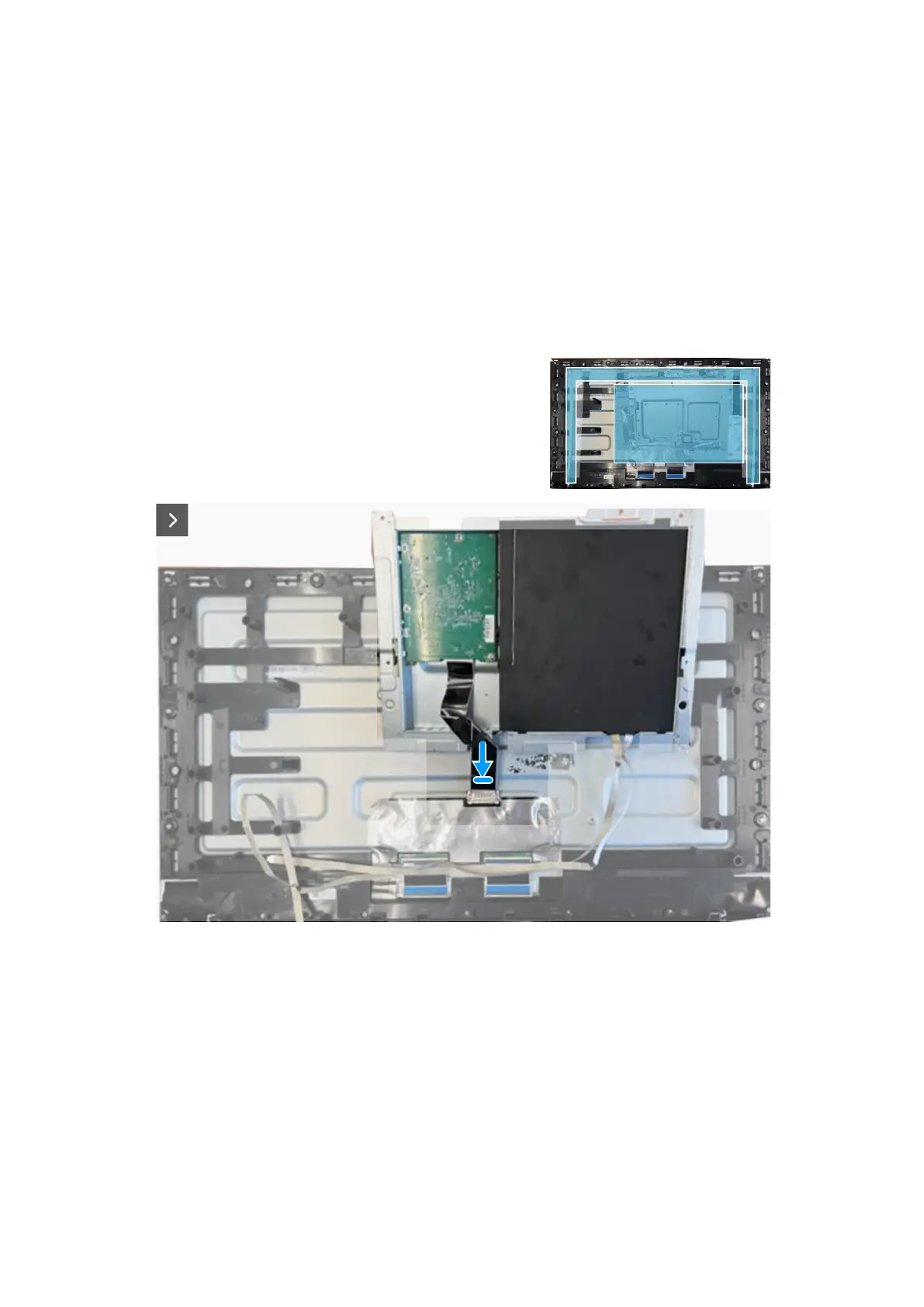

Figure 26. Connecting the display cable
