31
Disassembly and reassembly

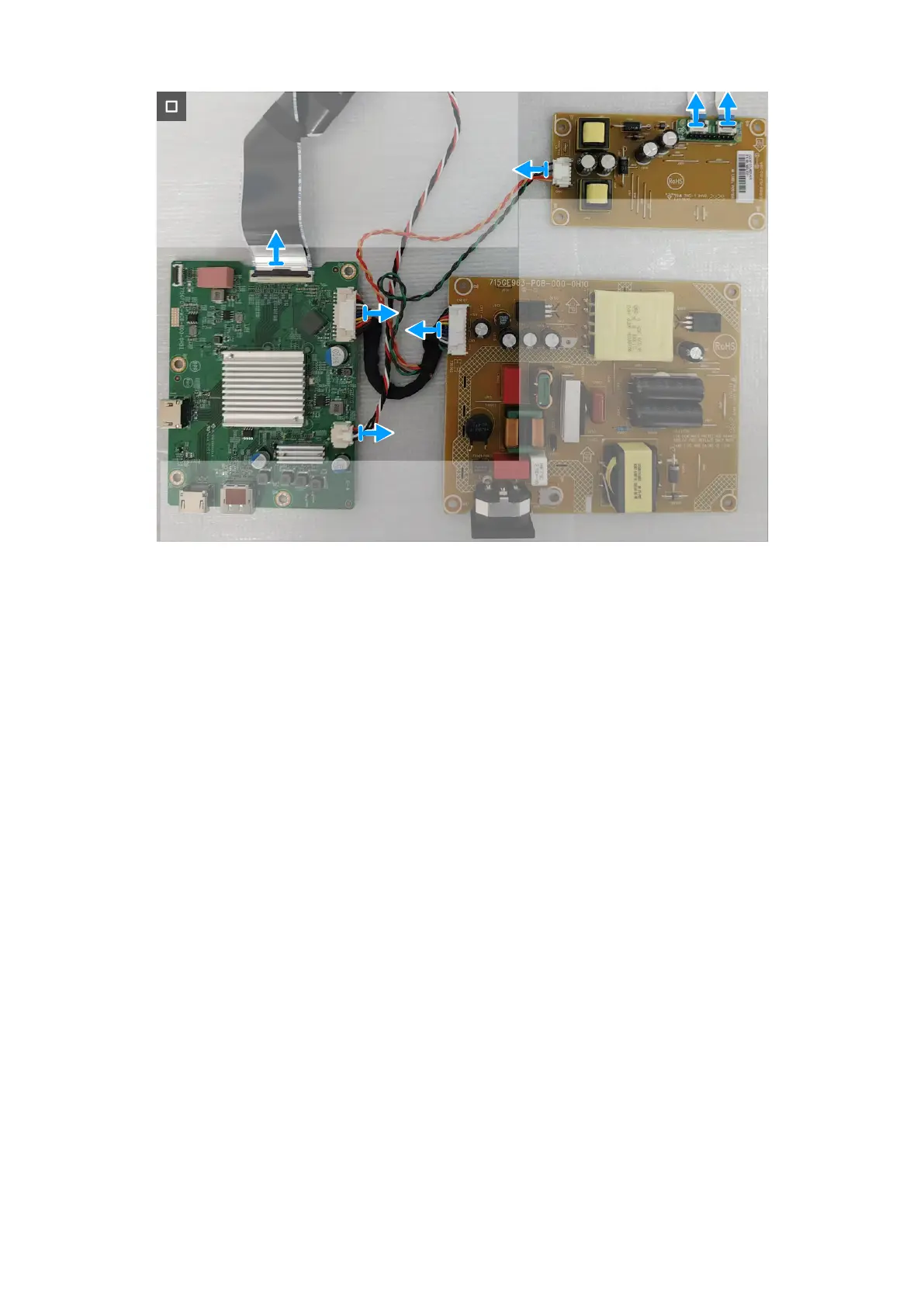

Figure 32. Disconnecting the cables
Steps
1. Remove the Mylar sheet from the power board.
2. Remove the metal shield I/O-cover from the metal shield.
3. Remove the twelve screws (D3x6) and the screw (M4x6) that secures the system board, power board, and converter board to the
metal shield.
4. Disconnect the cables from the connectors on the system board, power board, and converter board.
Installing the system board and power board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About the task
The following image indicates the location of the system board and power board, and provides a visual representation of the
installation procedure.
