30
Disassembly and reassembly

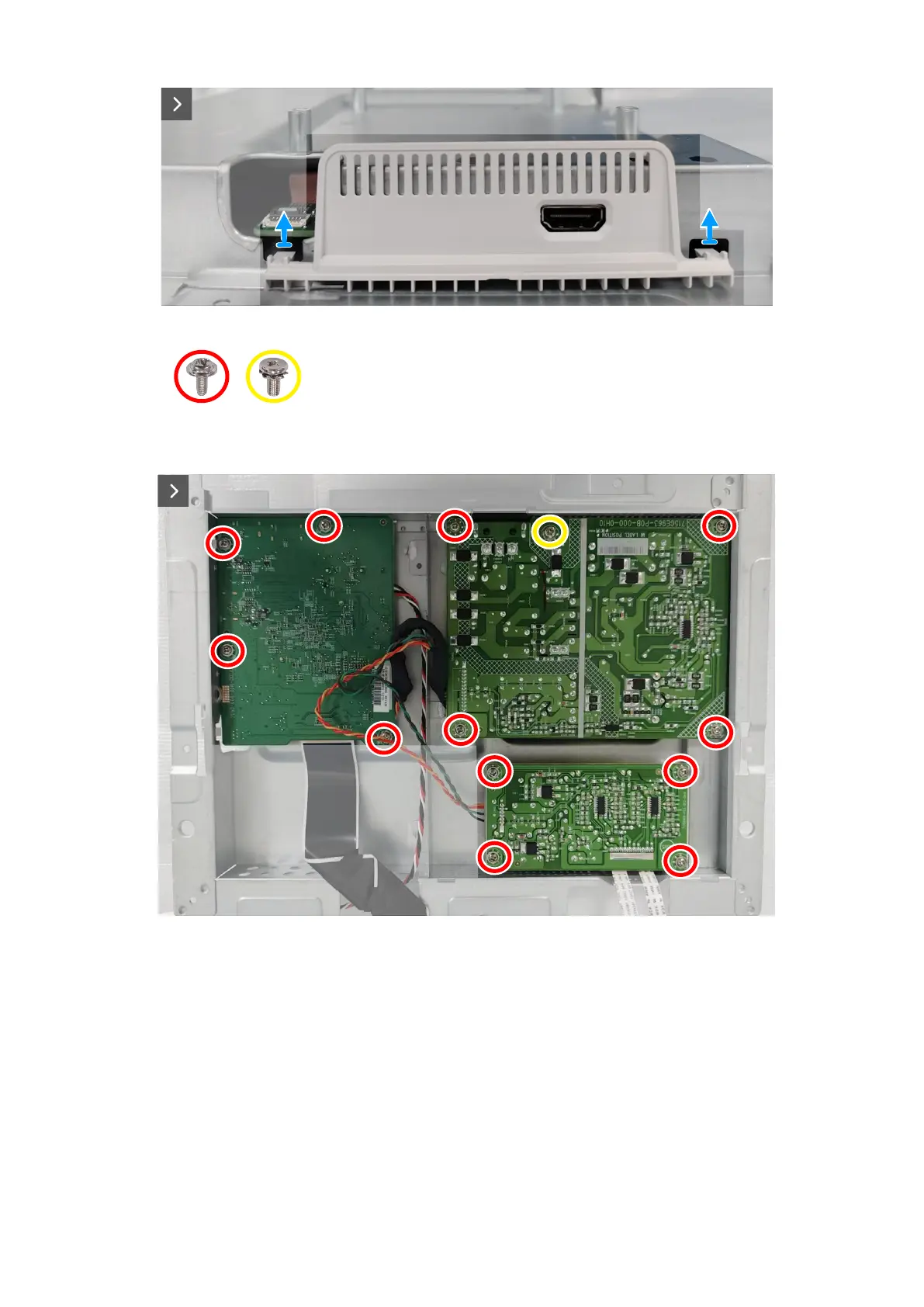

Figure 30. Removing the metal shield I/O-cover
12x
D3x6
1x
M4x6
Figure 31. Removing the screws
