Disassembly and reassembly

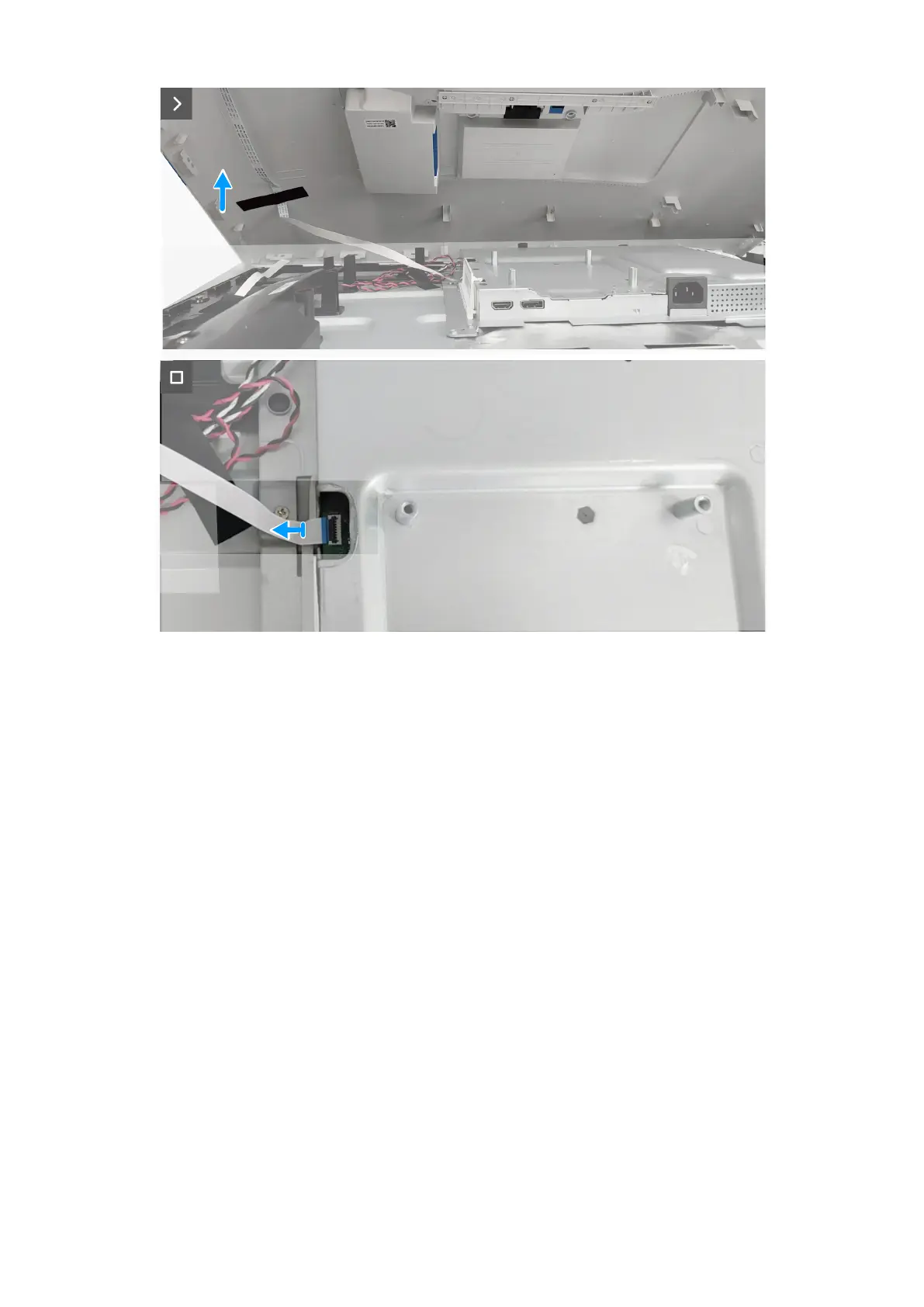

Figure 16. Disconnecting the keypad board cable
Steps
1. Remove the four screws (M4x10) that secure the back cover to the monitor.
2. Using a plastic scribe, pry the back cover starting from the bottom edge of the monitor.
3. Lift the back cover partially from the bottom edge and disconnect the keypad board cable from the connector on the system
board.
Installing the back cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About the task
The following image indicates the location of the back cover and provides a visual representation of the installation procedure.
